SPECIFICATIONS

Application: Material Processing

Brand Name: NONE

Chuck: 3-jaw Chuck

Color: Custom-made

Condition: New

Core Components: Bearing, Motor, Pump, Gear, PLC, Other, Gearbox

Function: Machining Metal

High-concerned chemical: None

Keyword: Cnc Wheel Repair Machine

Machine Type: Flat Bed

Marketing Type: Hot Product 2023

Max. Spindle Speed (r.p.m): 3000 r.p.m

Max. Turned Length (mm): 720

Model: AWR28L

Name: Metal CNC Lathe

Origin: Mainland China

Precision: High Precision

Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, Australia

Spindle Bore(mm): 60mm

System: GSK FANUC SIEMENS

Toolpost Brand: Hongda

Warranty of core components: 1 Year

Year: 2023

brand name: WMTCNC

cnc control system: GSK

dimension(l*w*h): 1900*1300*1600mm

key selling points: High-Accuracy

machinery test report: Provided

machining capacity: Medium Duty

max. length of workpiece (mm): 840mm

max. weight of workpiece(kg): 500

model number: AWR28L

no. of spindles: Single

number of axes: 2

place of origin: Anhui, China

positioning accuracy (mm): 0.1 mm

repeatability (x/y/z) (mm): 0.007mm

spindle motor power(kw): 7.5kw

structure: Slant Bed Lathe

tool post stations: 4

travel (x axis)(mm): 365 mm

travel (z axis)(mm): 200 mm

type: Horizontal

video outgoing-inspection: Provided

voltage: 220v, 380v, 400v or Customized

warranty: 1 Year

weight: 1300

width of bed (mm): 400 mm

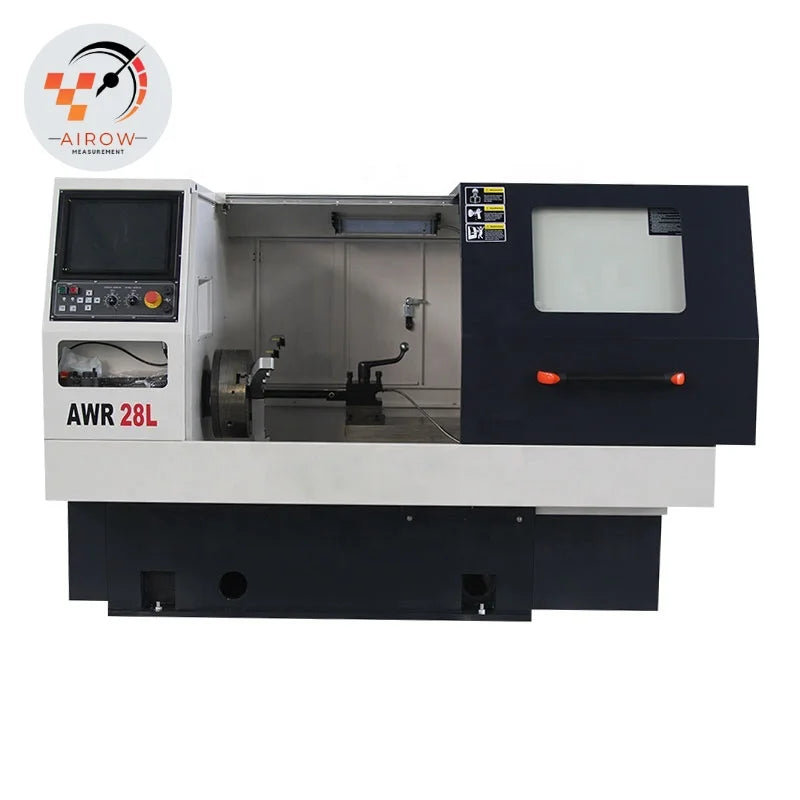

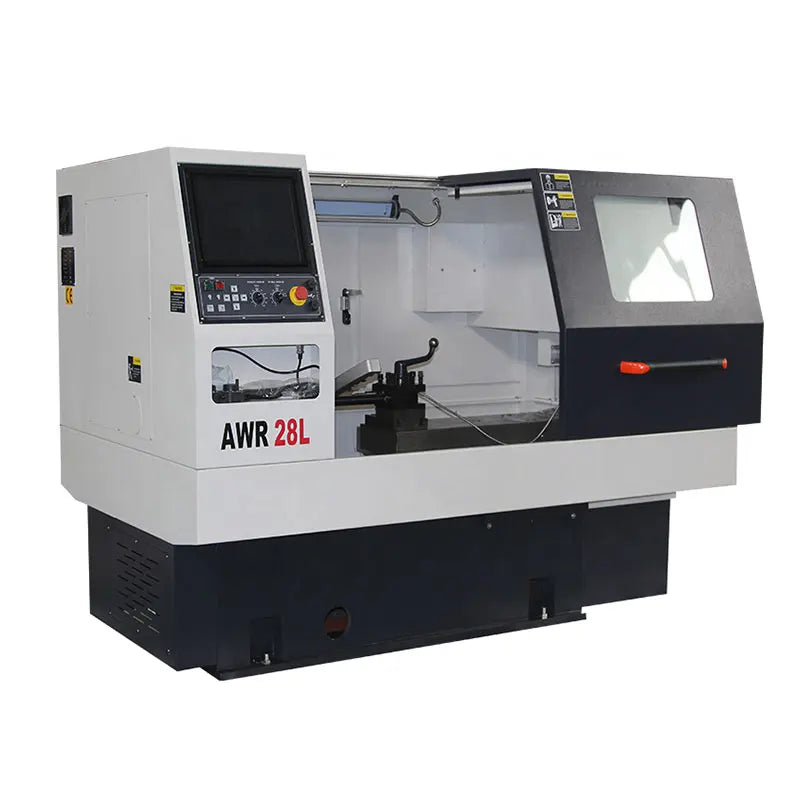

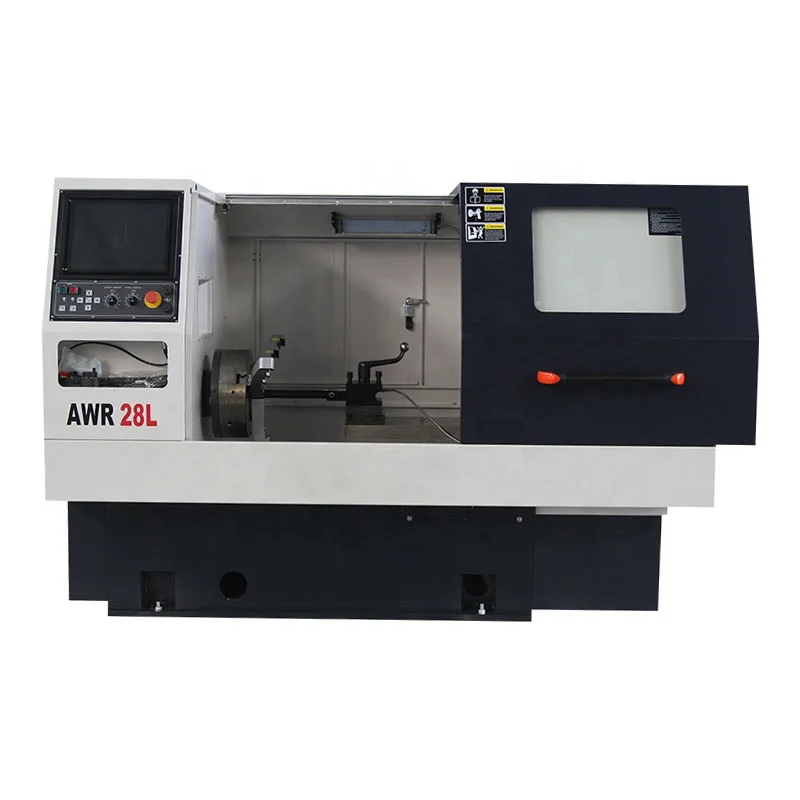

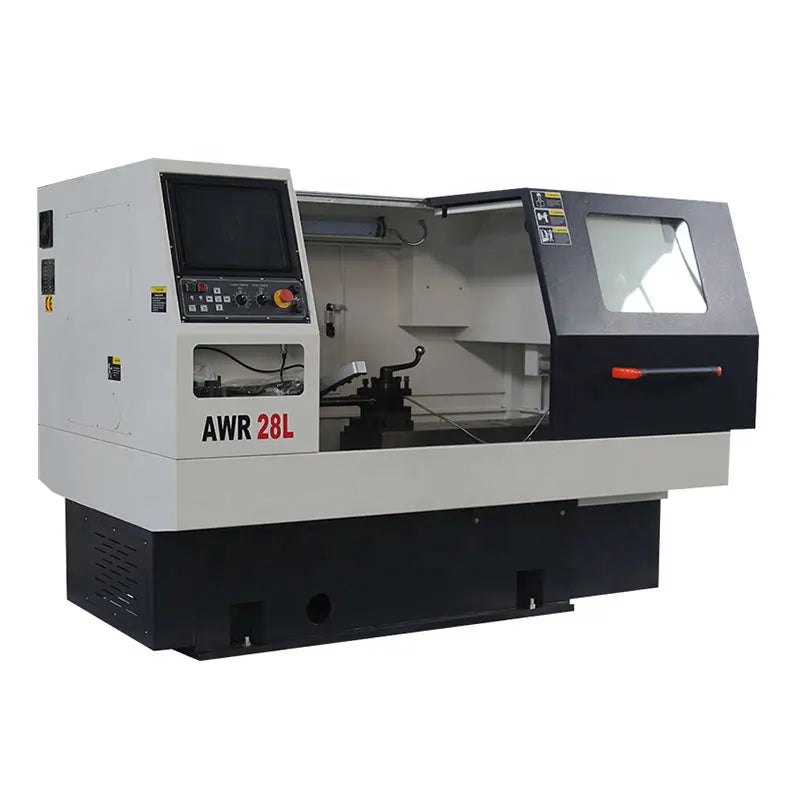

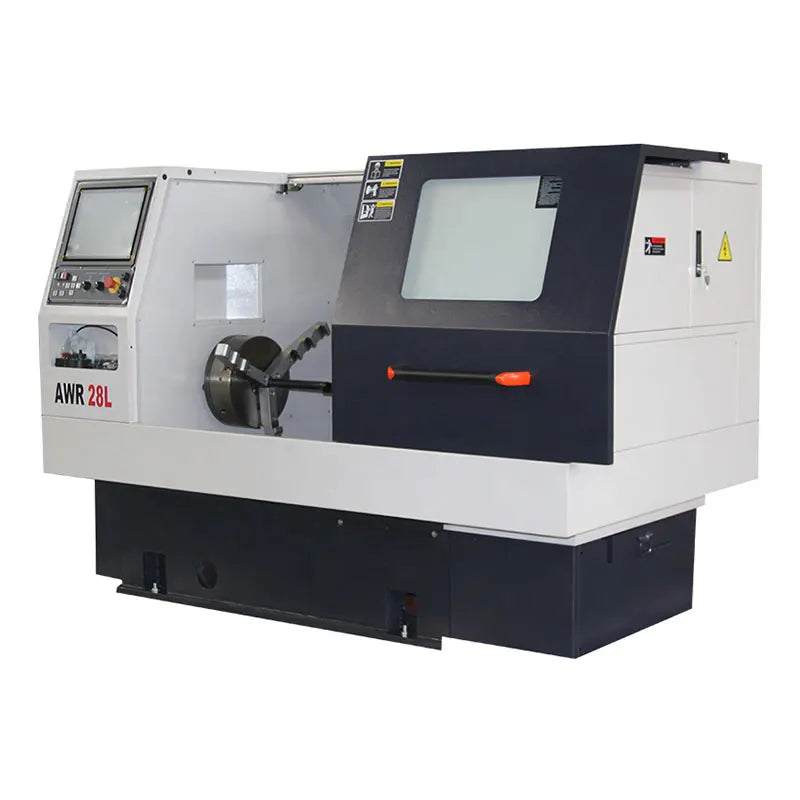

Product Description

Main Features:

Wheel cutting from 14’’ to 28’’ Light weight compact size to save your workshop place. Good Choice for mobile repairing, light and small15’’ Touchscreen controller ( no need to transfer data with USB) HIWIN liner guide way keep high precision.

Specification	AWR28L
Max. Swing Diameter Over Bed	840
Max.Wheel Capacity	28″
Chuck Size	325
Axis Travel	X : 365; Z : 200
Positioning Accuracy for X/Z	0.01
Re-precision Accuracy for X/Z	X 0.007, Z 0.008
Spindle Speed	0-3000
Spindle Taper	5#
Spindle Bore	60
Tool Number	4
Rapid Feeding	10
Main Motor power	4 kw 380V 50HZ or as required
Overall Dimension (L×W×H )	1900*1300*1600
Weight	1300

Company Profile

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?

A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?

A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What's the MOQ?

A4: One set only.

Q5: How about your quality?

A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?

A6: Yes, we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?

A7: Yes, we can design and manufacture according to your specific requirements.
