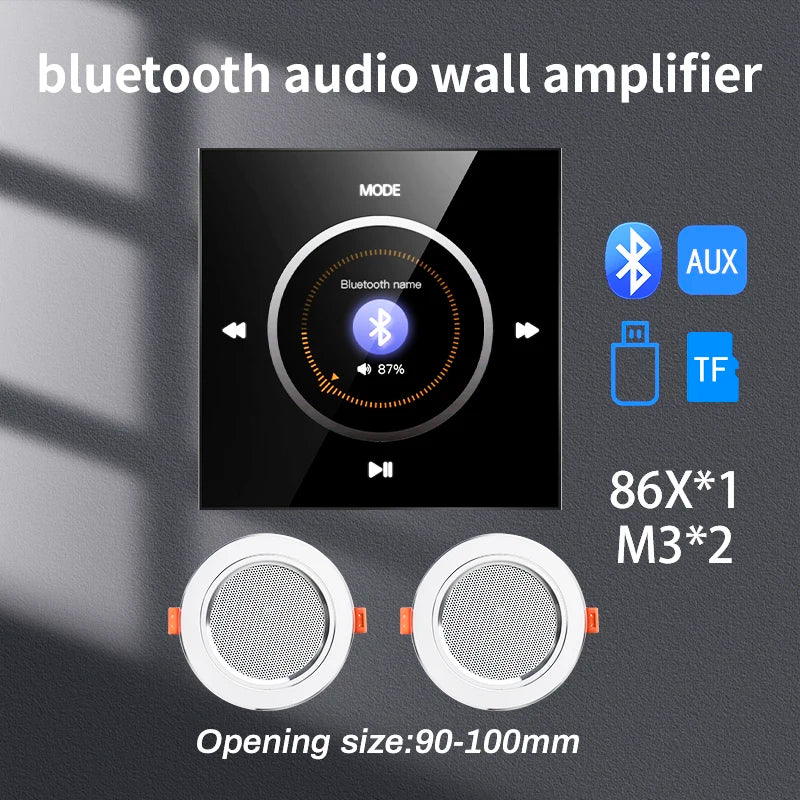

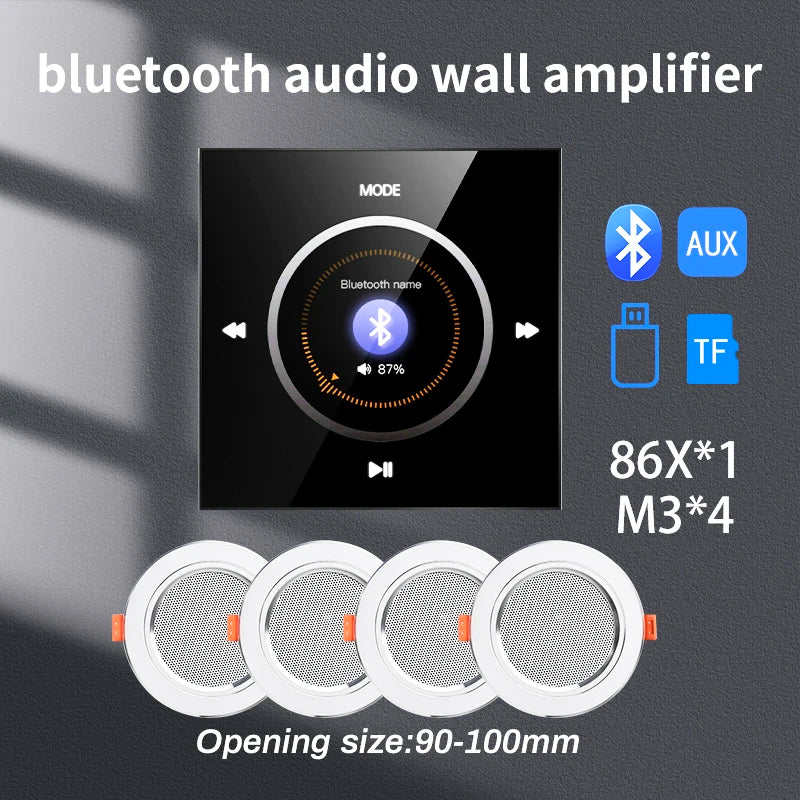

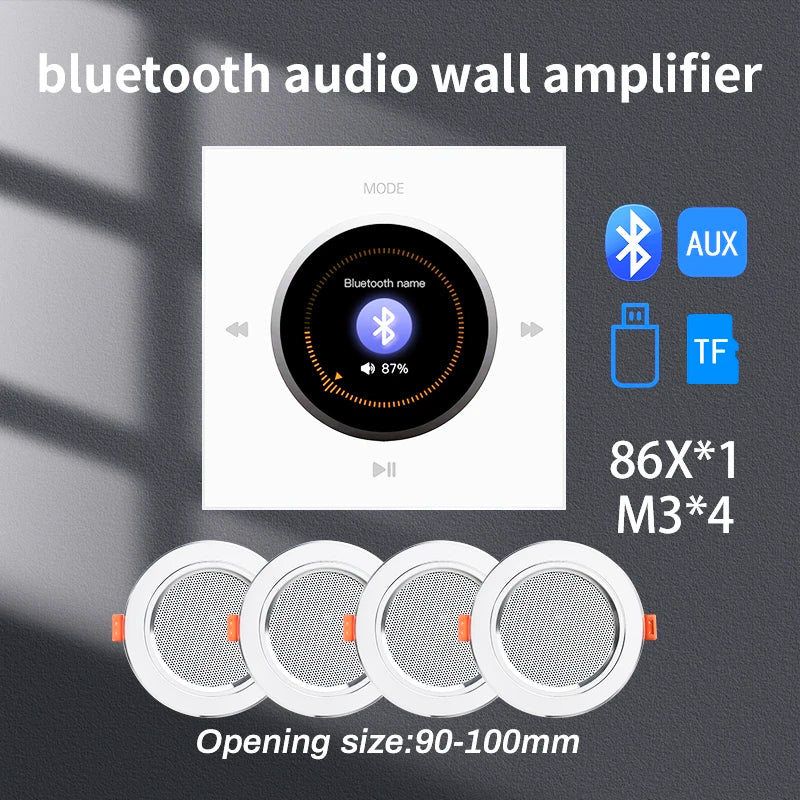

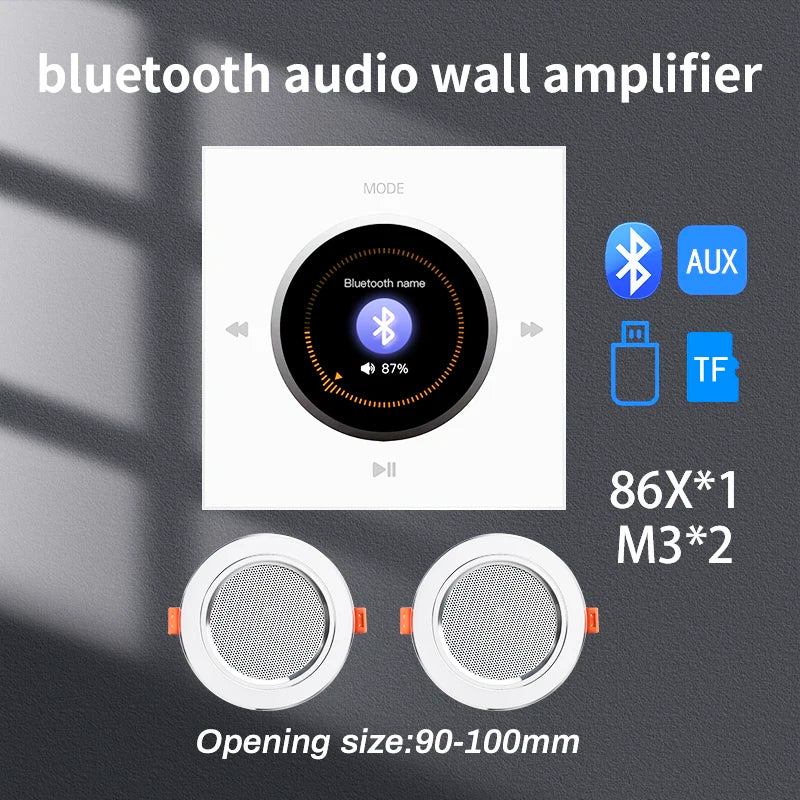

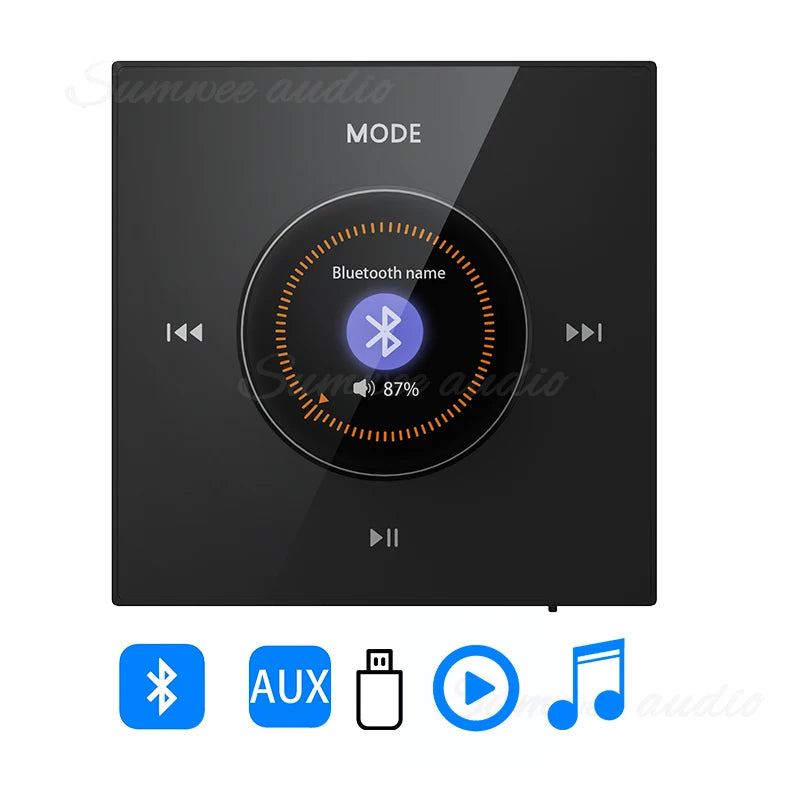

86 Background Music system Bluetooth-compatible HiFi Home Theater Stereo Sound Mini Wall Amplifier Panel M3 Ceiling Speaker sets
SCORE BIG SALE
£74.00
↓ Save £97.00
£171.00
SPECIFICATIONS
Brand Name: YINLEENCL
Certification: CE,RoHS
Channels: 2 (2.0)
Choice: yes
High-concerned chemical: None
Impedance: 4-8Ohm
Maximum Power Per Channel: 25 W
Model Number: 86X
Origin: Mainland China
Output Power: 2*25W or 4*20W
Package: Yes
Power Supply Mode: AC 110-250VC
Product Type: Home Amplifier
Product size: 86*86*10mm
SNR: 98dB
Support: USB, SD card
Support Bluetooth: Yes
YINLEENCL Model: 86X
semi_Choice: yes
SPECIFICATIONS:

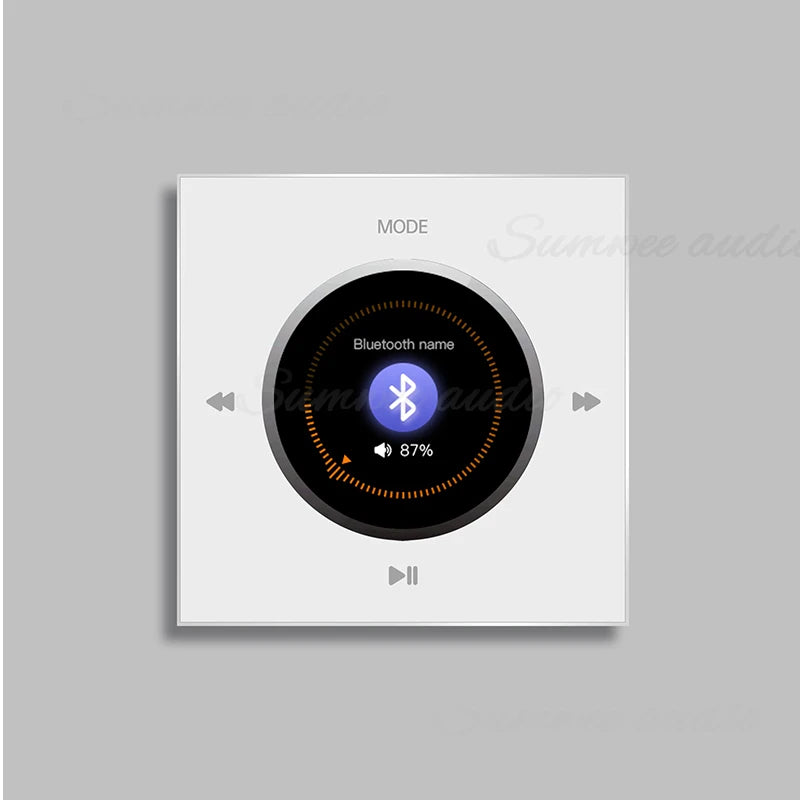

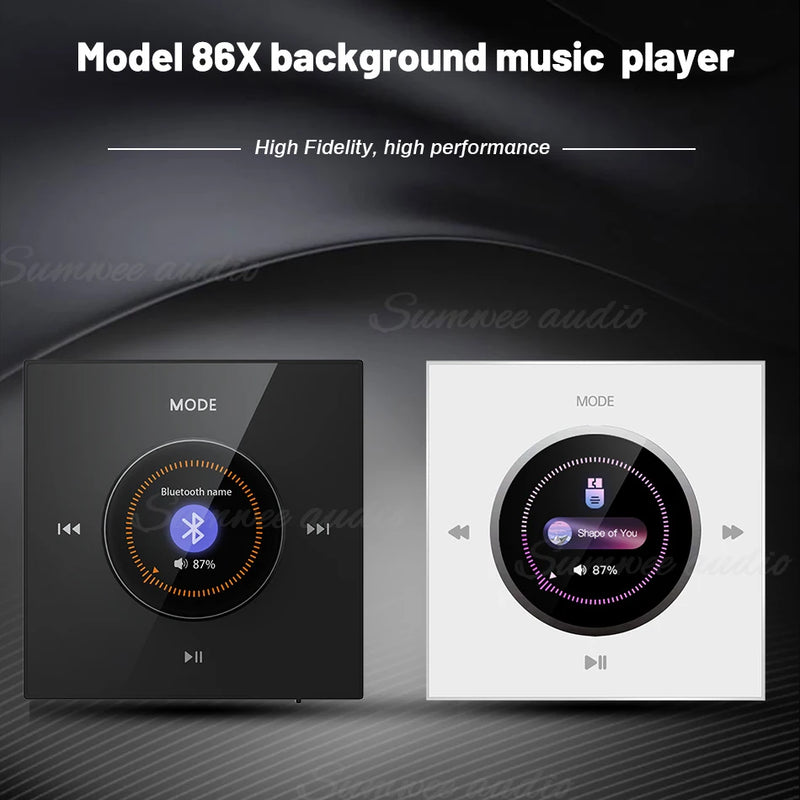

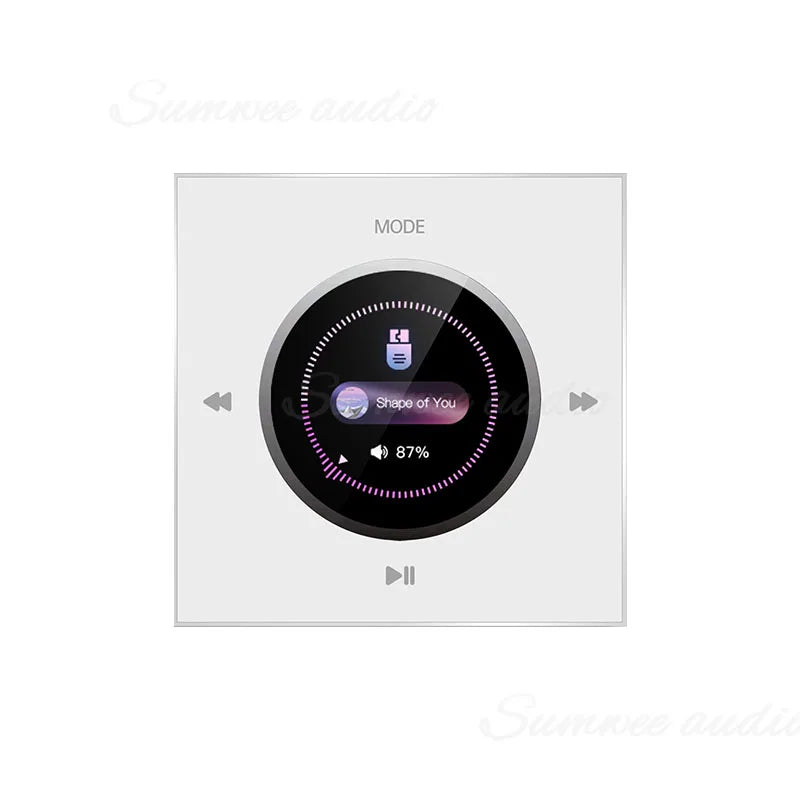

Smart Home Audio Mini Bluetooth Wall Amplifier Hardware Parameters:
● Power: AC110V-250V(50HZ)
● Impedance: 4-8Ω
● Output Power: 2x25W/4x20W
● Audio S/N Ratio: ≥98dB
● Frequency Response: 20-20KHz
● Product Size: 86*86*10mm
● Installation: 86 Standard cable box
M3 ceiling speaker
Specification:
● 3'' Fashion Ceiling Speaker
● impedance: 4Ω
● Power: 10W
● Sensitivity: 89dB
● Installation Cutout Size: Φ90-100mm
● Product Size: Φ118x76mm
FUNCTIONS:

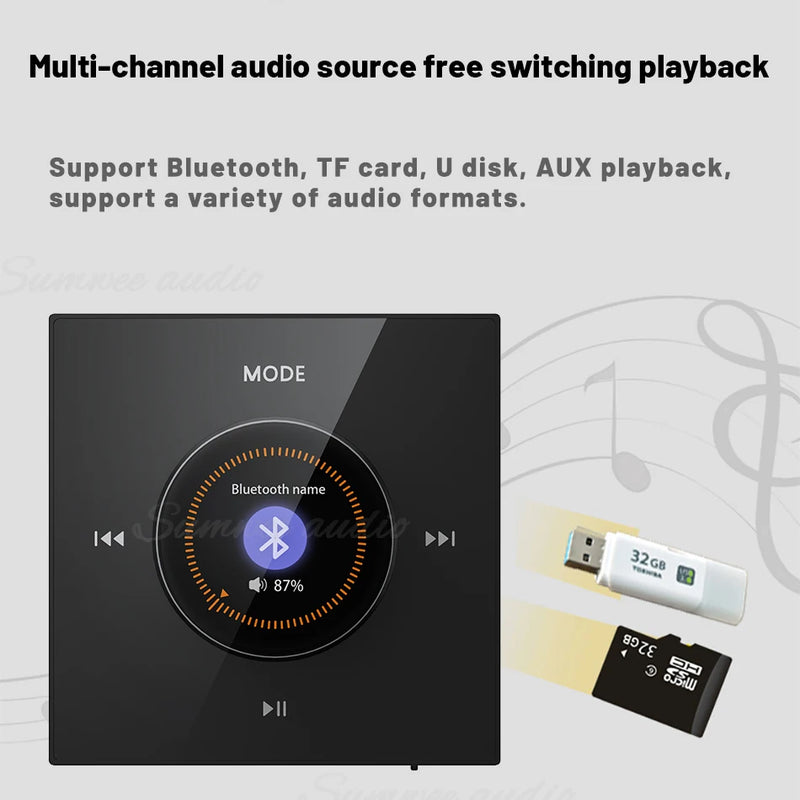

1. Audio format: Support MP3, WAV, APE etc.
2. Bluetooth function: Support pairing of external Bluetooth devices such as mobile phones for audio playback.
3. External sound input: Support external sound source input to the machine, amplified output.
4. Memory card function: external TF card, support 32GB TF card.
5. USB function: Connect USB (support 32GB) to read music, and easily set up family background music space.

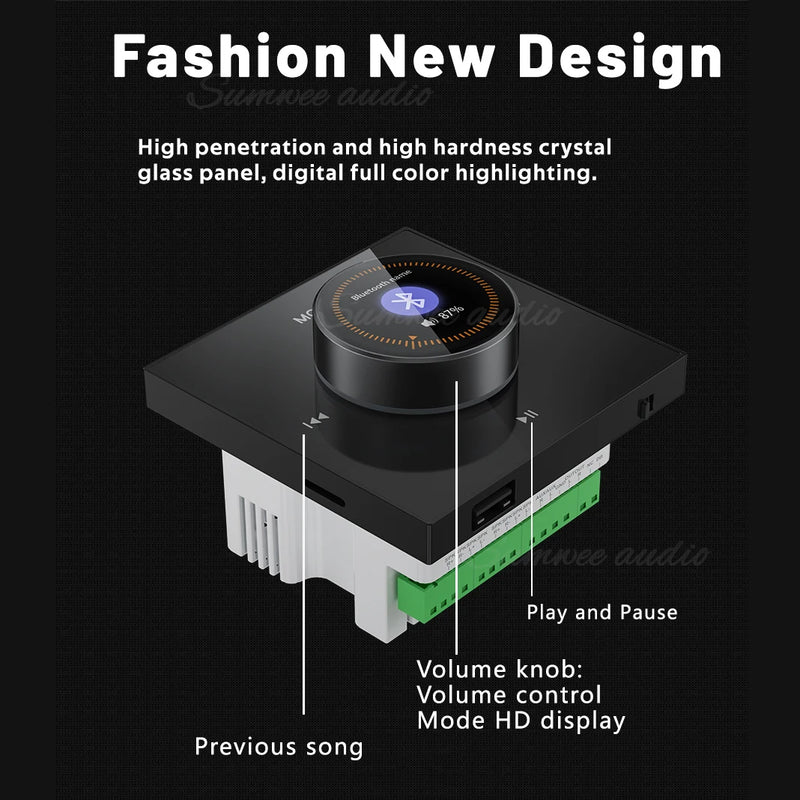

6. Volume adjustment: Knob to adjust sound，
7. Power-off memory function: memorize the state played before the last shutdown.
PACKAGE INCLUDED:
1 x wall amplifier device
1 x remote control
1 x mounted box, bracket and screw
NOTES:
● The amplifier can't support FM function, Note please
● For this device, can connect the maximum 4pcs 4-8ohm RMS 25W speakers and 8ohm (it's the best impedance).
① Don't connect exceed 25W speaker and it should be 4-8ohm. If your speaker exceed 4-8ohm 25Watts, the amplifier will be burnt out.
● The amplifier can't support FM function, Note please
● For this device, can connect the maximum 4pcs 4-8ohm RMS 25W speakers and 8ohm (it's the best impedance).
① Don't connect exceed 25W speaker and it should be 4-8ohm. If your speaker exceed 4-8ohm 25Watts, the amplifier will be burnt out.
② Use exceed 150-core pure copper speaker cable to connect speakers.
③ Use power cable cord as the amplifier request (two cord).
● If there is any questions about the product or you need our technical support, please contact us.
③ Use power cable cord as the amplifier request (two cord).
● If there is any questions about the product or you need our technical support, please contact us.

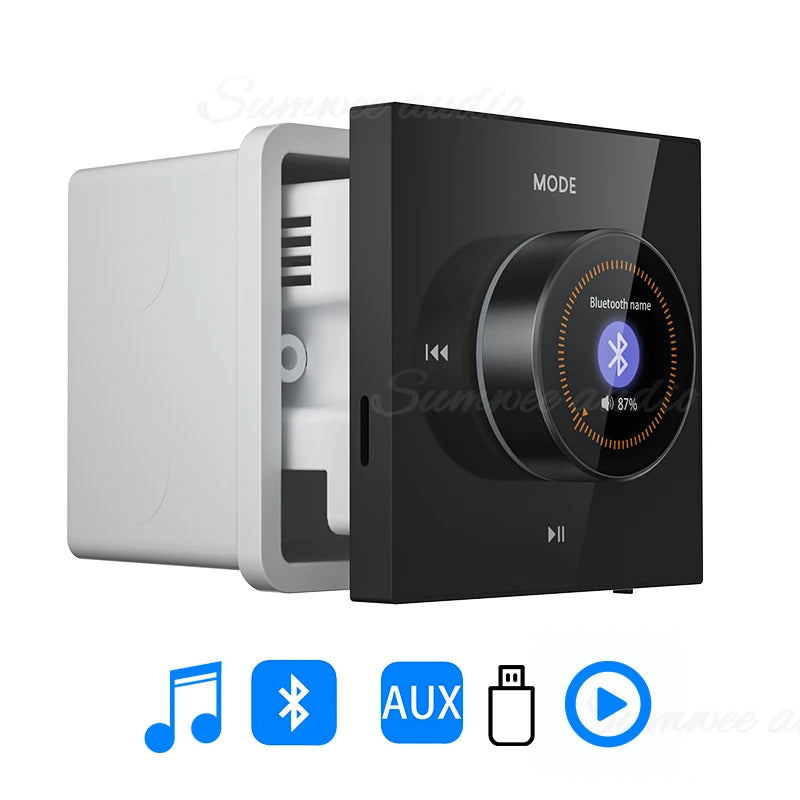

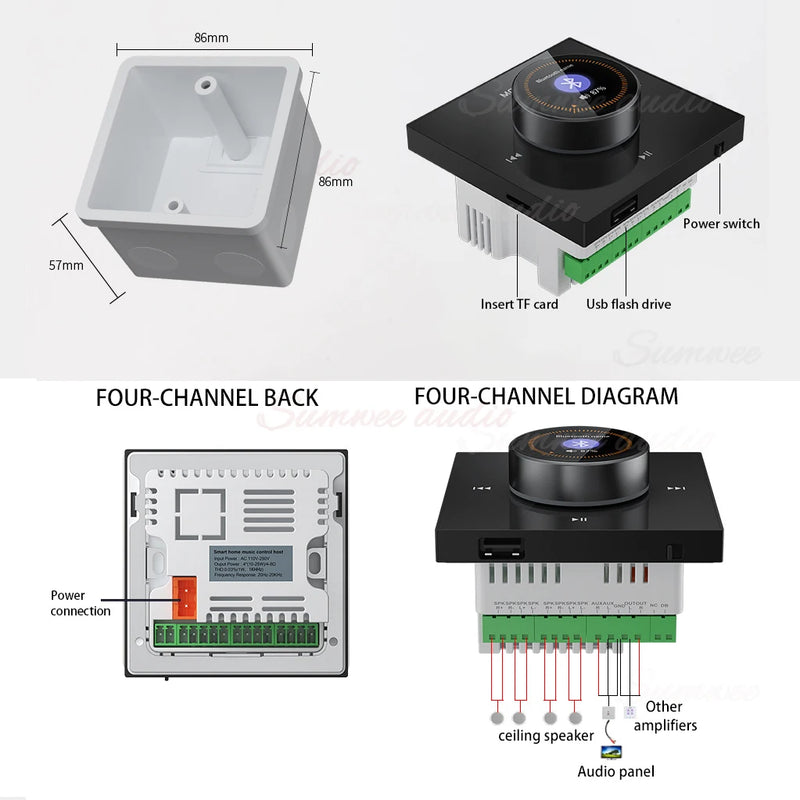

Host installation and removal instructions:
1.Provide 86 bottom box bottom, bottom box depth 57MM.
2. Wire used in this product: stranded copper wire, coaxial cable, audio cable, audio cable.
3. Please consult the supplier when installing this machine.
4. Do not repair the machine without authorization. If you need to repair it, please consult the supplier, by professionals to repair.
