SPECIFICATIONS

203036045 Model: F5860DJWBLABTX

Brand Name: GAMWATER

Certification: CE,FCC

High-concerned chemical: None

Lens (mm): 5.5mm

Model Number: F5860DJWBLABTX

Origin: Mainland China

Plug Type: EU Plug

Screen Type: 9inch

Smart home platform: NONE

Wire Type: Hard Wire

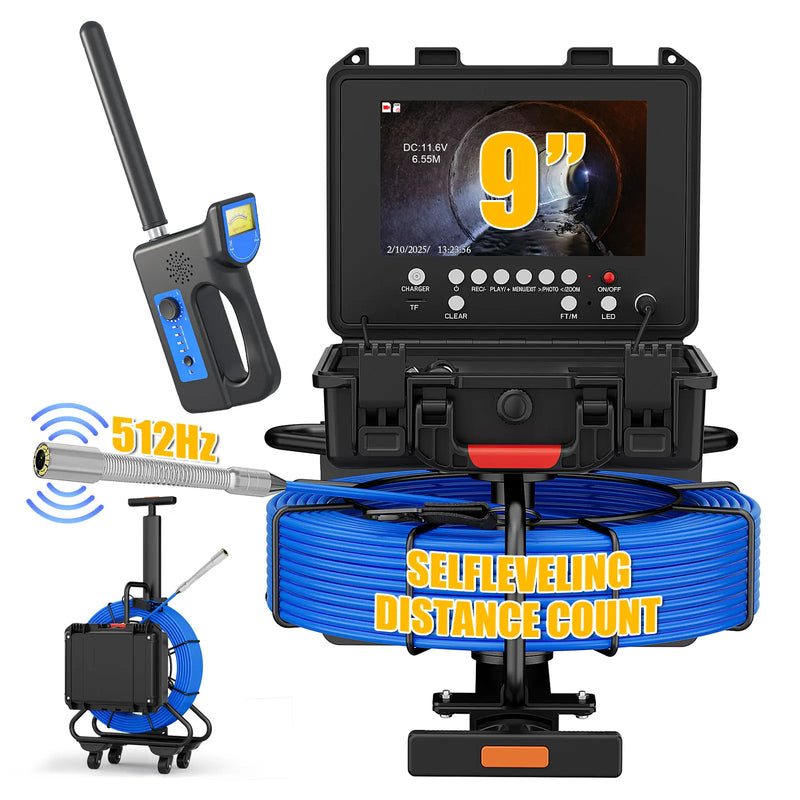

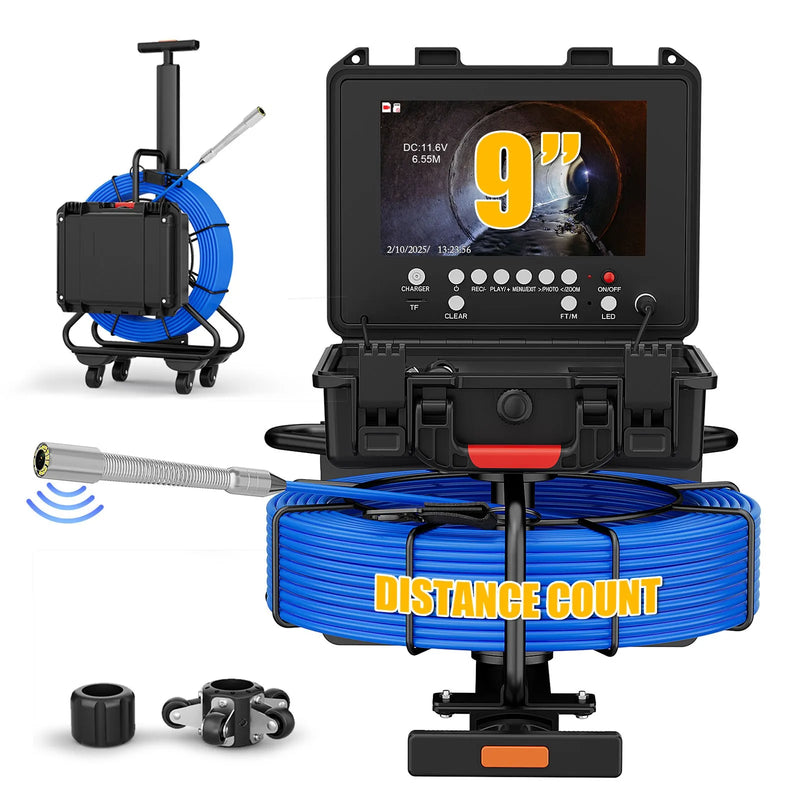

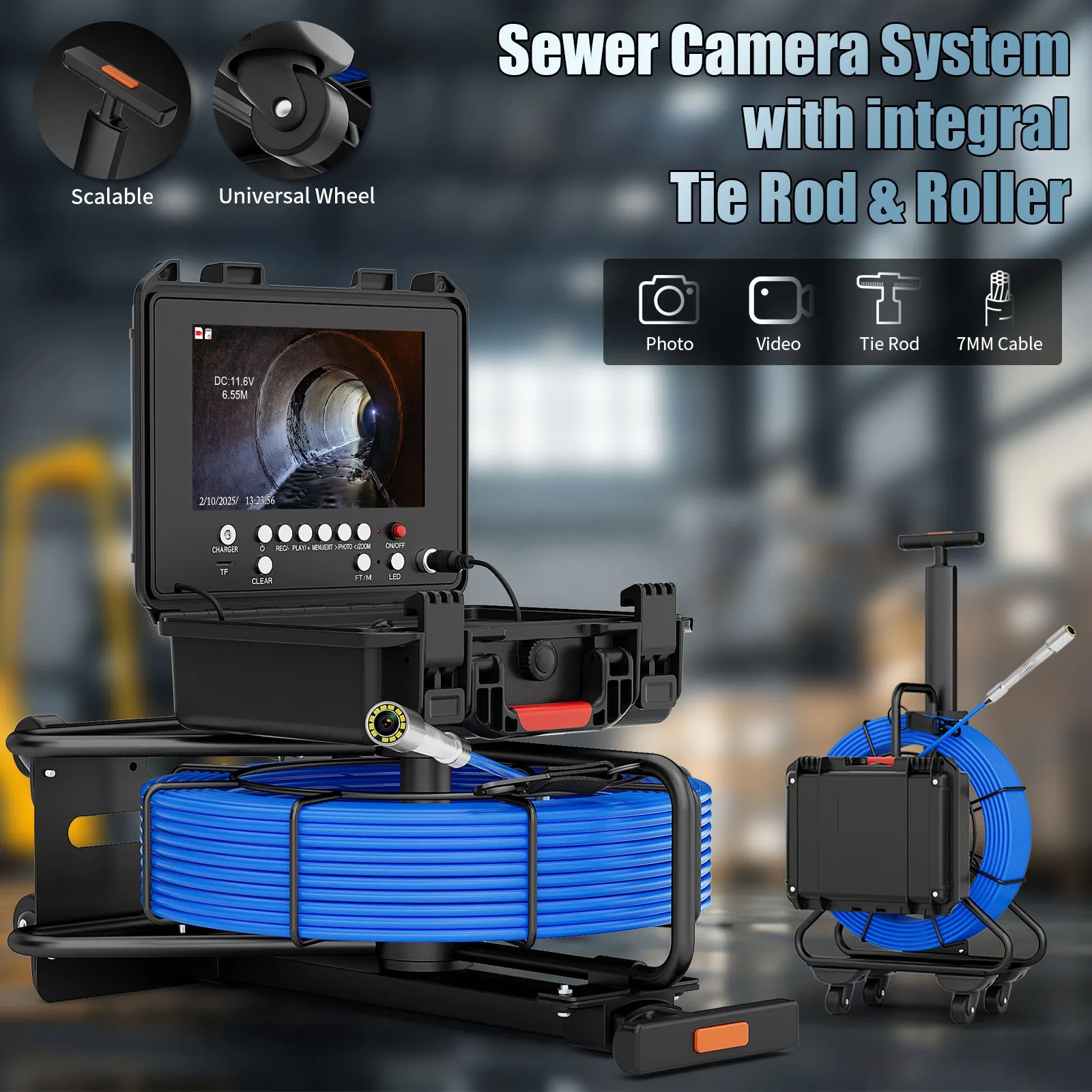

Pipe Inspection Camera with Trolley Pull Rod 7mm Diameter IP68 Drain Sewer Pipeline Video Industrial Endoscope 512HZ Self-leveling Meter Counter 9" DVR

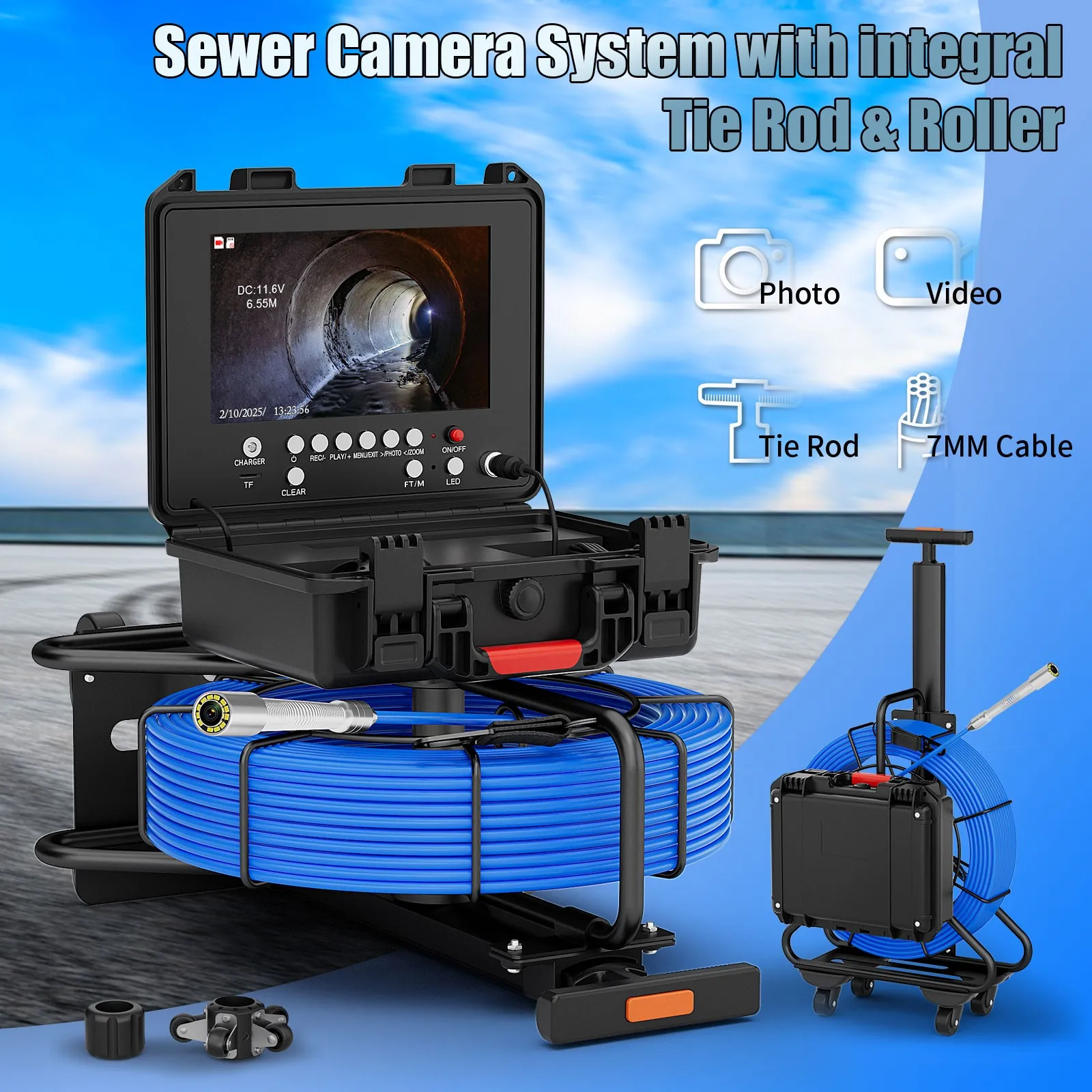

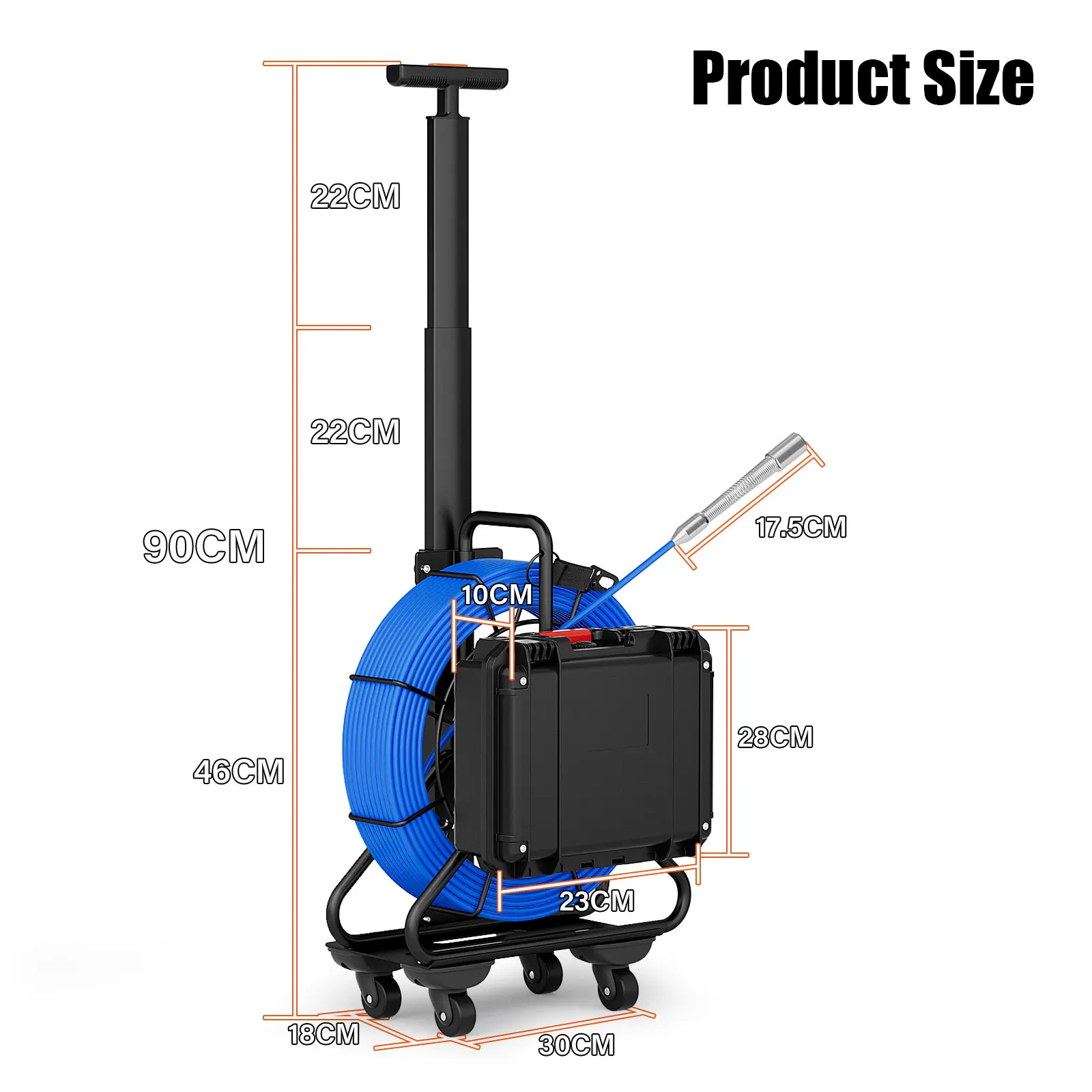

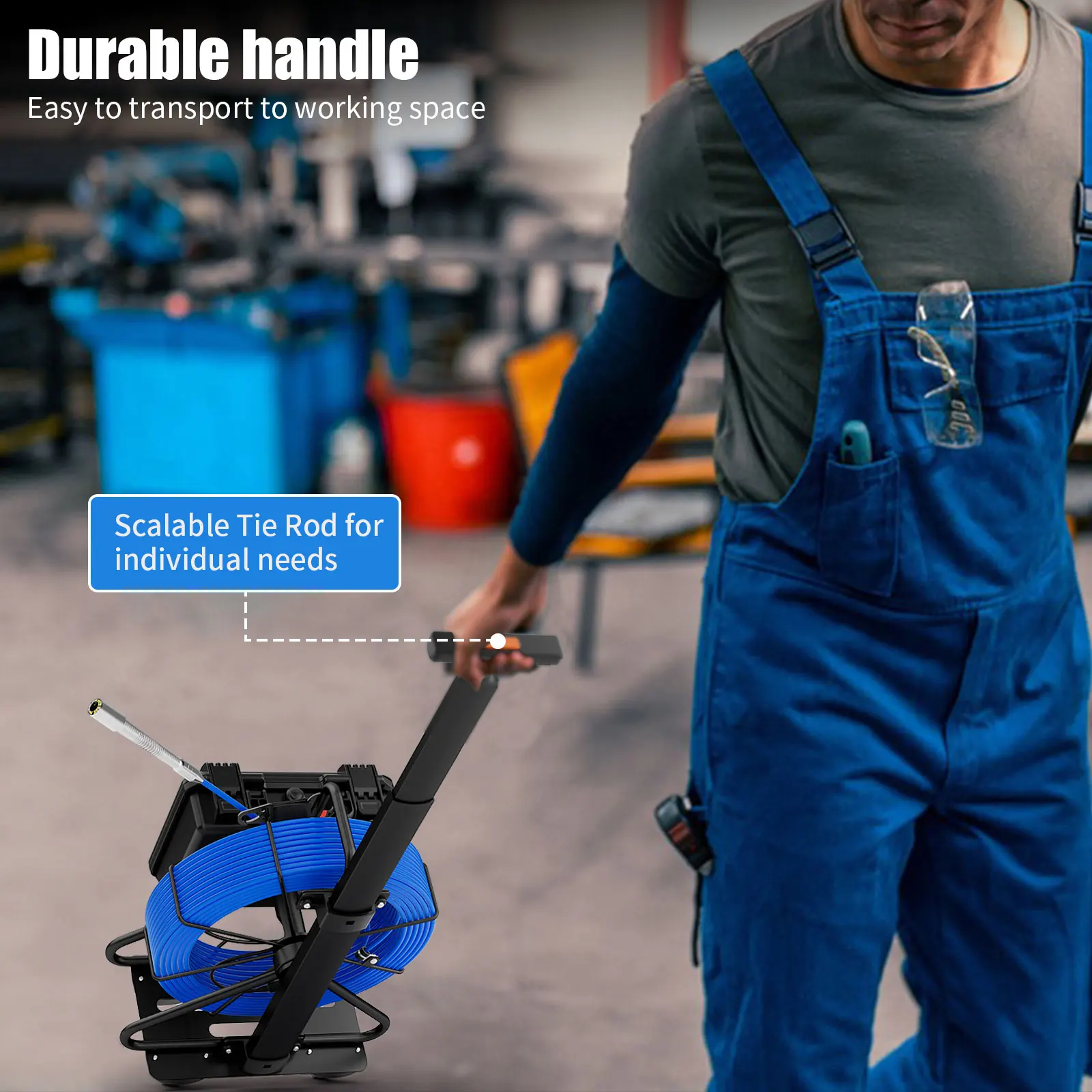

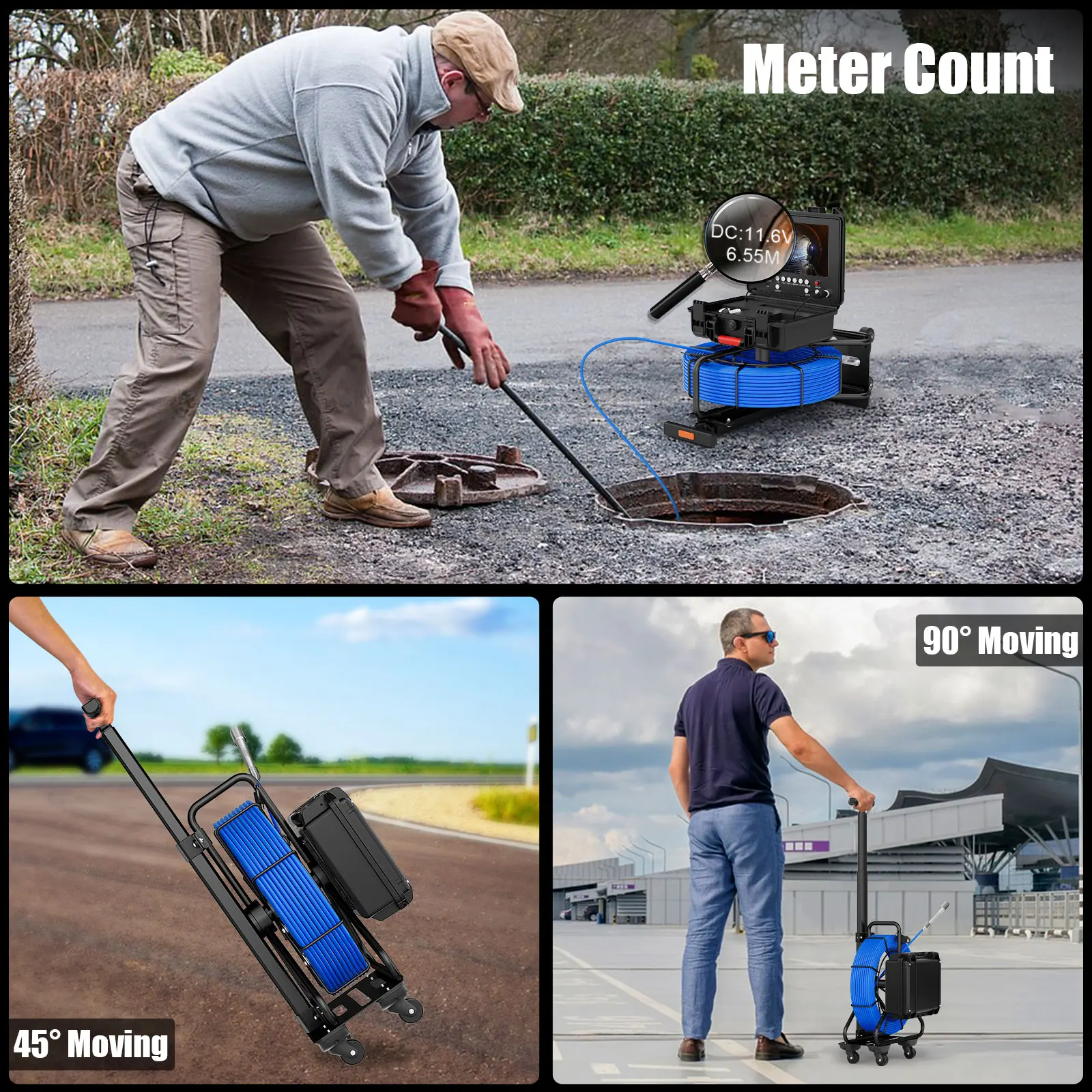

Portable Trolley Pull Rod And METER COUNTER:

Portable Trolley Pull Rod and High-strength Cable: The sewer camera with trolley pull rod, easy to carry with. High-strength and flexible push rod cable plumbing camera has a fiberglass push rod cable ,which is industrial standard, rigged and flexible, ideal for any workspace.Simultaneous display/cleared Metric and Feet.

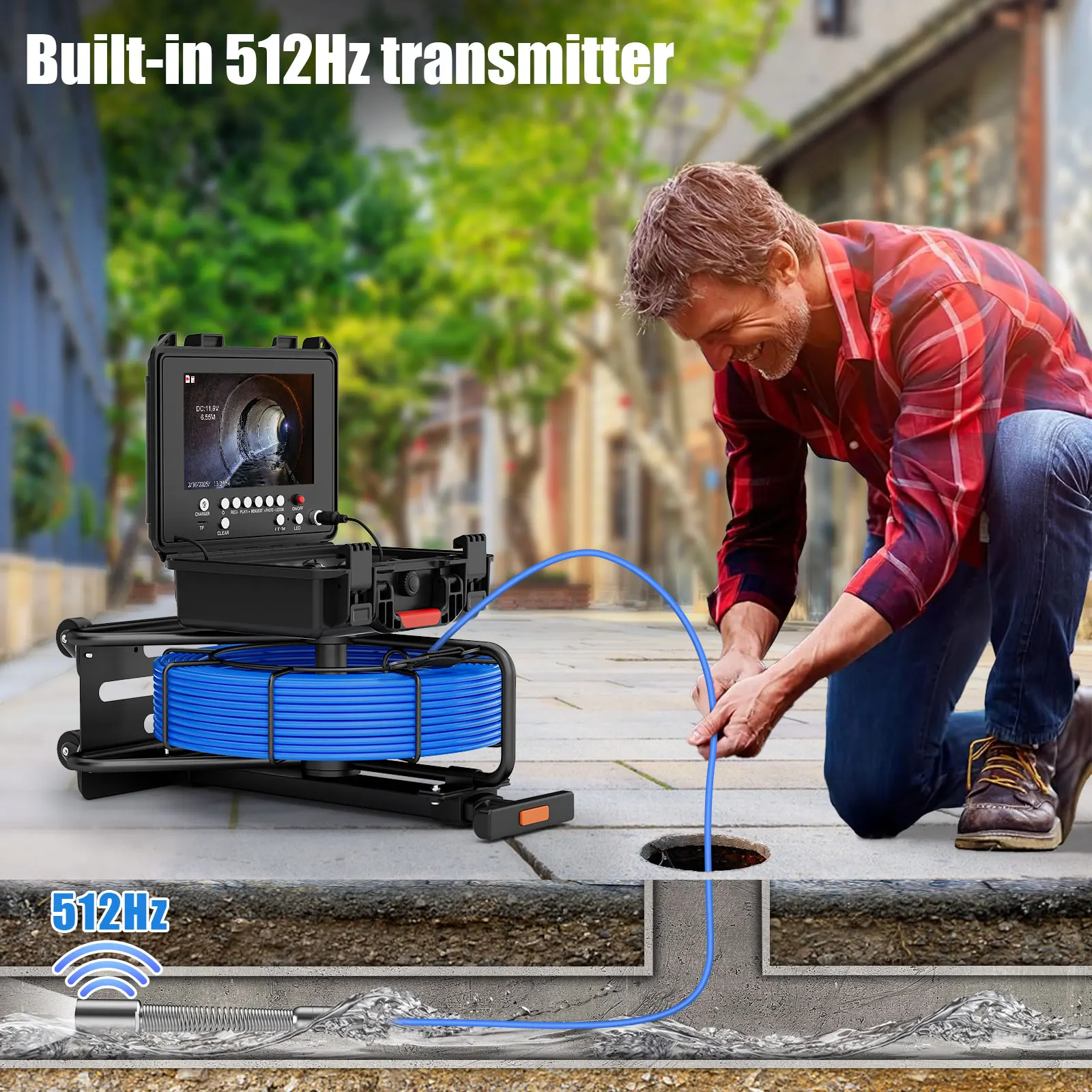

512HZ  TRANSMITTER And Self-Leveling Camera:

This endoscope camera has a built-in 512 hertz transmitter that helps to easily detect any blockage or area of interest.    This greatly helps save time from having to dig and locate the problem.   The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmitter’sposition underground.    （Locator Receiver is Optional）

Video + Audio + 5X Image Enlarge:

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,32GB TF card included,it is avialiable to view live video and save video recording and photos and audio record.  You can record the inspections and playback via the pipe system.     （DVR Edition Video Format :AVI  Photo format :JPG)+ZOOM to zoom in or zoom out 0-5 times

MONITOR&CABLE：

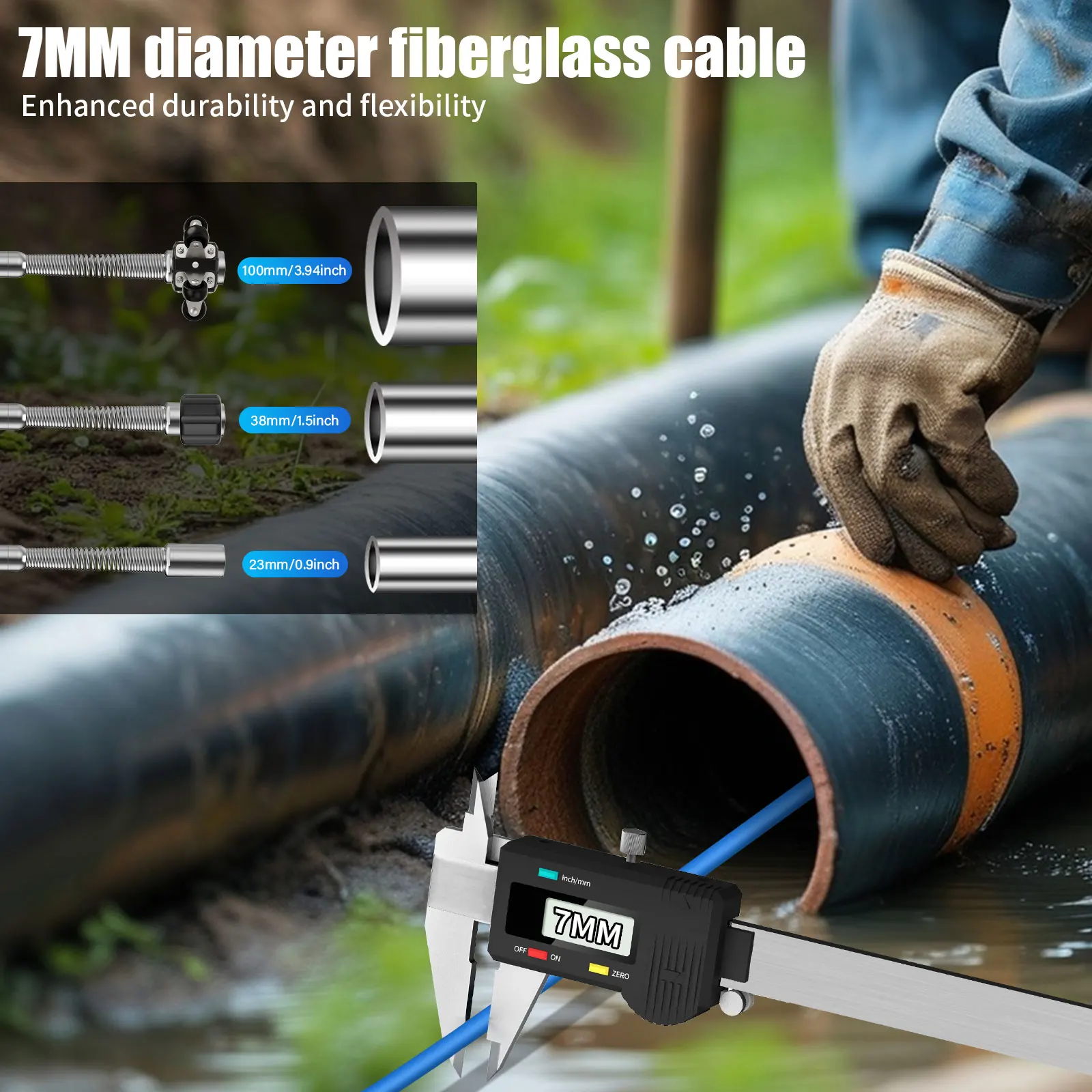

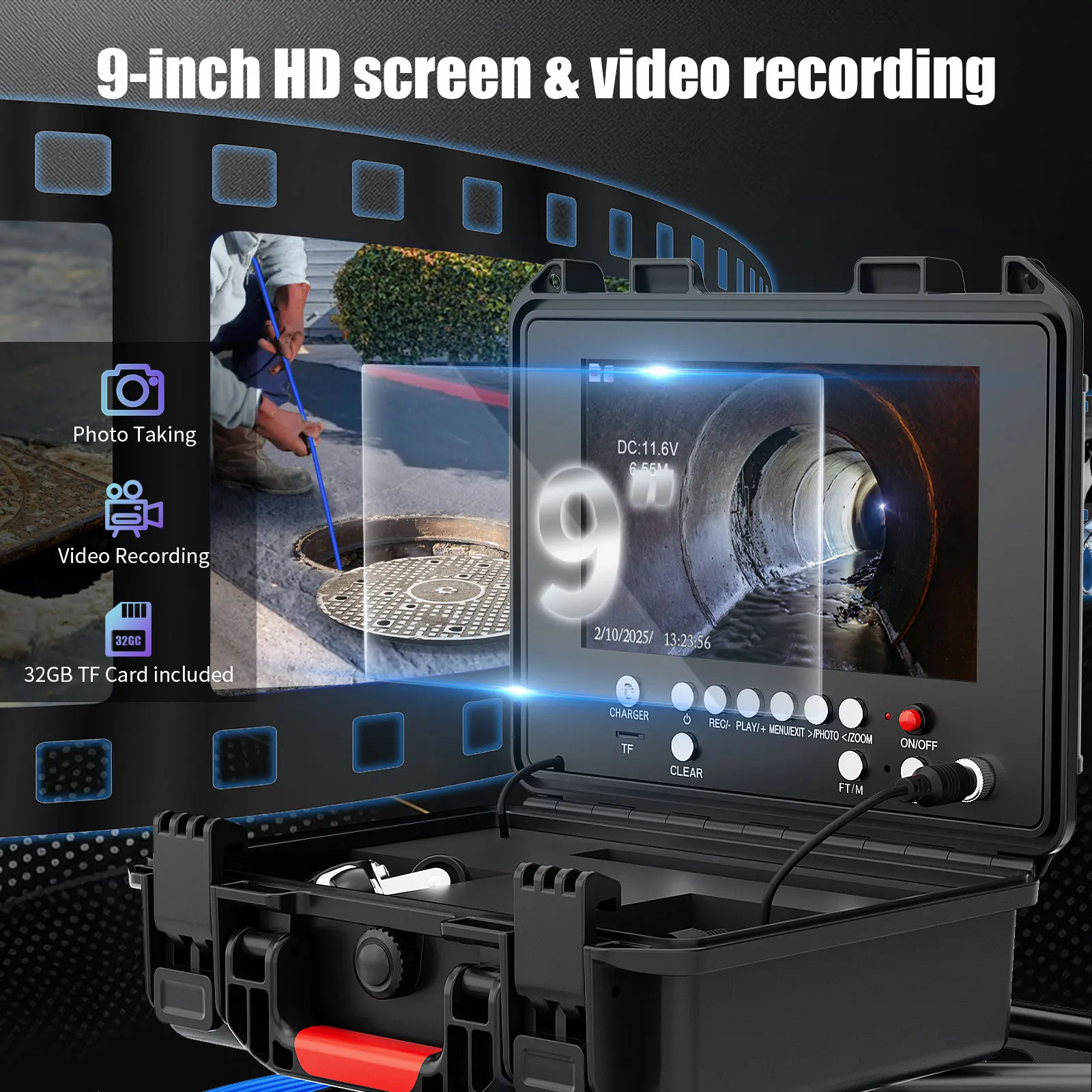

Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 9 inch es color IPS LCD monitor with a sun-visor for outdoor inspections.     The material of wire is fiberglass rod(diameter: 7MM),anti-corrosion/cold/tensile.

DVR Recording Function：

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,32GB card included,it is avialiable to view live video and save video recording and photos and audio record.      You can record the inspections and playback via the pipe system.    （DVR Edition Video Format :AVI  Photo format :JPG)

Applications:

Blocked / slow draining plumbing.

Wall / wire inspection.

Home owners inspection.

Item: parameter

1.Monitor:9 inch IPS color record monitor with sun-visor for bright environment outside

2. TF Card: Memory Support maximum 128G TF card(32G TF card included)

3.512hz:Built in 512hz transmitter

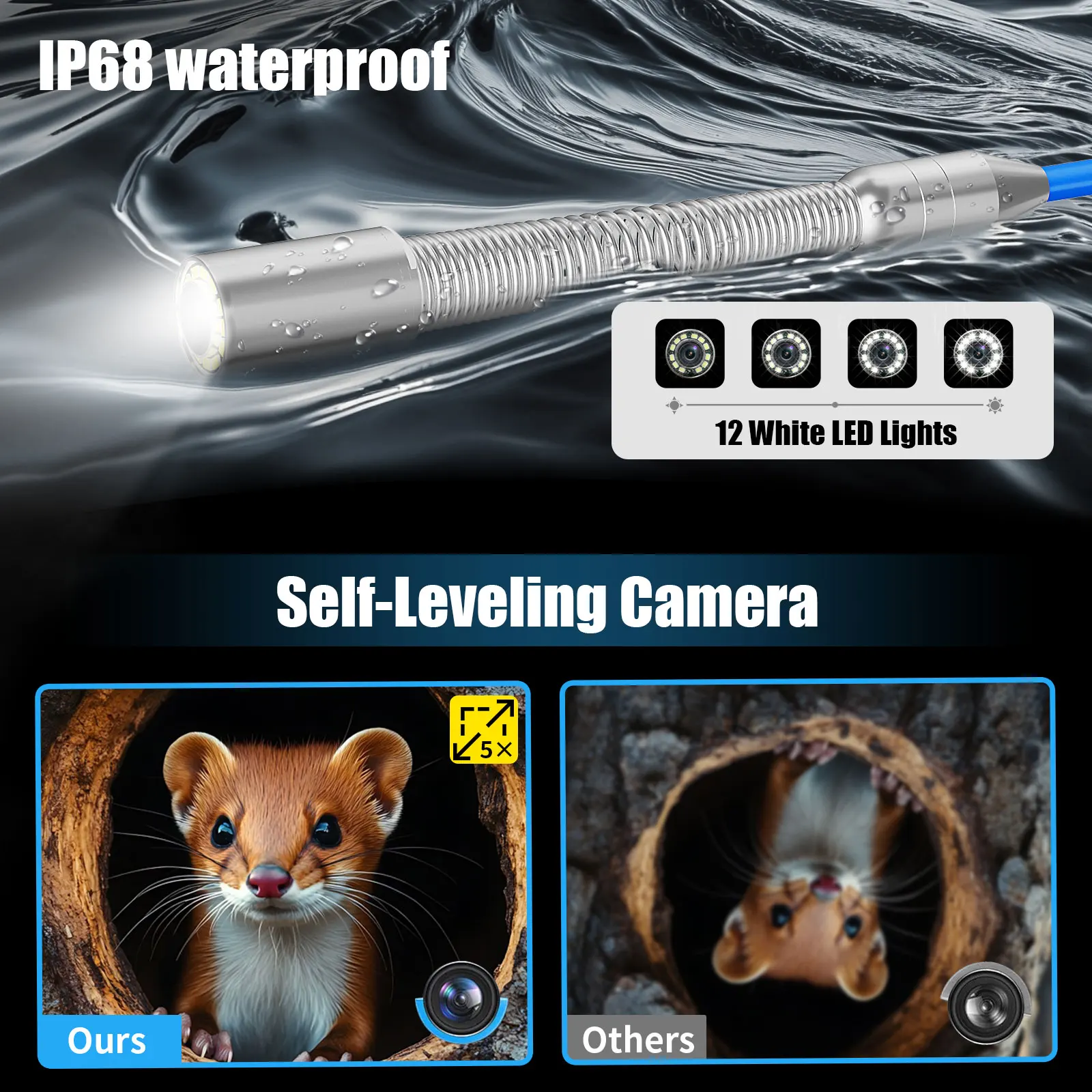

4.Camera :Auto Self Leveling AHD 1080P

5.Charger: AC100-240V   DC12.6V

6.Battery: Luminal-cell arrester 4.5AH

7.continuous use time for battery: approximate 8h

8.investigation depth:30M( selectable line length)

9.material: fiber tube with /high intensity

10.camera light source: 12 PCS LED with high while light(adjustable)

11.camera viewing angle: 145°

12. Lens Mirror Material : Sapphire

13. camera size/material: 23MM* 40MM /stainless steel

14. camera protective cover parts size/material:38MM* 28MM /plastic-steel

15. camera protective cover parts size/material:99MM* 45MM /plastic-steel with wheel

16. camera picture: color

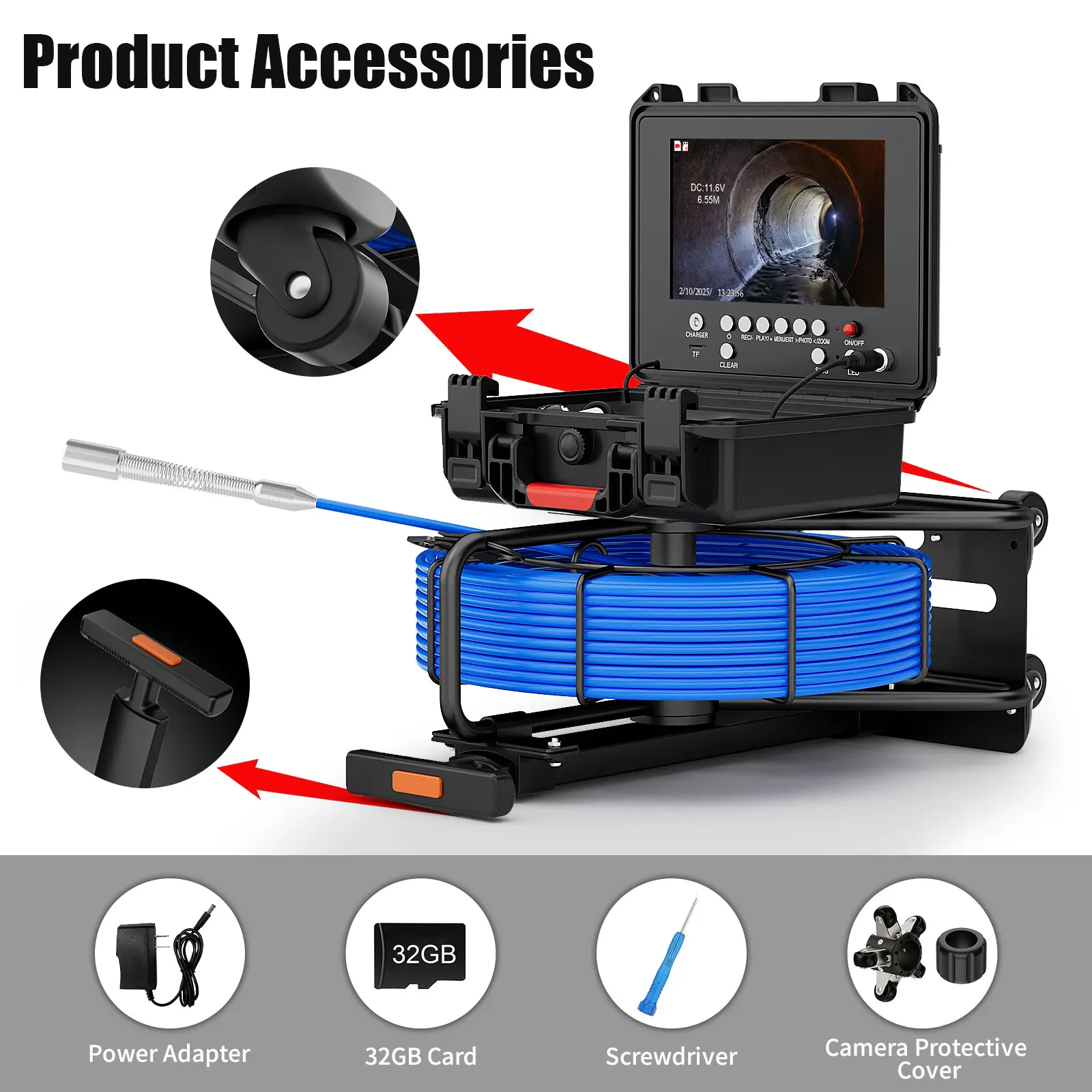

Package List:

1 * 9 inch IPS Monitor（DVR+Built in 4500mah)

1 * Camera (AHD 1080P Auto Self Leveling and 512hz )

1 * 32GB TF Card

1 * 30M Fiberglass Cable

2 * Camera Proof Cover

1 * Charger

1 * Connection Cable

1 * Screw Driver

1 * User Manual (English)
