SPECIFICATIONS

Applicable Bicycle: Road Bicycles

Braking System: Rim brake / Disc brake

Brand Name: BITRANZ

Depth: 30/35/40/45/50/55/60mm

Finish: Matte Glossy

High-concerned chemical: None

Internal width: 21mm/23mm

Model Number: BI40H28

Origin: Mainland China

Outer width: 28mm

Size: 700c

Spoke Hole: 16-36H

Type: Symmetric / Asymmetric

Weave: UD 3K 12K Twill MARBLE

Wheel Material: Carbon

is_customized: Yes

700C Road Bike Carbon Rim 28mm Wide 30/35/40/45/50/55/60mm Deep

- customized available

Specifications

Size	700C
Type	clincher
Depth	40mm
Outer width	28mm
Inner width	21mm
Spoke holes	24
Weave	UD/3K/12K/3K TWILL
Finish	matte/glossy
Braking system	disc brake/rim brake
Nipple position	external/internal
Weight	365±15g
Tubeless	compatible
Material	Toray T800+T700
ERD	559mm
Max weight limit	100kg
Cycling tyre pressure	120psi max
Max spoke tension	180KGf
Decal	customize
Standard	EN
Warranty	24 months



Below options: (Pls leave us message when you make order)

1. spoke holes: 16 ~ 36 holes

2. weave: 3K / UD / 12K / 3K Twill / 12K Twill / Marble / Butterfly

    finish: matte / glossy

3. brake track: with/without

4. nipple position: external / internal / special drilling tapeless - (no outer holes except valve hole)

For more information, you can contact us.

Customized logo decal available. Welcome to contact us and tell us your need.

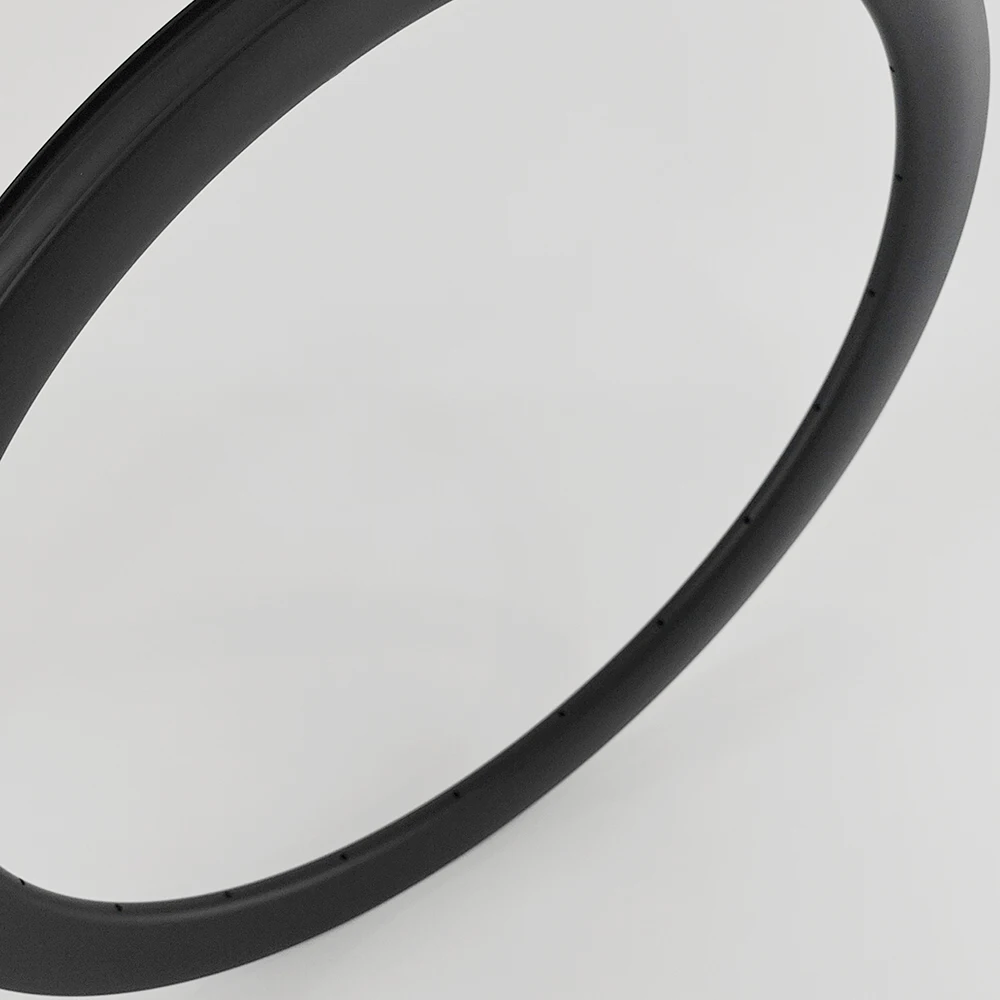

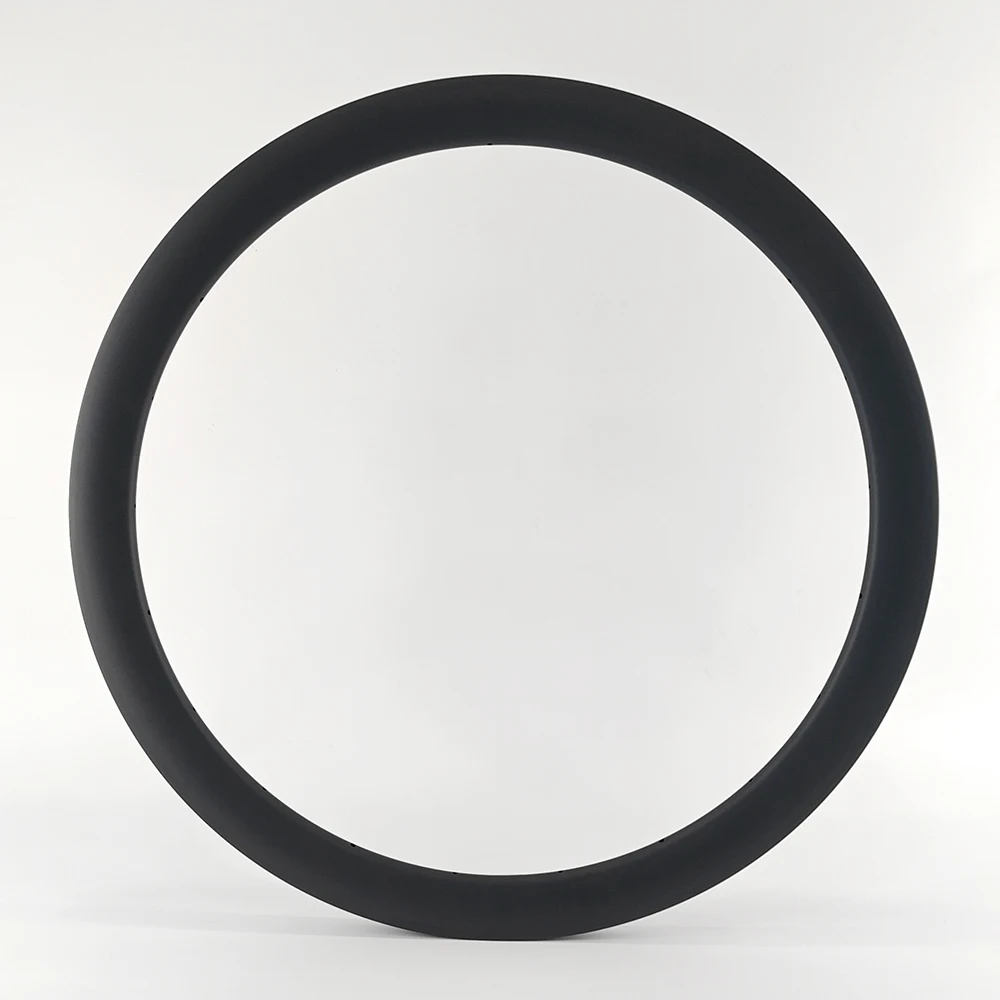

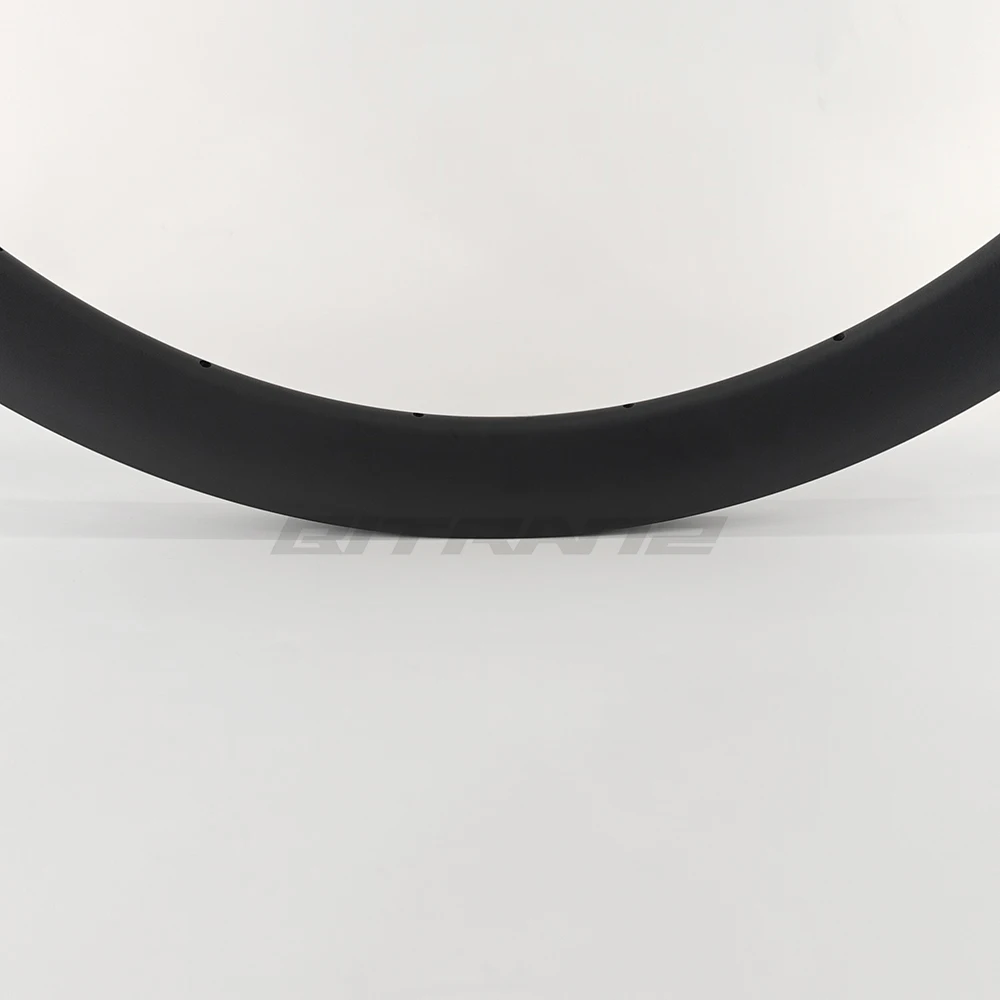

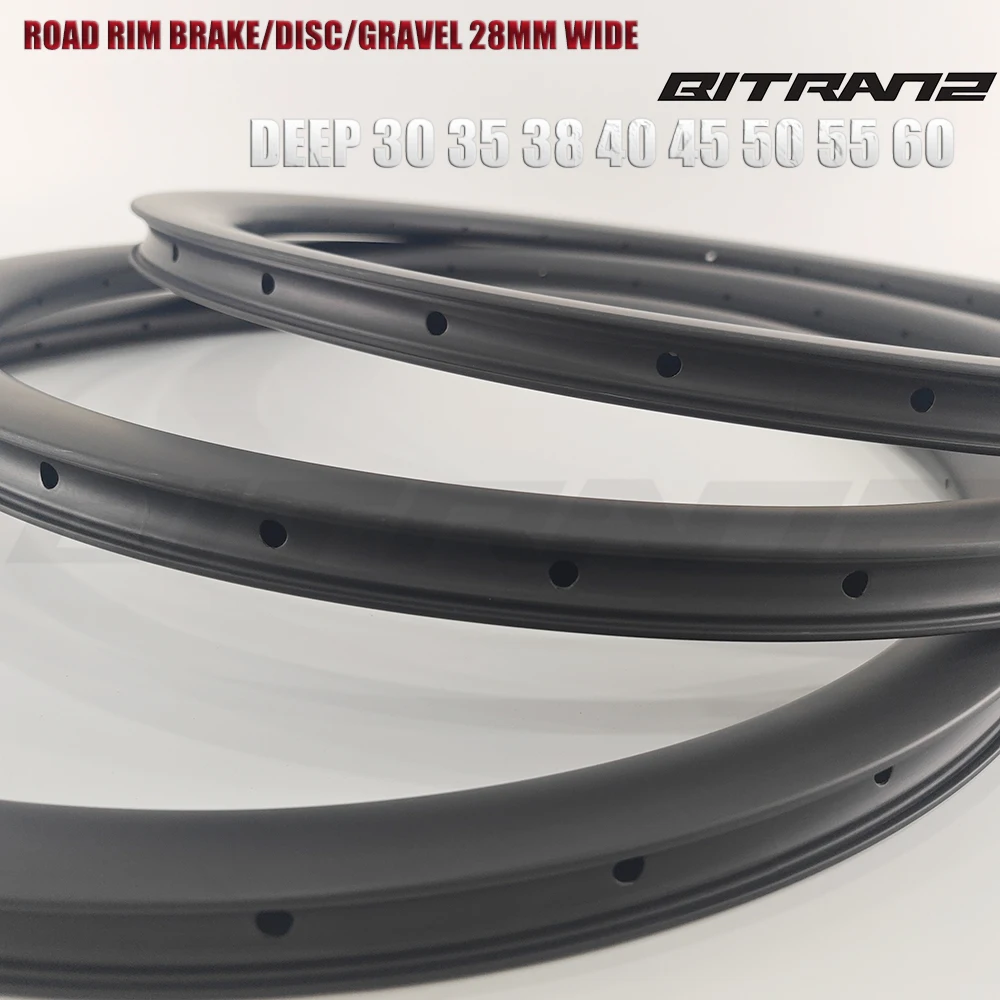

Product Show
