SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: None

Max Gate Weight: 2000kg

Origin: Mainland China

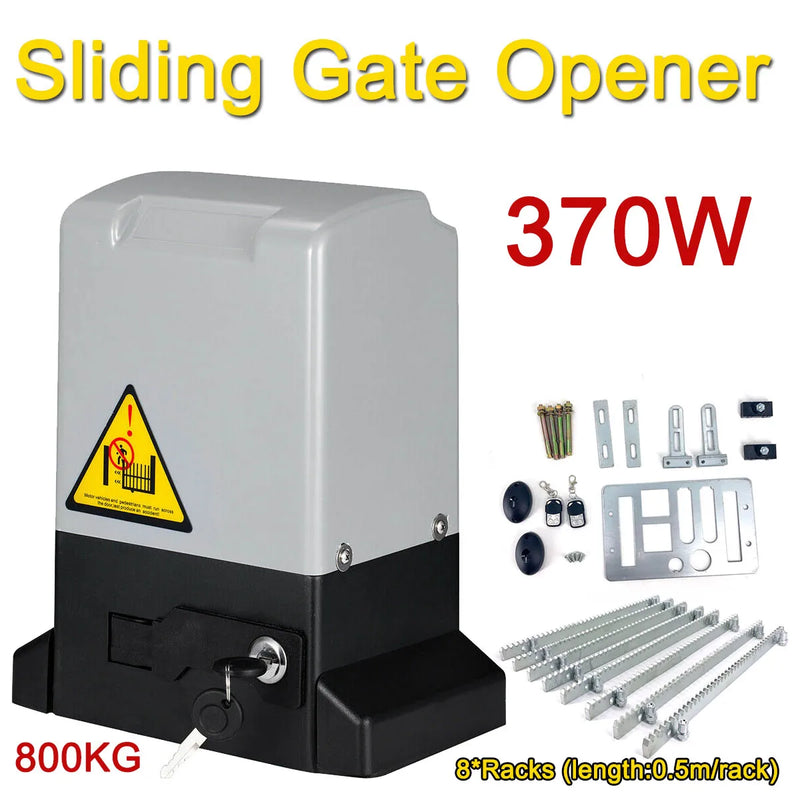

370W Motor

1. Manual clutch: power off can be manually disconnected, easy to use

2. Automatic door closing function: time can be adjusted from 1-60 seconds

3. It has slow heat generation, stable start, high safety, waterproof, explosion-proof and so on.

4. Motor force adjustment: It can adjust the thrust of the motor during operation to prevent the motor from overloading, thus protecting the motor.

5. The motor has a temperature protector: when the temperature is too high, the motor automatically cuts off the power supply to protect the motor.

6. Motor time protection: avoid the motor running for a long time when the stroke fails. The default time is 90 seconds, which can be adjusted by itself.

7. Anti-shock stroke design: When the door body reaches the stroke, the button can only be pressed in the opposite direction, the motor can be operated to prevent the stroke.

8.Infrared sensing design, the door will automatically rebound if there are obstacles or people passing by when closing the door.

Specification:

FCC ID:2AP84-AG070

Material: Plastic, aluminum

Color: silver & black

Voltage: 220V AC, 60Hz

Motor Power: 370w

Motor Speed: 1400r/min

Maximum load: 800kg

Output Torque: 18N.m

Limit Switch: Magnetic Limit Switch

Noise: <56dB

Max # of Remotes:25

Duty Cycle: 10 Minutes

Rack: Quality: 8Pcs; Length:about 0.5M; Tooth Width: 10mm.

Remote contol mode: single button

Starting current: 3A

Running speed: 12m/min

Temperature: -25℃~55℃

Remote Battery required: 1 section 27A 12V alkaline battery（not included）

Working principle and structure:

1.This machine is consists of the motor, worm, gear, driven gear,etc.

2.The specific motor drives the worm, the worm transfers the motion to the worm gear and the driven gear（sprocket）,and the driven gear drives the rack.

3.The motor transfers its motion energy to the sprocket through the worm and gear, the driven gear, and the worm gear will both rotating when the clutch isengaged, so the door will to be open or close under electric control. When in power failure, get the clutch disengaged through the disengage key(turn 90° clockwise), this machine will to be effected manually to open or close the gate

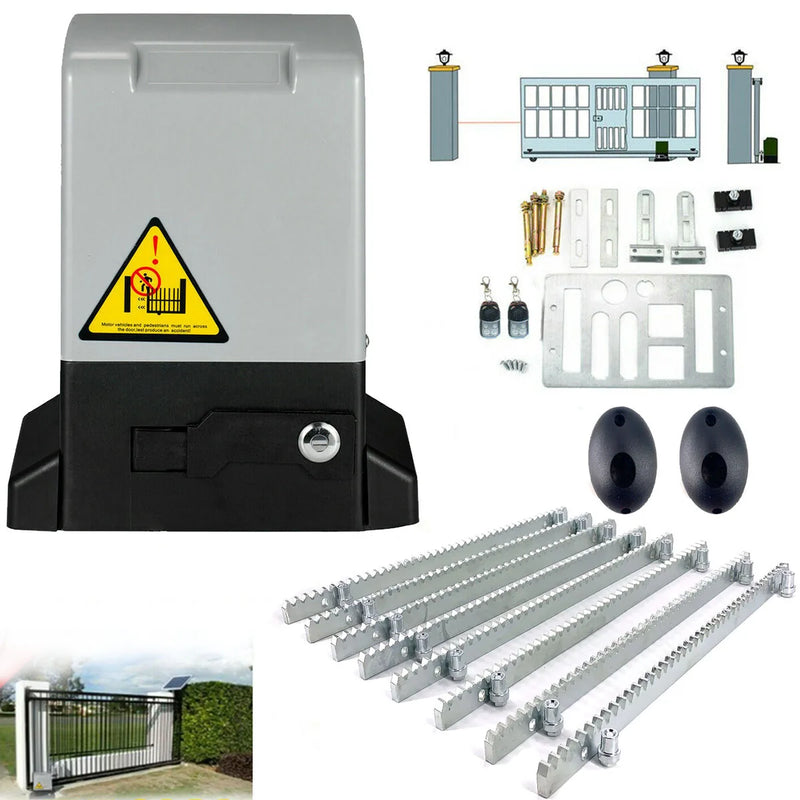

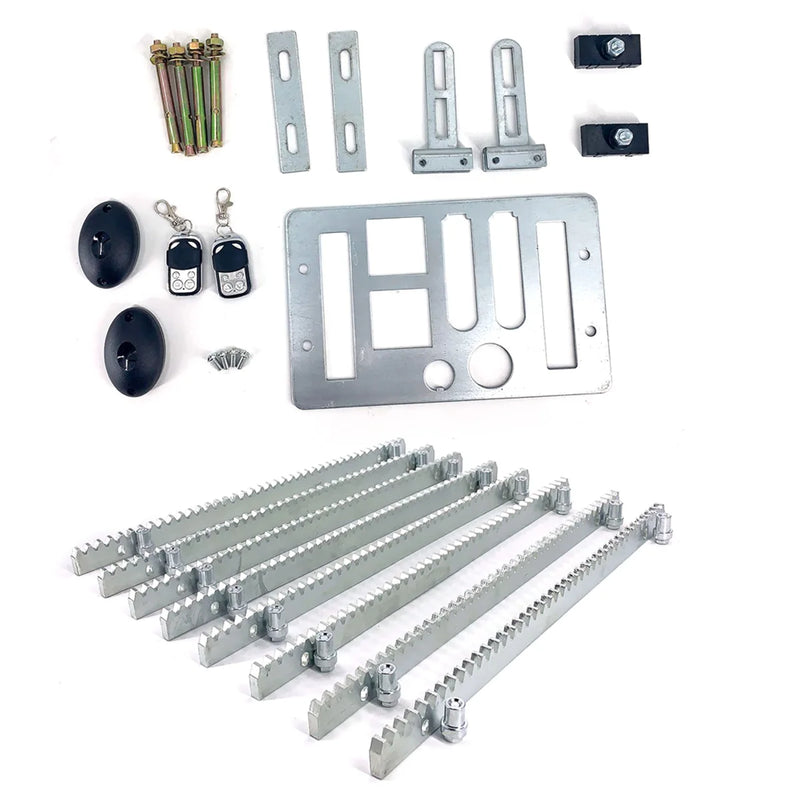

Packing List:

1*Motor

8*Racks (length:0.5m/rack)

2*Remote Controls

2*Single infrared beam sensors

2*Manual Release Keys

1*Mounting Hardware

1*Installation Parts

1*Owners Manual

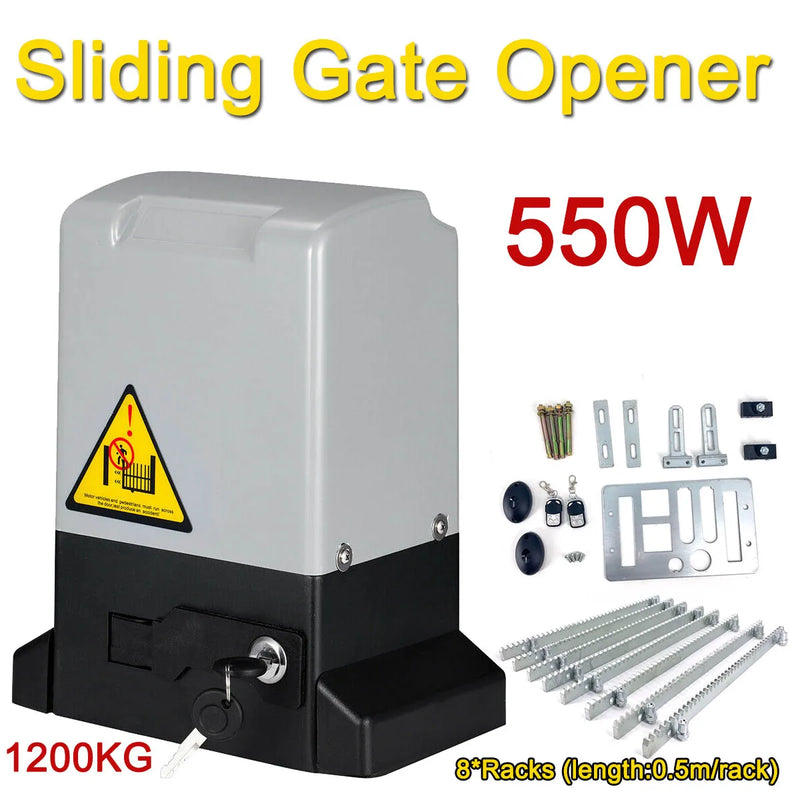

550W Motor

1. Manual clutch: power off can be manually disconnected, easy to use

2. Automatic door closing function: time can be adjusted from 1-60 seconds

3. It has slow heat generation, stable start, high safety, waterproof, explosion-proof and so on.

4. Motor force adjustment: It can adjust the thrust of the motor during operation to prevent the motor from overloading, thus protecting the motor.

5. The motor has a temperature protector: when the temperature is too high, the motor automatically cuts off the power supply to protect the motor.

6. Motor time protection: avoid the motor running for a long time when the stroke fails. The default time is 90 seconds, which can be adjusted by itself.

7. Anti-shock stroke design: When the door body reaches the stroke, the button can only be pressed in the opposite direction, the motor can be operated to prevent the stroke.

8.Infrared sensing design, the door will automatically rebound if there are obstacles or people passing by when closing the door.

Specification:

FCC ID:2AP84-AG070

Material: Plastic, aluminum

Color: silver & black
Voltage: 220V AC, 60Hz
Motor Power: 550W
Motor Speed: 1400r/min
Maximum load: 1200kg
Output Torque: 26N.m
Limit Switch: Magnetic Limit Switch
Noise: <56dB
Remote Control Range: 70m/229Ft
Duty Cycle: 10 Minutes
Rack: Quality: 8Pcs; Length:about 0.5M; Tooth Width: 12mm.
Remote contol mode: single button
Starting current: 3A
Running speed: 12m/min
Temperature: -25℃~55℃
Remote Battery required: 1 section 27A 12V alkaline battery（not included）

Working principle and structure:
1.This machine is consists of the motor, worm, gear, driven gear,etc.
2.The specific motor drives the worm, the worm transfers the motion to the worm gear and the driven gear（sprocket）,and the driven gear drives the rack.
3.The motor transfers its motion energy to the sprocket through the worm and gear, the driven gear, and the worm gear will both rotating when the clutch is engaged, so the door will to be open or close under electric control. When in power failure, get the clutch disengaged through the disengage key(turn 90° clockwise), this machine will to be effected manually to open or close the gate

Packing List:

1*Motor

8*Racks (length:1m/rack)

2*Remote Controls

2*Single infrared beam sensors

2*Manual Release Keys

1*Mounting Hardware

1*Installation Parts

1*Owners Manual

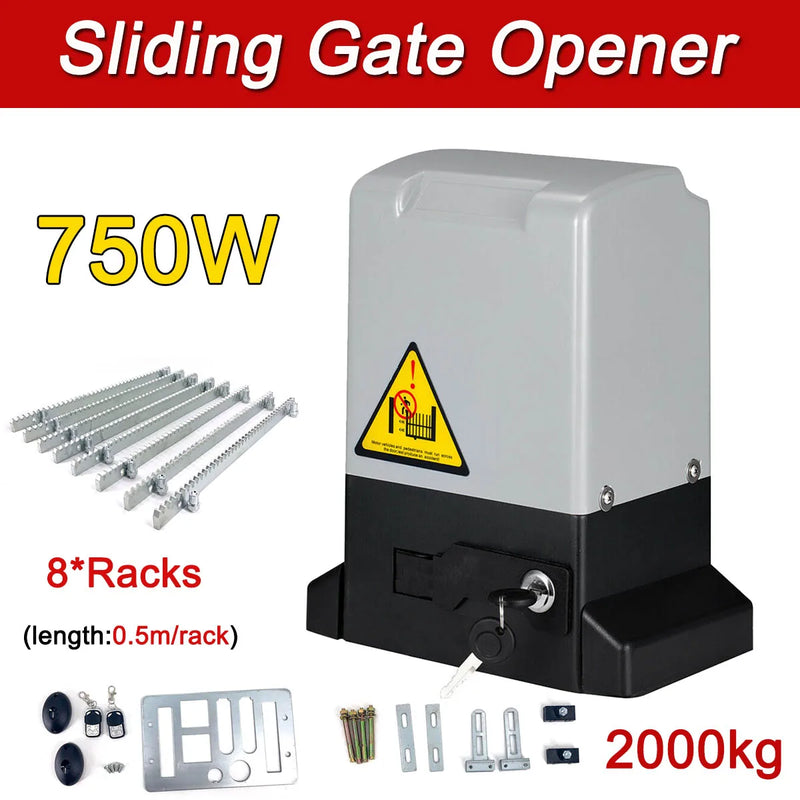

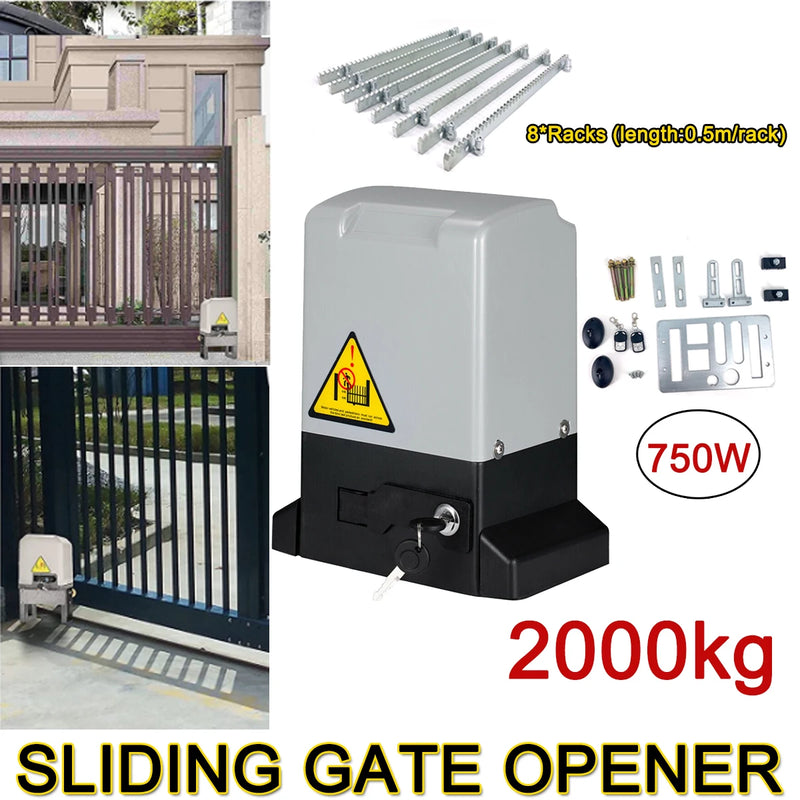

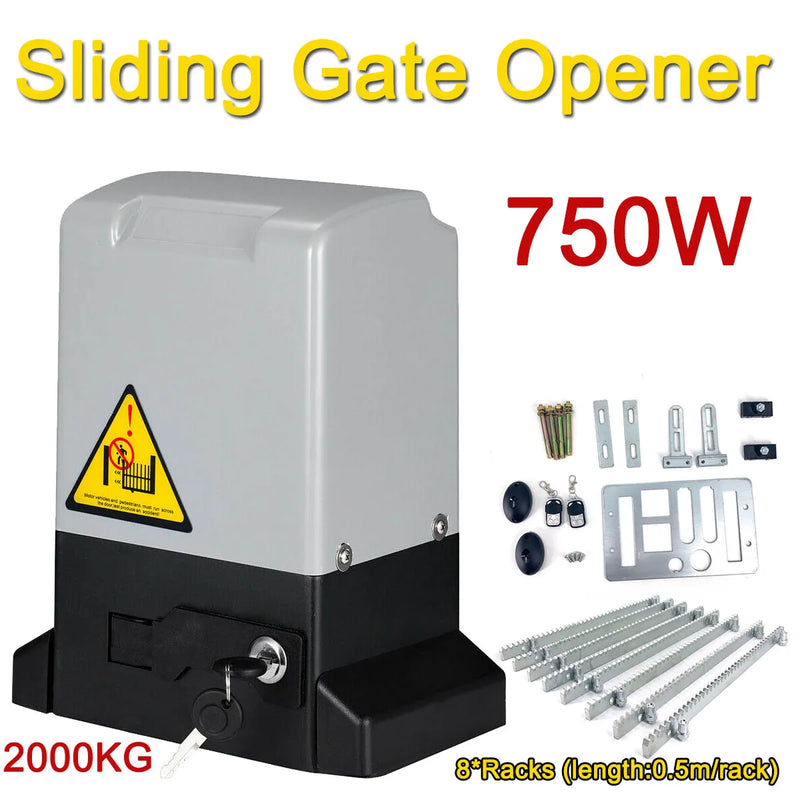

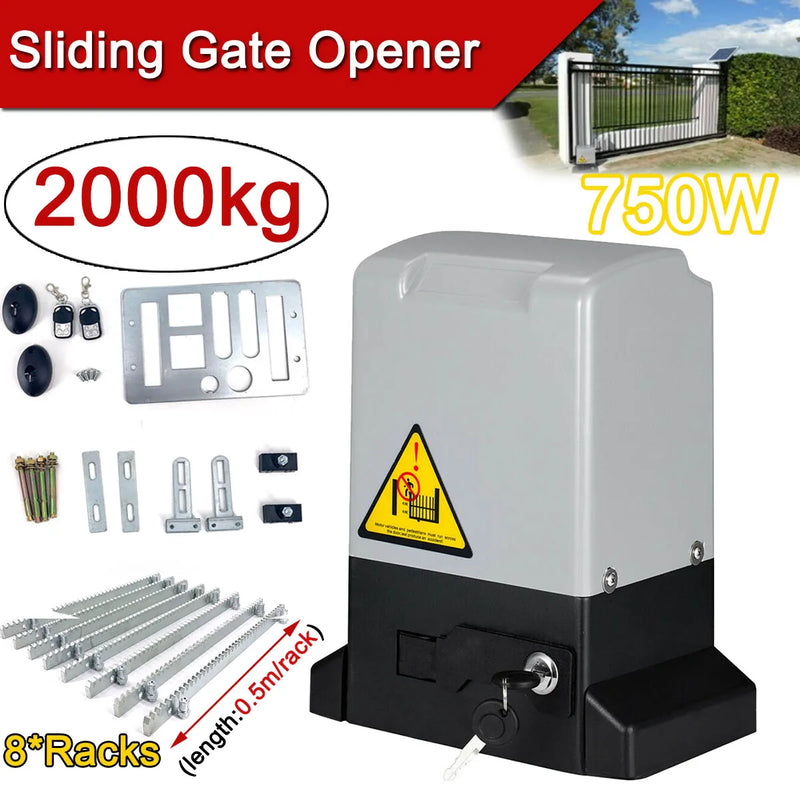

750W Motor

1. Manual clutch: power off can be manually disconnected, easy to use

2. Automatic door closing function: time can be adjusted to 5 seconds, 10 seconds, and 20 seconds.

3. It has slow heat generation, stable start, high safety, waterproof, explosion-proof and so on.

4. Motor force adjustment: It can adjust the thrust of the motor during operation to prevent the motor from overloading, thus protecting the motor.

5. The motor has a temperature protector: when the temperature is too high, the motor automatically cuts off the power supply to protect the motor.

6. Motor time protection: avoid the motor running for a long time when the stroke fails. The default time is 90 seconds, which can be adjusted by itself.

7. Anti-shock stroke design: When the door body reaches the stroke, the button can only be pressed in the opposite direction, the motor can be operated to prevent the stroke.

8.Infrared sensing design, the door will automatically rebound if there are obstacles or people passing by when closing the door.

Specification:
Material: Plastic, aluminum
Color: silver & black
Voltage: 220V AC, 50Hz
Motor Power: 750W
Motor Speed: 1400r/min
Maximum load: 2000kg
Output Torque: 35N.m
Noise: <56dB
Max control range of Remotes: about 70m/229Ft
Duty Cycle: 10 Minutes
Rack: Quality: 8Pcs; Length:about 0.5M; Tooth Width: 10mm.
Remote contol mode: single button
Starting current: 3A
Running speed: 12m/min
Temperature: -25℃~55℃
Remote Battery required: 1 section 27A 12V alkaline battery（not included）

Working principle and structure:
1.This machine is consists of the motor, worm, gear, driven gear,etc.
2.The specific motor drives the worm, the worm transfers the motion to the worm gear and the driven gear（sprocket）,and the driven gear drives the rack.
3.The motor transfers its motion energy to the sprocket through the worm and gear, the driven gear, and the worm gear will both rotating when the clutch is engaged, so the door will to be open or close under electric control. When in power failure, get the clutch disengaged through the disengage key(turn 90° clockwise), this machine will to be effected manually to open or close the gate

Packing List:

1*Motor

8*Racks (length:0.5m/rack)

2*Remote Controls

2*Single infrared beam sensors

2*Manual Release Keys

1*Mounting Hardware

1*Installation Parts

1*Owners Manual
