5.5-inch touch screen Android 8.1 smart home theater with Bluetooth TUYA app control support LAN intercom wall mounted amplifier

Smart Android Wall Amplifier Parameters:
● Load: 4-8Ω
● RMS Output Power: 4x30W
● Audio Zone: 2 zone for audio
● Zone Volume Control: 2 zones
● Bluetooth Distance: Up to 10 meters
● RAM: 2GB
● ROM: 8GB
● Display: 5.5 inch IPS Display
● Resolution: 1280*800
● support 1：bluetooth.online music&video
● support 2：voice control

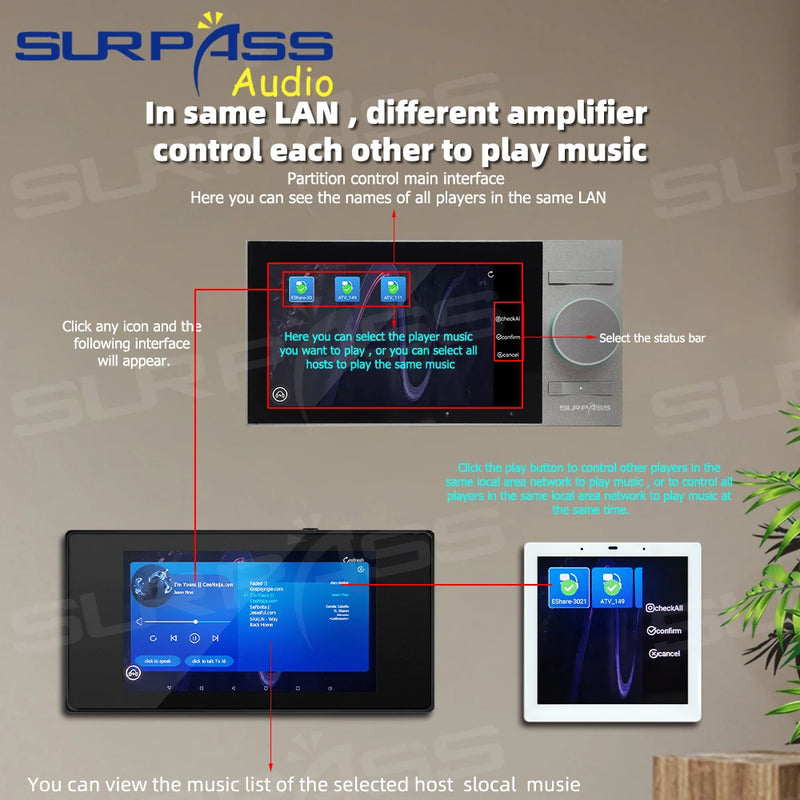

● support 3：support for LAN intercom
● support 4：Support TUYA APP control
●  Type1：Power Wall Mount Amplifier
●  Type2：Bluetooth Wall Amplifer Audio

Smart Android Wall Amplifier Features:
1.5.5-inch multi touch capacitive screen with 1280 * 800 IPS high-definition resolution.
2. Android 8.1 system.
3. Support remote control of mobile devices such as smartphones and tablets.
4. Supports pairing with external Bluetooth devices such as mobile phones for audio playback. You can control external Bluetooth devices to play music from two directions and set Bluetooth on or off.
5. Four channel speaker output, supporting two zone volume adjustment, with separate adjustment for high and low tones in each zone.
6. Support separate playback of two regional audio sources (such as local audio source in region one and Bluetooth audio source in region two)
7. Supports audio input function.
8. Supports audio output function.
9. Support subwoofer connection.

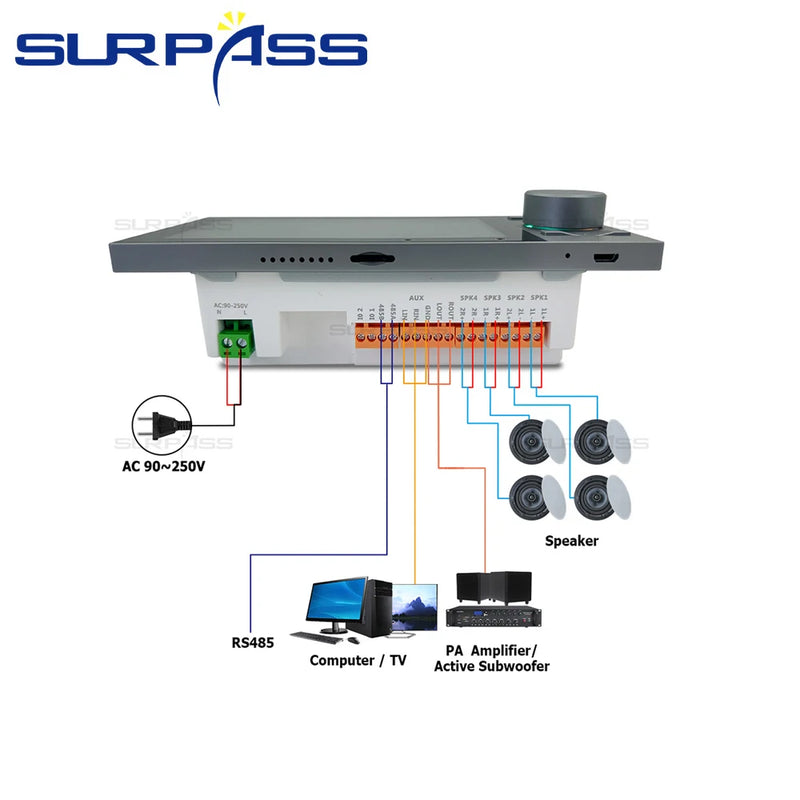

1. Power Supply Terminal: Compatible AC90-250V power supply, power cable with two strands of copper core wire, single strand copper core over 0.75mm².
2. SPK R + SPK R-: Four Speakers: Speaker wire (200 cores, commonly known as gold and silver    wire), RVH2x100, RVH2x200.
3. AUX L + AUX R + GND: audio input wire: Audio wire (three core shielded wire: commonly known as microphone wire). RVVP2x0.5, RVVP2x0.75
4. RJ45 wired network port: Cat5e network cable.
5. High-definition video output: HDMI high-definition cable.
6. Bass output: audio cable, RVVP2x0.5, RVVP2x0.75.
7. OUT R + OUT L + GND: audio output wire: Audio wire (three core shielded wire: commonly known as microphone wire). RVVP2x0.5, RVVP2x0.75
8. SPK R + SPK R-: Four Speakers: Speaker wire (200 cores, commonly known as gold and silver    wire), RVH2x100, RVH2x200.
