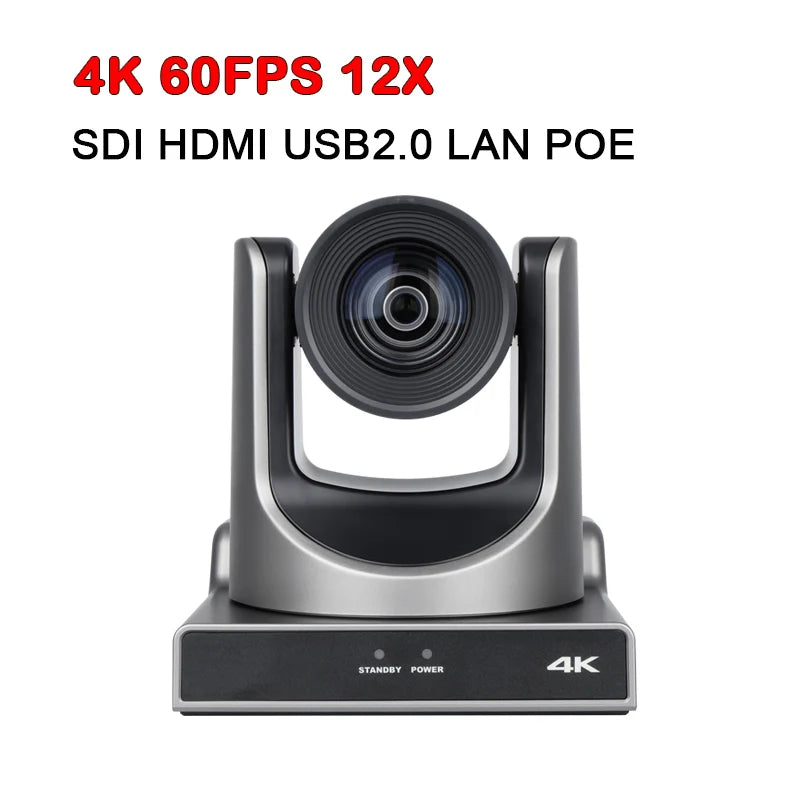

4K60fps NDI PTZ Video 12x 20x Zoom Conference SDI Camera | SAMAG
SCORE BIG SALE
£1,178.00
↓ Save £353.00
£1,531.00
4K60 NDI 20X
✓
4K60 NDI 12X
✓
4K60 20X
✓
4K60 12x
✓
SPECIFICATIONS
Audio Output: 1CH RCA
Brand Name: FLA
Certification: NONE
Color: black
Connectivity: IP/Network Wired
Digital noise reduction: 2D&3D
Dimensions (L x W x D)(mm): 169mmx142mmx164mm
High Definition: 8.0 Megapixels
High-concerned chemical: None
IR Distance(m): No IR
Installation: Normal
Lens: 12X 20x Optical Zoom
Lens (mm): 5-50mm
Lens Quantity: Single Lens
Megapixels: 8MP
Minimum Illumination(Lux): 0.5 Lux
Model Number: FLA-UH4612L or FLA-UH4620L
Network Protocol: HTTP, RTSP, RTMP, RTP, TCP, UDP, IPONVIF
Origin: Mainland China
Power Consumption(W): 18W
Power Supply: With Poe
Power Supply(V): DC12V / POE
Preset Number: 255
Product name: broadcast ptz camera live streaming 4k
Sensor: CMOS
Sensor Brand: Sony
Signal to noise ratio: ≥55dB
Special Features: Vandal-proof
Style: 4K Video Conference camera
Supported Operating Systems: Windows 7,Windows XP
TF Card: None
Video Compression Format: H.264,H.265
Video output: HDMI+SDI+USB2.0+LAN(poe)+RS232/RS422+Audio in/out
Viewing Angle : 90°
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: 20x
Zoom type: Optical zoom
is_customized: Yes

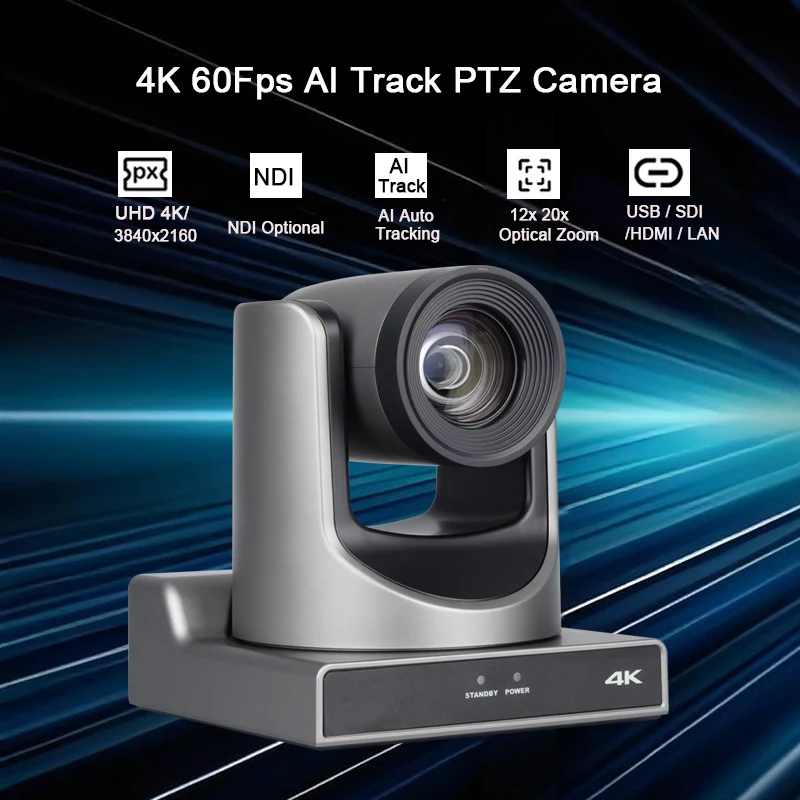

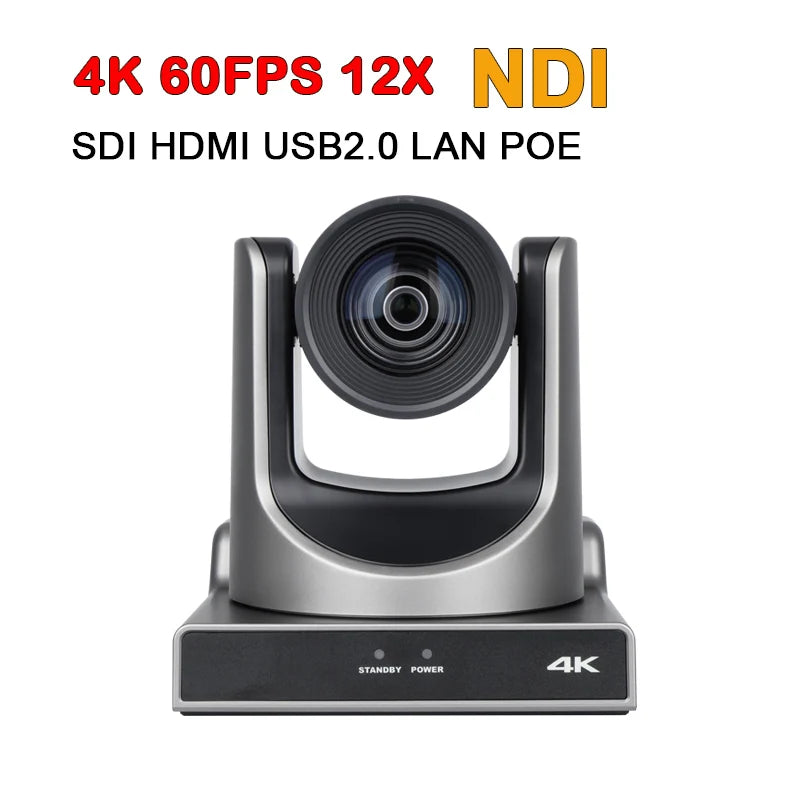

4K60fps NDI PTZ Video 12x 20x Zoom Conference SDI Camera USB HDMI POE IP Live Streaming Camera for Church Business Youtube
Main Features:
4K60P 12X Zoom
Using a high-quality UHD CMOS sensor with a 1/2.5-inch size and 8.51 million pixels. Both models deliver images with 4K (3840×2160) ultra-high resolution and are backward compatible with various resolutions, including 1080P and 720P.

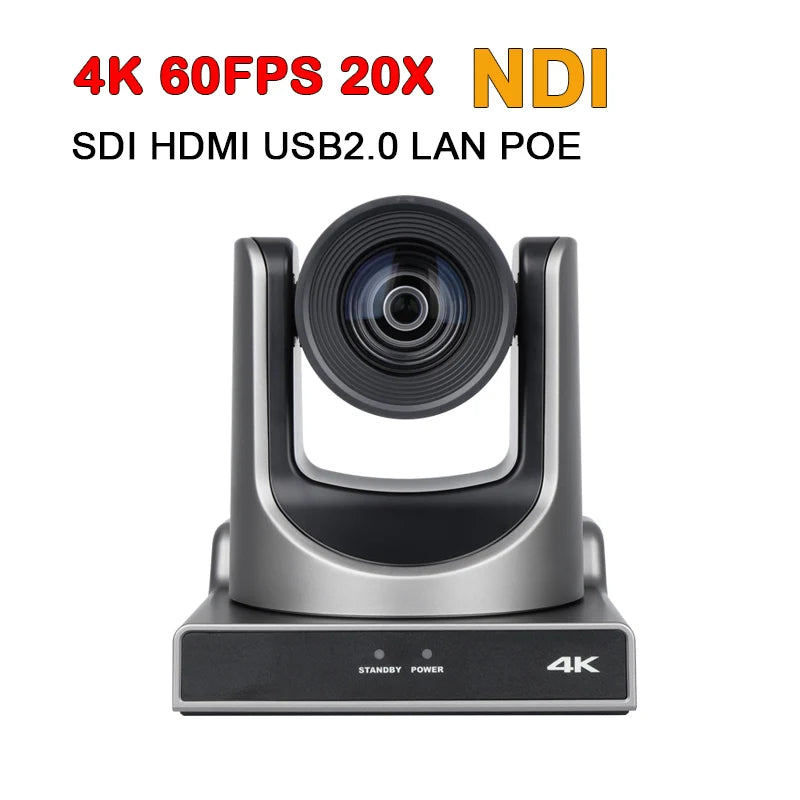

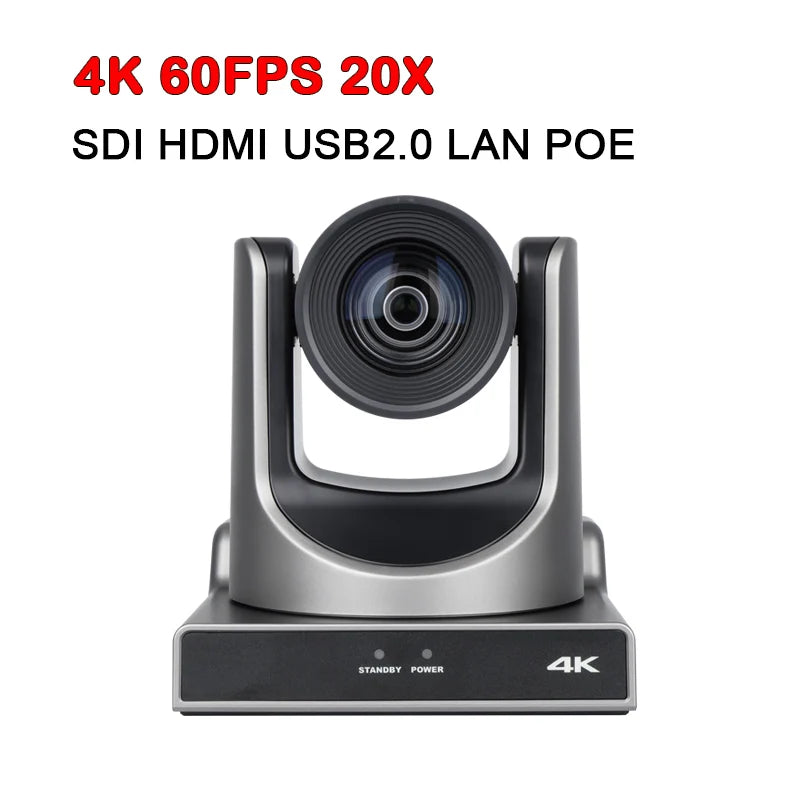

4K60P 20X Zoom
Using 1/1.8-inches high-quality UHD CMOS sensor with a maximum of 8.42 million pixels can realize 4K (3840x2160) ultra-high-resolution high-quality images. And downward compatible with 1080p, 720p and other resolutions.
12x Optical Zoom + 71° Wide-angle Lens
It adopts 4K ultra long focal lens with high quality and 8 million ultra-high resolution, 12x optical zoom, and the maximum field angle is 71° .
20x Optical Zoom + 60 ° Wide-angle Lens
It adopts 4K ultra long focal lens with high quality and 8 million ultra-high resolution, 20x optical zoom, and the maximum field angle is 60° .

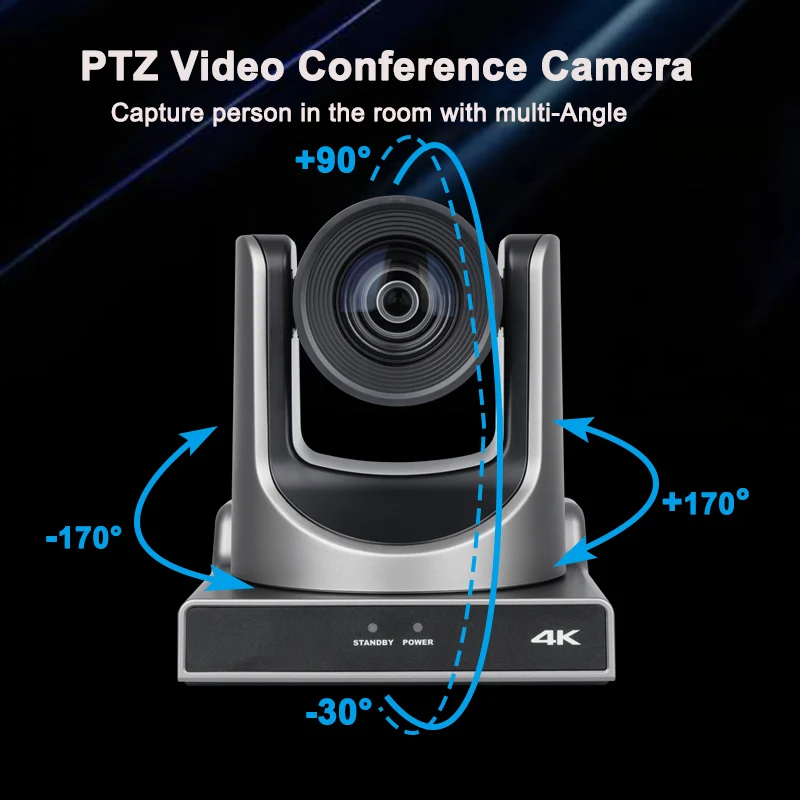

Electro Mechanical PTZ
Built-in self-developed electro mechanical PTZ, the horizontal rotation range can reach ±170 ° , the rotation speed range is 1.7°～ 100° /s; the vertical rotation range can reach -30°～ 90° , and the rotation speed range is 1.7°～ 69.9° /s.

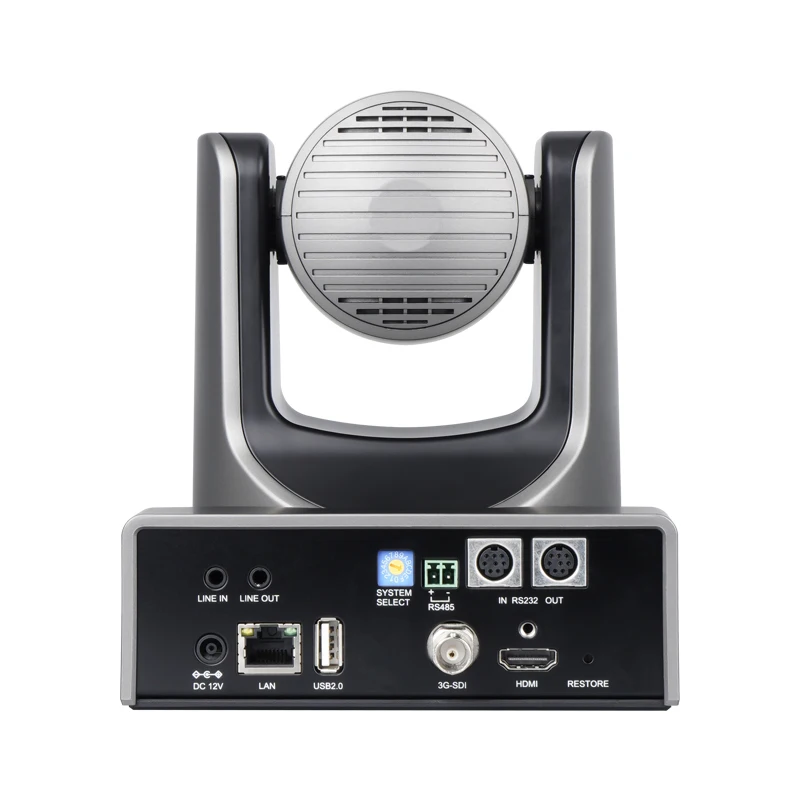

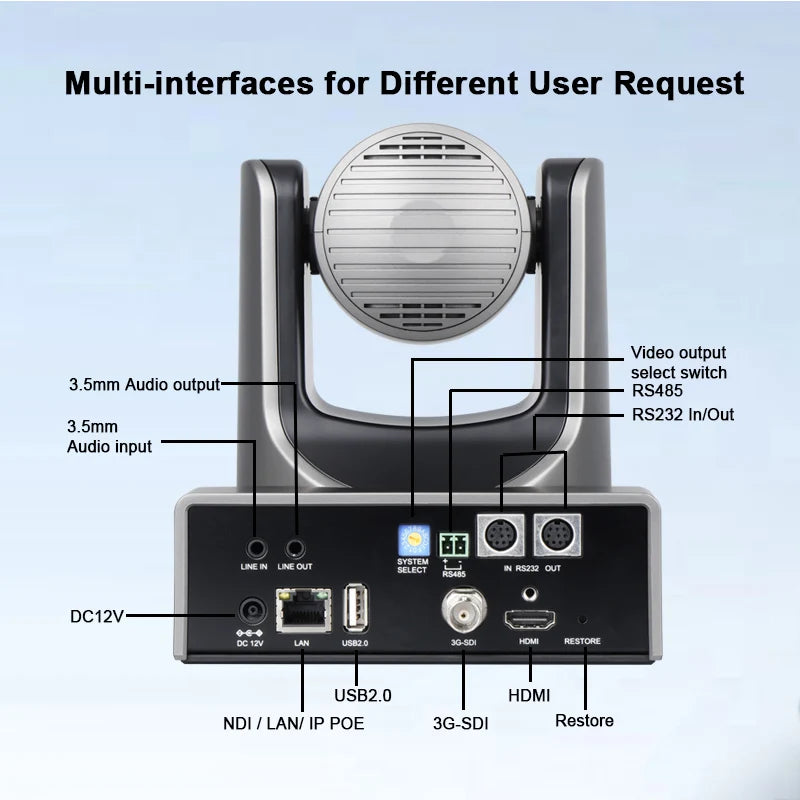

Multiple Interfaces
Support HDMI and 3G-SDI interface, effective transmission distance of 3G-SDI is up to 150 meters (1080P30). HDMI or 3G-SDI, USB, LAN can output three HD digital signals at the same time.
Uncompressed video output
With HDMI2.0 and 3G-SDI interface, it can directly output uncompressed digital video.
Remote Control
Support variety of control methods, you can use RS232, RS485, network and USB to control the camera.
Low Illumination
The application of 3D noise reduction algorithm greatly reduces image noise. Even under the condition of ultra-low illumination, it still keeps the picture clean and clear, and the SNR of image is as high as 55dB.

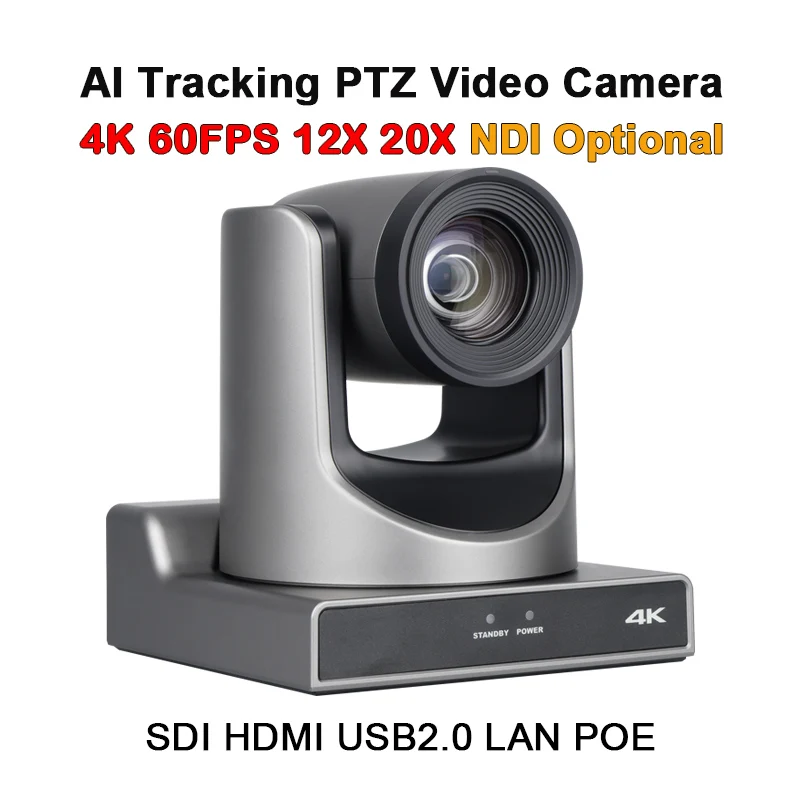

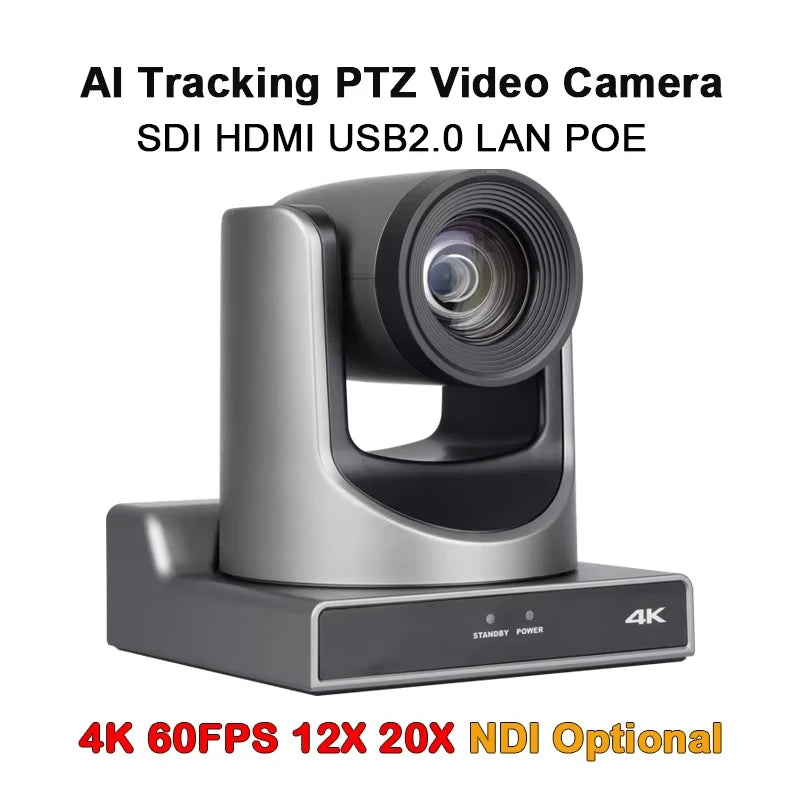

AI Tracking
With the help of the AI computing power of the chip, the camera is equipped with advanced AI algorithms to realize monocular humanoid tracking, which can realize automatic tracking of scenes such as education, conferences and live broadcasts.
NDI®|HX2
NDI®|HX2 has the characteristics of low latency and plug and playand easy to be implemented and deployed. It has good ecology and supports the simultaneous transmission of audio, video and control commands. It is a new generation of network video transmission mode.

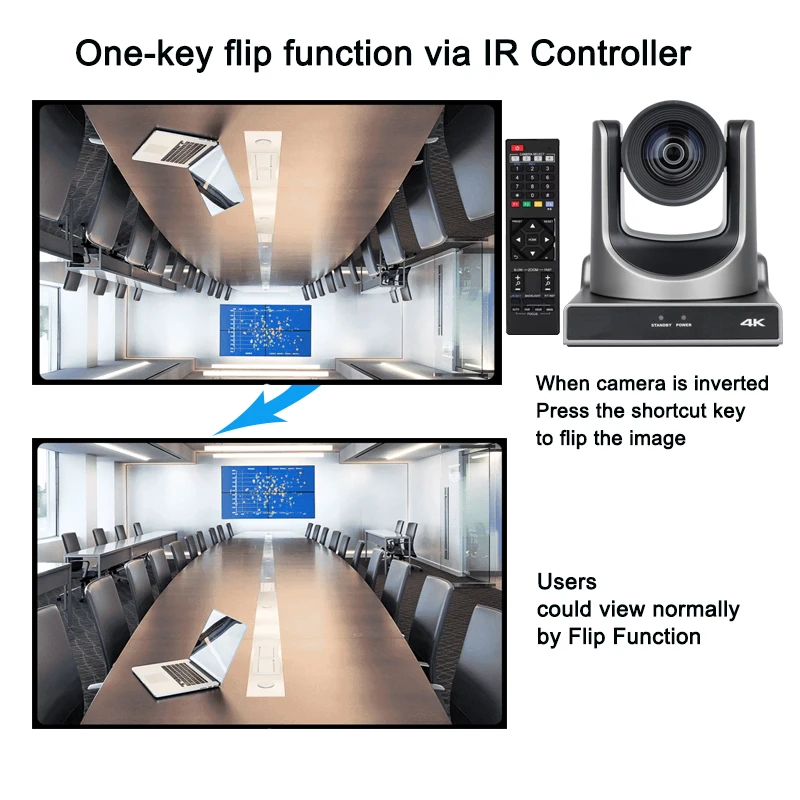

Gravity Sensor
It supports automatic image flipping function, which is convenient for installation and use.
Technical Parameter:
Model numer |
12X |
20X |
Main Features | ||
Sensor |
1/2.5 inches, CMOS, Effective Pixels: 8.51 Megapixels |
1/1.8 inches, CMOS, Effective Pixels: 8.42 Megapixels |
Signal System |
HDMI:4K60P, 4K59.94P, 4K50P, 4K30P, 4K29.97P, 4K25P, 1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080I60, 1080I59.94, 1080I50, 720P60, 720P59.94; 3G-SDI:1080P60,1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080P25; 1080I60, 1080I59.94, 1080I50; 720P60, 720P59.94 |
|
Scanning Mode |
Progressive |
|
|
12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6 |
20x, f = 6.25mm ~ 125mm, F1.58 ~ F3.95 |
|
Digital Zoom |
16x |
|
|
Minimum Illumination |
0.5Lux @ (F1.8, AGC ON) |
|
Shutter |
1/30s ~ 1/10000s |
|
White Balance |
Auto, Indoor, Outdoor, One Push, Manual, VAR |
|
|
Backlight Compensation |
Support |
|
|
Digital Noise Reduction |
3D Digital Noise Reduction |
|
SNR |
≥55dB |
|
Horizontal FOV |
71° ~ 8.2° |
60° ~ 3.5° |
Vertical FOV |
42.7° ~ 4.5° |
35.7° ~ 2.0° |
Pan Angle |
±170° |
|
Tilt Angle |
-30° ~ +90° |
|
Pan Speed |
1.7° ~ 100° /s |
|
Tilt Speed |
1.7° ~ 69.9° /s |
|
Image Flip |
Support |
|
Image Freeze |
Support |
|
Preset Position |
255 |
|
Preset Accuracy |
0.1° |
|
Interfaces | ||
HD Output |
1x HDMI: Version 2.0; 1x 3G-SDI: BNC , 800mVp-p, 75Ω, as per SMPTE 424M standard |
|
Network Interface |
1x RJ45: 10M/100M/1000M adaptive Ethernet |
|
Audio Interface |
1 x Line In: 3.5mm Jack; 1 x Line Out: 3.5mm Jack |
|
USB Interface |
1 x USB2.0,Type-A (Support Host or Device mode) |
|
Control Interface |
1 x RS485: 2pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P; 1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P; 1 x RS232 OUT: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA only |
|
Power Interface |
JEITA type (DC IN 12V) |
|
Network Features | ||
Video Compression |
H.265/H.264/MJPEG |
|
Video Stream |
First Stream, Second Stream |
|
|
First Stream Resolution |
3840x2160, 1920x1080, 1280x720, 1024x576 etc. |
|
|
Second Stream Resolution |
720x576, 720x480, 320x240 etc. |
|
Video Bit Rate |
First Stream: 32kbps~51200kbps Second Stream: 32kbps~20480kbps |
|
Bit Rate Control |
VBR, CBR |
|
Frame Rate |
50Hz: 1fps~50fps, 60Hz:1fps~60fps |
|
Audio Compression |
AAC、G711A |
|
Audio Bit Rate |
96Kbps, 128Kbps |
|
Protocols |
NDI®|HX2,SRT,TCP/IP,HTTP,RTSP,RTMP/ RTMPS,Onvif,DHCP,Multicast, GB/T 28181, etc. |
|
USB Features | ||
Operating System Supported |
Windows 7, Windows 8, windows 10, windows 11, MacOS 11.6.6 or higher versions, Ubuntu 18.04.4 lts or higher versions, Android 8.0.0 or higher versions |
|
Color System / Compression |
YUY2 H.265 / H.264 / MJPEG |
|
Video Format |
YUY2 :Max.1080P5; H.264 : Max.2160P30; H.265 HEVC: Max.2160P30; MJPEG: Max.2160P30 |
|
USB Audio |
Support |
|
Control Interface |
1 x RS485: 2pin phoenix port, Max Distance: 1200m Protocol: VISCA / Pelco-D / Pelco-P 1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m Protocol: VISCA / Pelco-D / Pelco-P; 1 x RS232 OUT: 8pin Mini DIN Max Distance: 30m, Protocol: VISCA only |
|
|
USB video Communication Protocol |
UVC 1.1~1.5 |
|
UVC PTZ Control |
Support |
|
General Specifications | ||
Input Voltage |
DC 12V/PoE+(802.3at) |
|
Input Current |
2A (Max.) |
|
|
Operating Temperature |
-10° C ~ 40° C |
|
|
Storage Temperature |
-40° C ~ 60℃ |
|
|
Power Consumption |
18W (Max.) |
|
Dimensions |
169mm x 142mm x 164mm |
|
Net Weight |
1.4Kg |
|

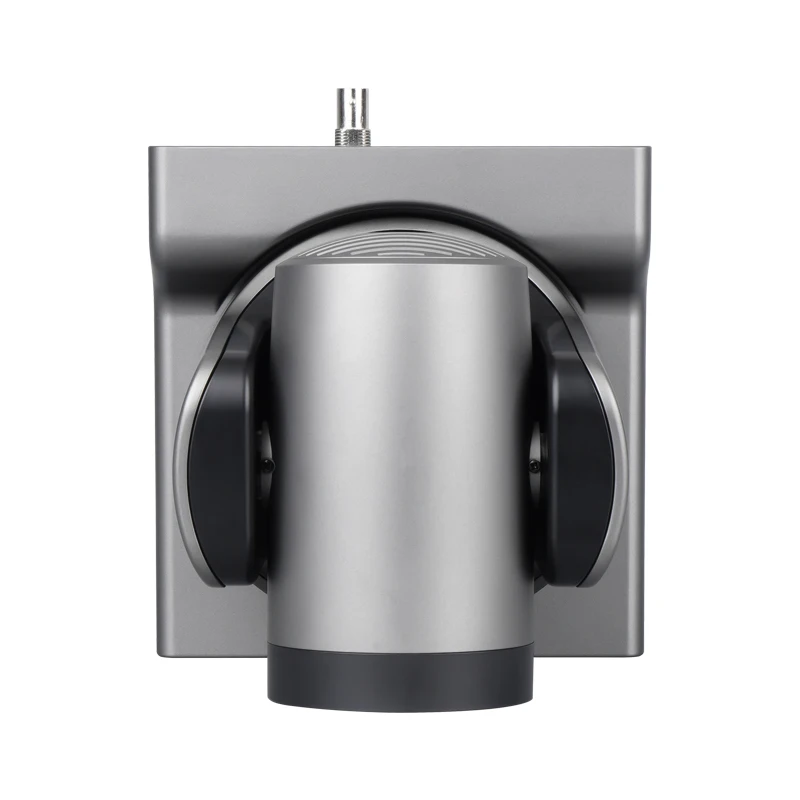

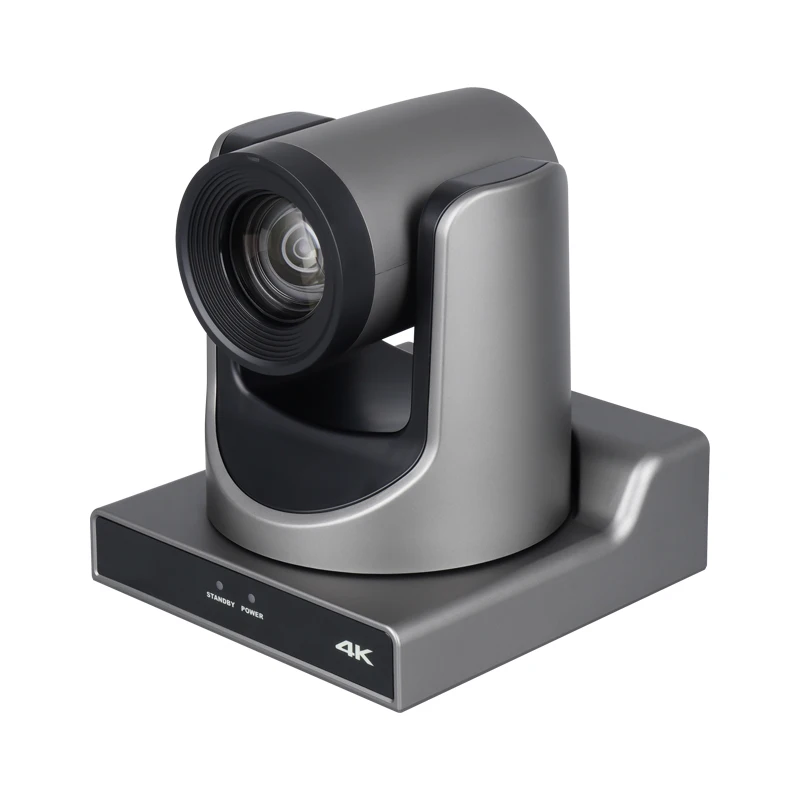

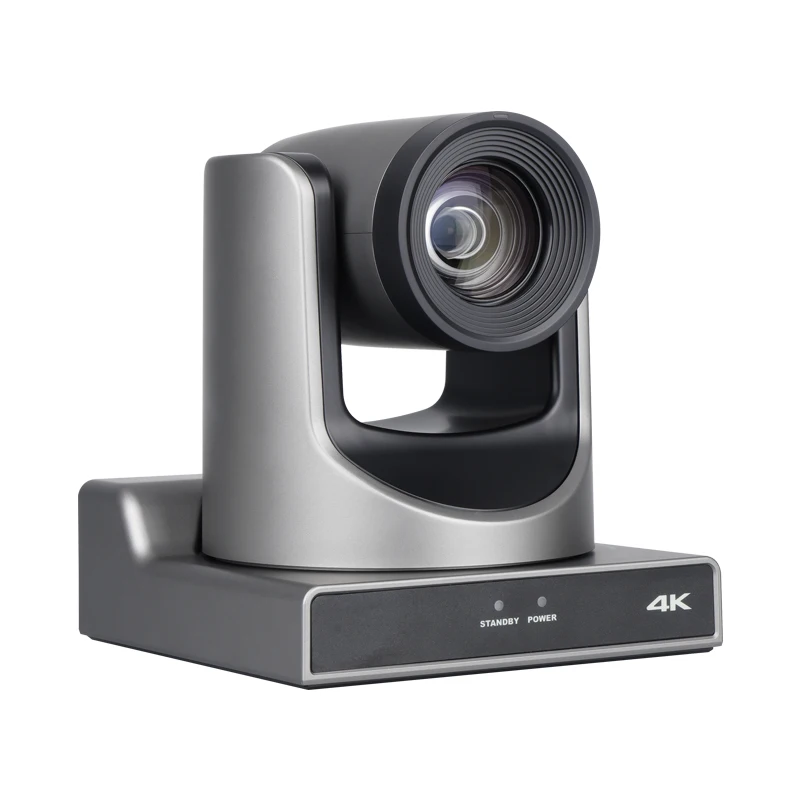

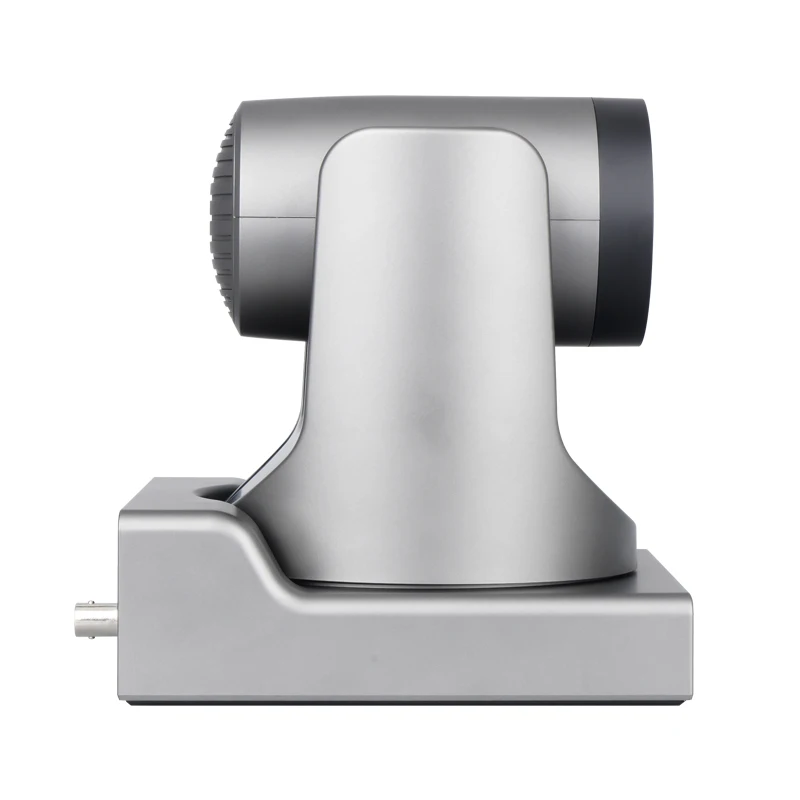

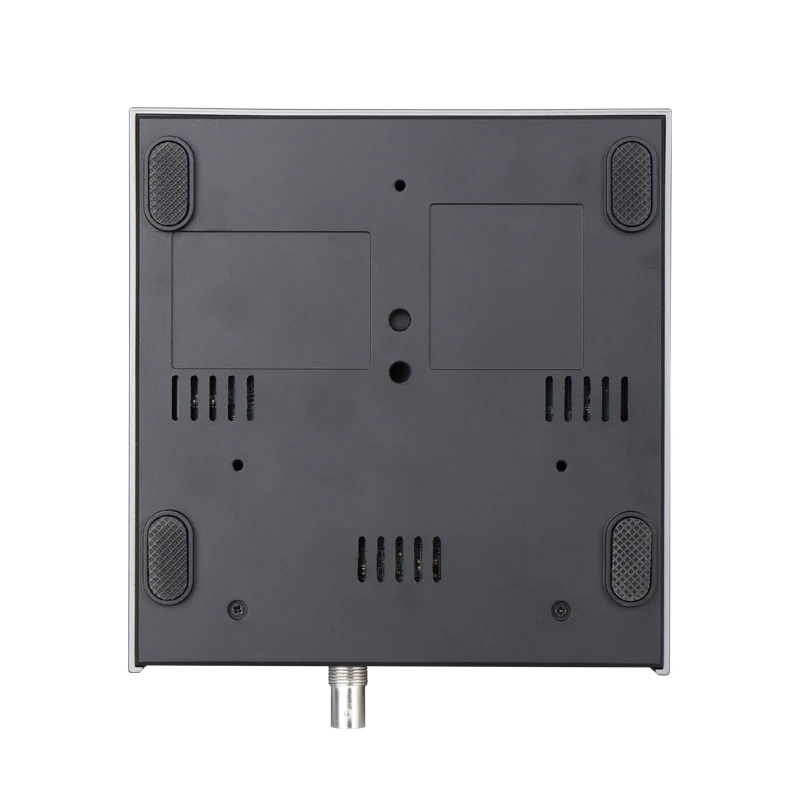

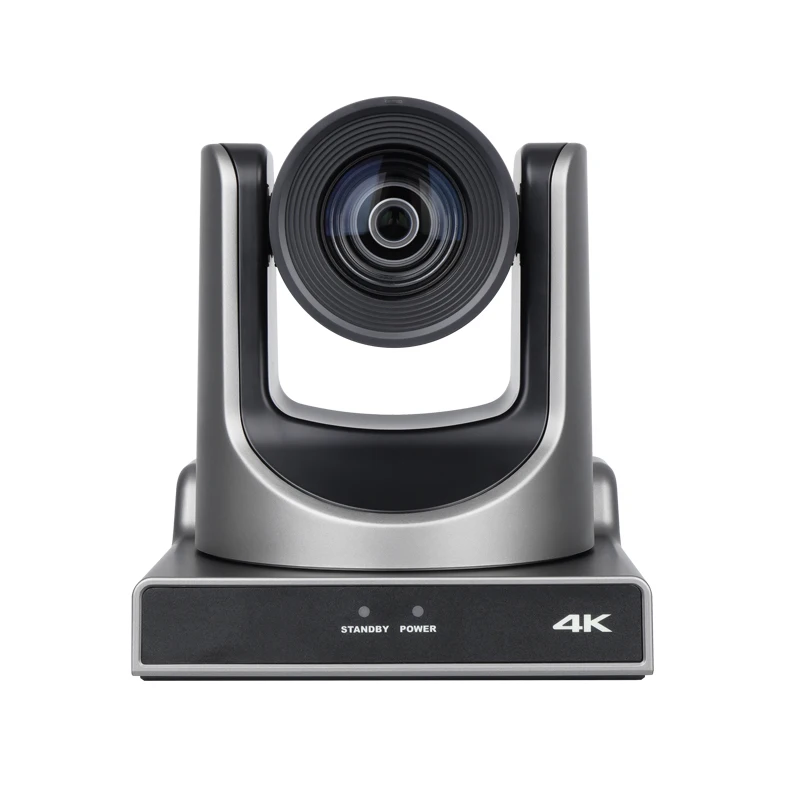

Product Photos:
