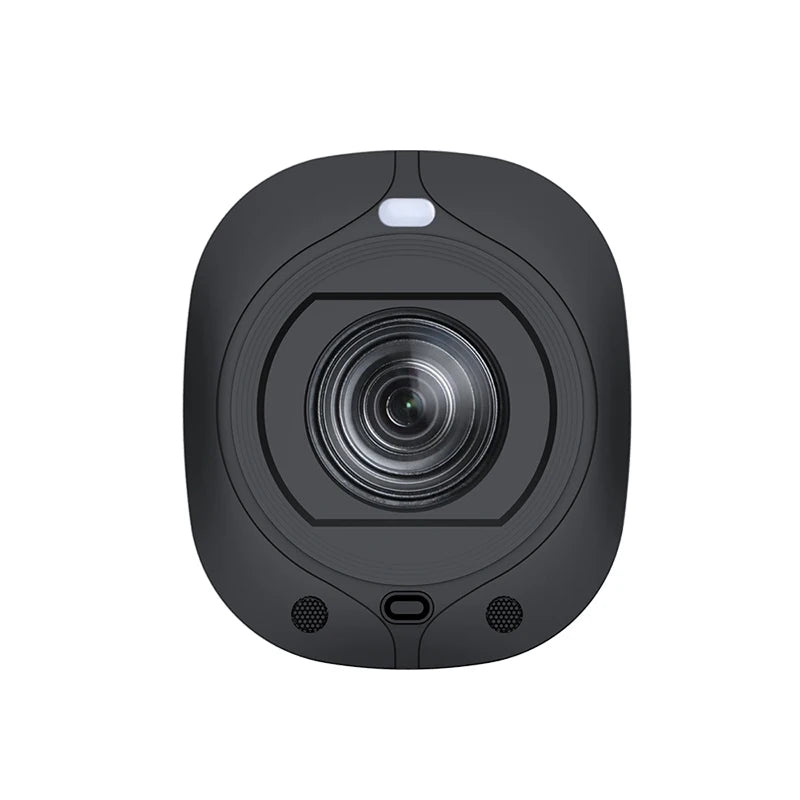

4K Ultra HD 20X Optical Zoom HDMI Box Camera IP Live Streaming SDI USB for Church Services Worship Education Video Conference
SUPER DEAL
£549.00
↓ Save £100.00
£649.00
Default Title
✓
SPECIFICATIONS
Audio Output: 1CH RCA
Brand Name: FLA
Certification: NONE
Color: black
Connectivity: IP/Network Wired
Digital noise reduction: 2D&3D digital noise reduction
Dimensions (L x W x D)(mm): 152mmX102mmX88mm
High Definition: 8.0 Megapixels
High-concerned chemical: None
IR Distance(m): No IR
Installation: Normal
Lens: 20X Optical Zoom
Lens (mm): 5-50mm
Lens Quantity: Single Lens
Megapixels: 8MP
Minimum Illumination(Lux): 0.1 Lux
Model Number: FLA-UH20T
Origin: Mainland China
Power Consumption(W): 10W
Power Supply: With Poe
Power Supply(V): DC12V / POE
Product name: HDMI Box Camera IP Live Streaming
Sensor: CMOS
Sensor Brand: Sony
Size: 152mm x 102mm x 88mm
Special Features: Vandal-proof
Style: 4K Video Conference camera
Supported Operating Systems: Windows 7,Windows XP
TF Card: None
Video Compression Format: H.264,H.265
Video Resolution: 4K/30 / 1080p/60 / 720P
Video output: HDMI+SDI+USB3.0+IP+RS232/422+Line in/out
Viewing Angle : 60°
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: 20x
Zoom type: Optical zoom
is_customized: Yes

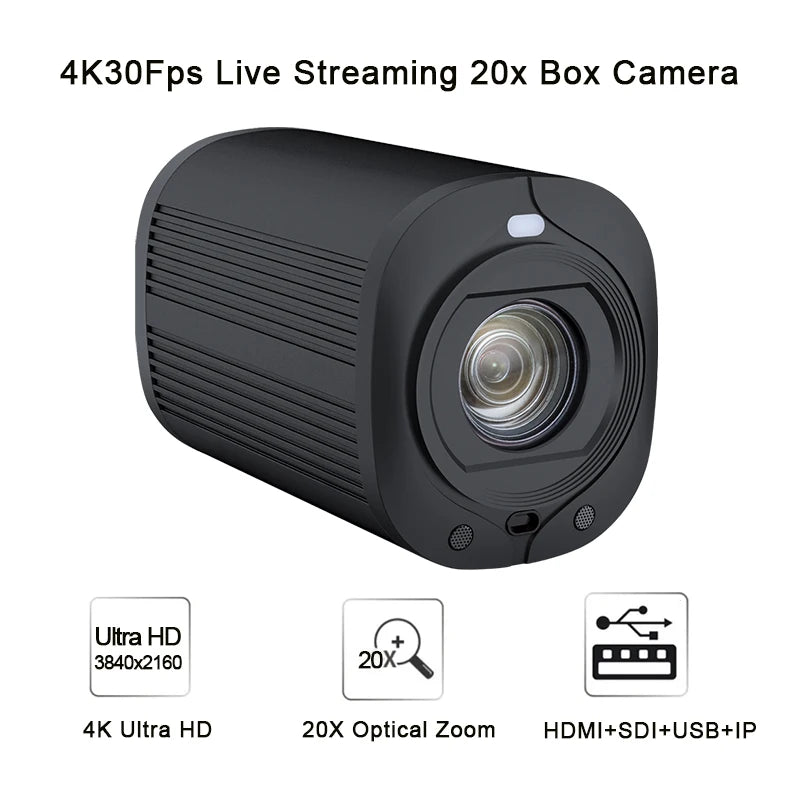

4K Ultra HD 20X Optical Zoom HDMI Box Camera IP Live Streaming SDI USB for Church Services Worship Education Video Conference
Main Features:

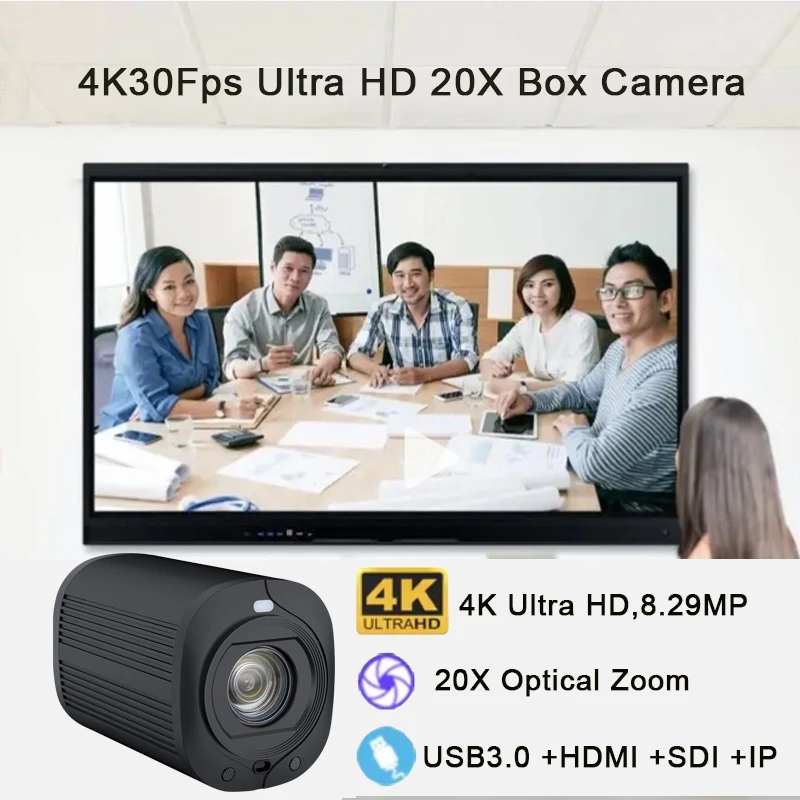

4K Ultra-high-definition
Applied SONY 1/2.8-inch 8.5 million high-quality CMOS image sensor with 8.29 million effective pixels, it can realize the maximum 4K30(3840x2160) ultra-high-definition resolution image output.
20x Optical Zoom

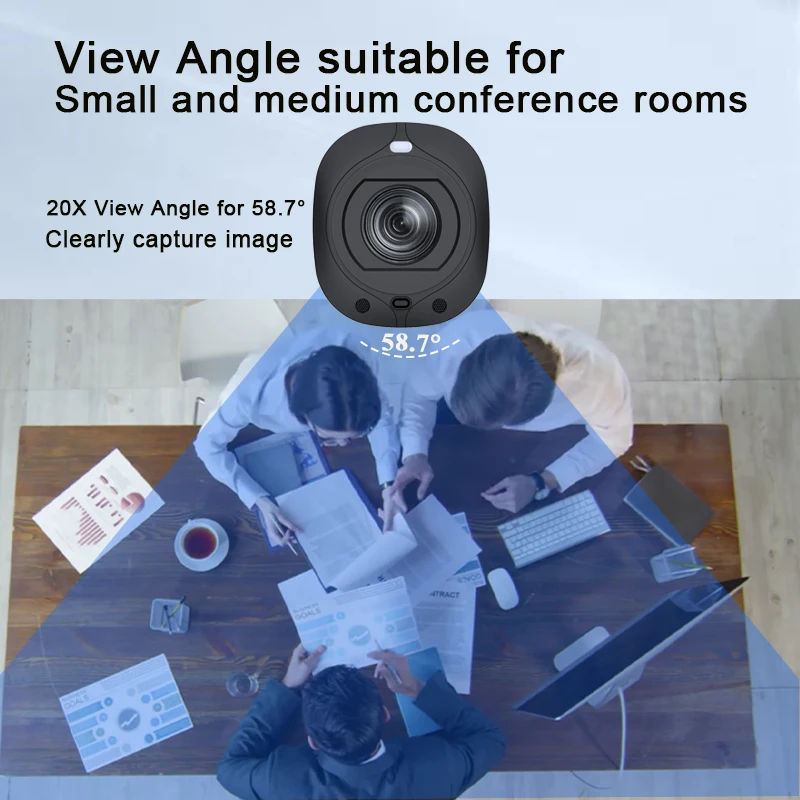

Equipped with a 20x optical telephoto lens, supports the mainstream horizontal viewing angle of 58.7°, satisfying video conferencing in large halls, blackboard writing in lecture halls.

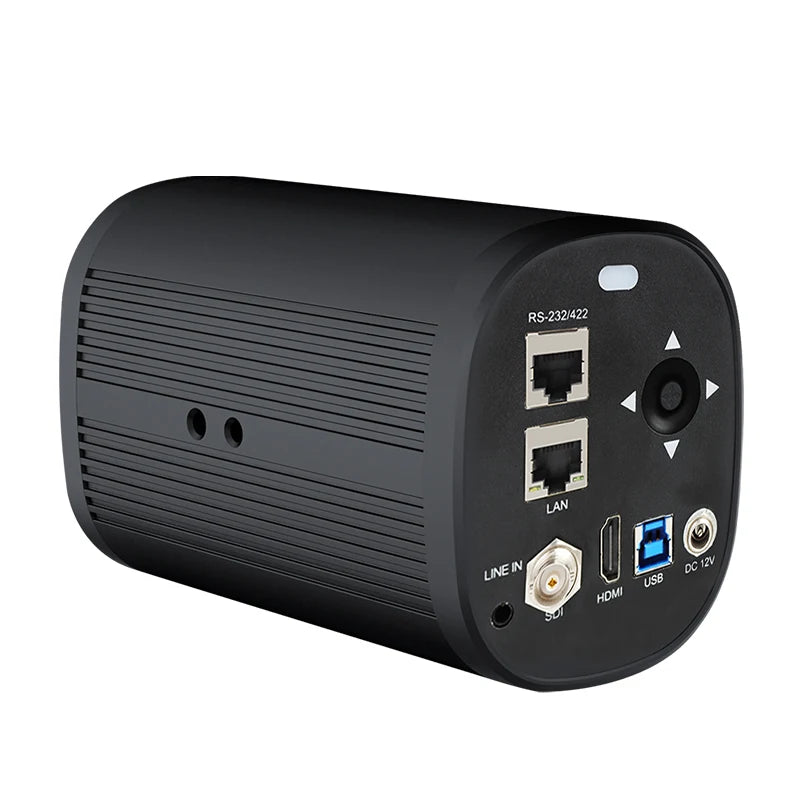

USB3.0+HDMI+IP+3G-SDI Full Interfaces
Compatible with mainstream video output interfaces.
Default version: HDMI+LAN can output 4K30 resolution at the same time.
Optional version: HDMI+USB3.0 can output 4K30 resolution at the same time.
Built-in Front and Rear All-round Tally Lights
Supports red and green standard tally indicators on the front and back.
Low Light
The new ultra-high signal-to-noise ratio CMOS image sensor can effectively reduce image noise under low-light conditions. 2D&3D digital noise reduction reduces image noise. In ultra-low light conditions, the picture can still be clean and clear, S/N Ratio of the image is higher than 50dB.
2.4g Remote Control Signal
2.4g remote control signal, achieves ultra-long-distance control.
Various Video Compression Standards
Different interfaces support YUY2, H.265, MJPG, H.264 multiple video compression formats.
Various Network Protocols
Supports ONVIF, SRT, RTSP, RTMP and NDI® HX2 ect.
Multiple Control Protocols
Supports VISCA (including VISCA Over IP), PELCO P/D protocol, NDI®; automatically identify protocols.
Rear Multi-dimensional Remote Control 5D Small Joystick
Supports menu selection, zoom and other functions.
Technical Parameter:
Model Number |
FLA-UH20T |
Camera | |
Resolution |
HDMI: 4K30/25, 1080p60/59.94/50/30/29.97/25, 720p60/50 |
Image Sensor |
SONY 1/2.8" STARVIS CMOS |
Pixels |
8.50 Megapixels, 8.29 Effective Megapixels |
Scan Mode |
Line by line |
Lens |
20X Optical Zoom, f=5.2mm(W)~104mm(T) |
Horizontal View Angle |
58.7°(W)~3.2°(T) |
Vertical View Angle |
32.2°(W)~1.8°(T) |
Focus System |
Auto, Manual |
Shutter Speed |
1/25s ~ 1/10000s |
Minimum Illumination |
0.1 Lux @ (F1.5, AGC ON) |
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking, Manual |
Backlight Compensation |
Support |
Digital Noise Reduction |
2D&3D Digital noise reduction |
S/N Ratio |
≥50dB |
Preset | |
Preset Positions |
9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC |
Preset Accuracy |
0.1°±10% |
USB | |
Protocol |
UVC 1.1 |

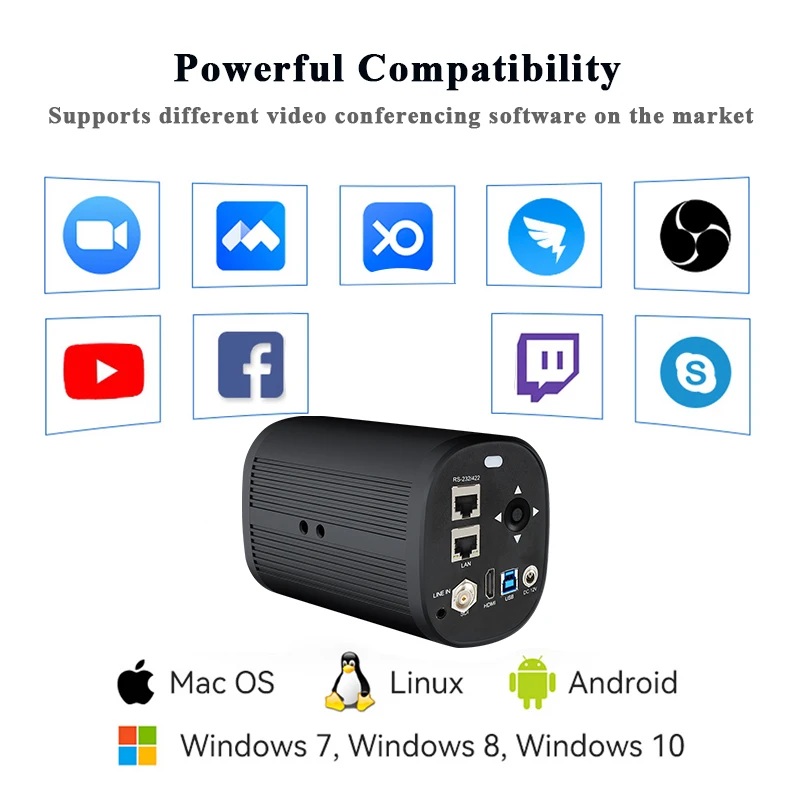

Operating System |
Window7 and above, MacOS, Linux, Android |
Video Compression |
YUY2, MJPEG |
Resolution |
1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 (USB defaults to 4K is optional) |
Frame Rate |
Max.30 |
UVC Control |
Support |
LAN | |
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, NDI®HX2 (Optional) |
Video Compression |
H.264, H.265 |
Code Stream |
Main code stream*1, Sub code stream*1 |
Main Stream Resolution |
1920*1080 |
Sub Stream Resolution |
640*480, 640*360, 352*288, 320*240, 176*144 |
Bitrate Control |
VBR, CBR |
Audio | |
Audio Compression |
AAC |
Audio Bit Rate |
128kbps |

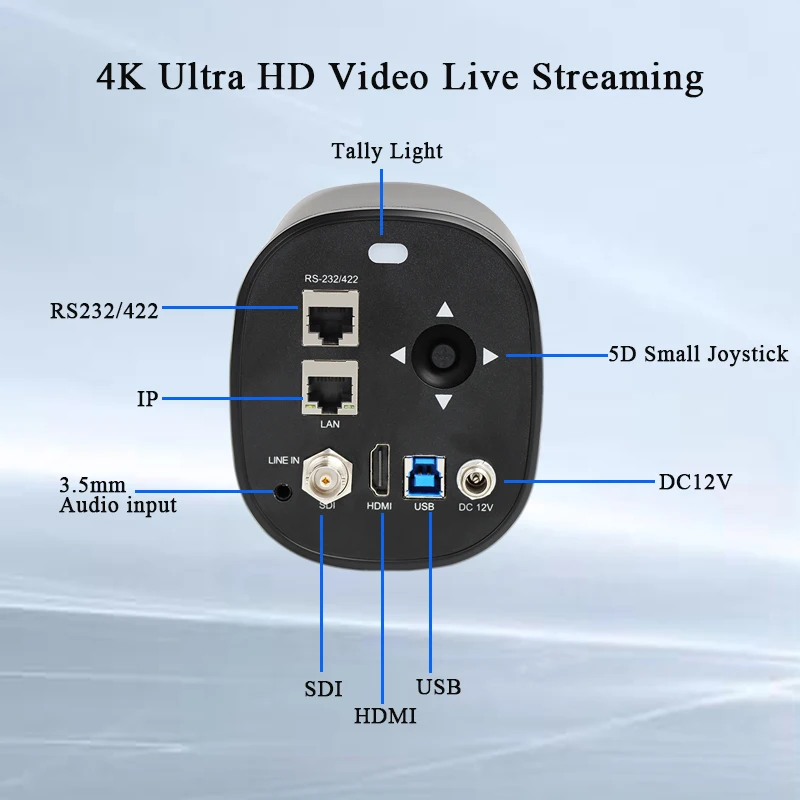

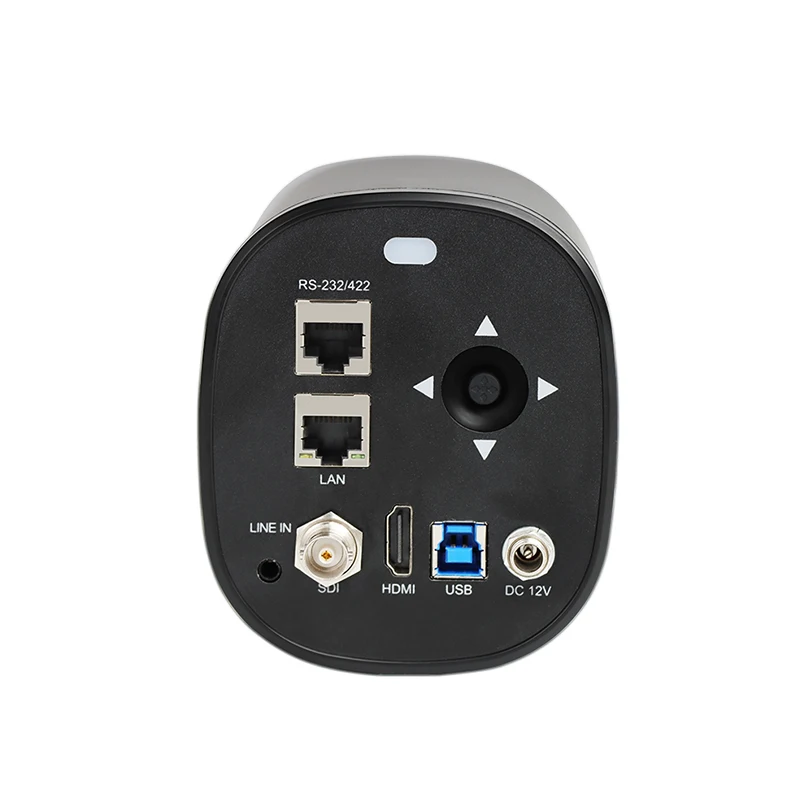

Interface | |
HDMI Interface |
1 Line, HDMI: Version 1.4 |
SDI Interface |
1 Line, 3G-SDI |
USB Interface |
1 Line, USB3.0, Type-B Socket |
Network Interface |
1 Line, RJ45: 10M/100M adaptive Ethernet port |
Audio Interface |
1 Line, Line In, 3.5mm |
Serial Interface |
1 Line RJ45 interface, support RS232/RS422/RS485: VISCA/Pelco-D/Pelco-P. |
Power Interface |
DC12V IEC 60130-10 Type A |
General Specifications | |
Tally Light |
Support |
Input Voltage |
DC 12V |
POE |
802.3af(Optional) |
Input Current |
Max.3.0A |
Power Consumption |
Max.36W |
Operating Temperature |
0~40℃ |
Storage Temperature |
-10~60℃ |
Color |
Black |

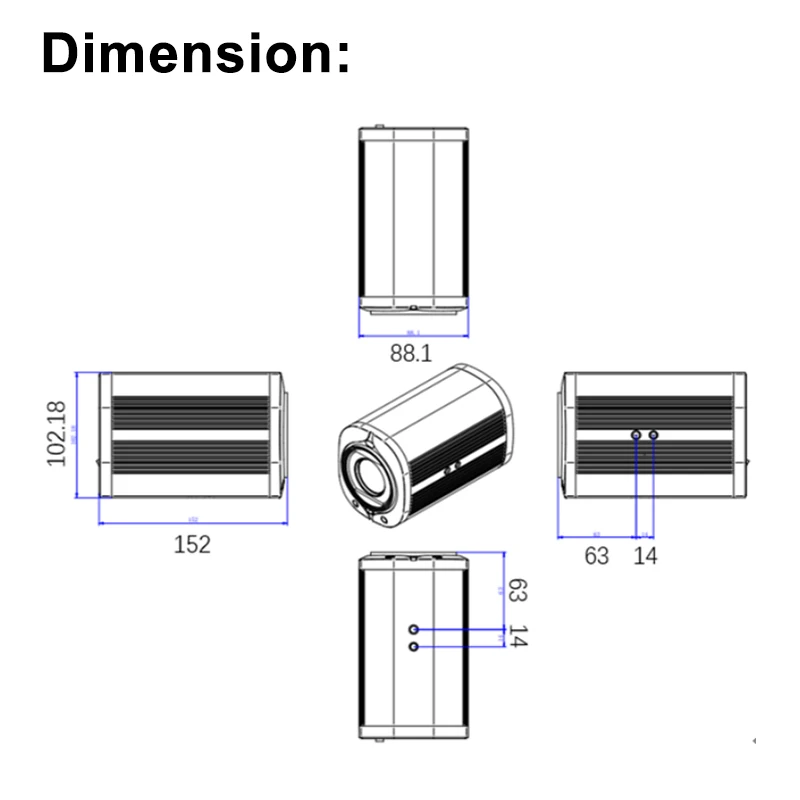

Dimension |
(W)88*(D)152*(H)102mm |
Weight |
1.5kg |
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, Serial port adapter cable, Bracket |
Product Photos:
