SPECIFICATIONS

Application scenario: Family, Farm, Factory, Office, Supermarket

Application2: Garage, Light, Automated curtains, Fan, Door, Gate, LED, Lamps, Motor

Application3: Car Sunroofs Control, Mando Garaje

Application4: Caring for the elderly, children, women, pregnant women

Brand Name: WenQia

Certification: RoHS,CQC,CE,CCC

Choice: yes

Current: 10A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Features: Wireless remtoe control,Multi control,Tempered glass wall panel

High-concerned chemical: None

Is Smart Device: no

Item Type: SWITCHES

Material: Plastic

Max current: 10A

Model Number: 2201M+WP08B

Modulation Mode: ASK superheterodyne wireless reception

Origin: Mainland China

Quiescent current: less than 5mA

RF frequency: 433MHz

Receiver size: 1.89*1.65*0.9 in(48*42*23 mm)

Receiving sensitivity: more than 97dbm

Remote Distance: Up to 50m in open space

Remote operating mode: Toggle/ Latched Mode

Shell: YES

Support encoding: 1527 Leaning code

Switch Type: Remote control

Wall Switch battery: 1pcs 27a12v battery(Not include)

Wall Switch color: Black

Wall Switch features: HD tempered glass panel

Wall Switch features2: Touch sensor on off

Wall Switch size: 86*86*13 mm(3.39*3.39*0.51 in)

Warranty: 1 Year RF 433 MHz 86 2CH Wall Panel Remote Smart Home Led Light Switch

Working temperature: -30~+80 Celsius

Working voltage: AC 90-240 V 50-60HZ

semi_Choice: yes

Luxury black tempered glass panel,can stick on the wall

Light Switch Parameter:
Size: 1.89*1.65*0.9 in(48*42*23 mm)
Working Voltage: AC 85-240 V 50-60HZ
Max current: 10A
Frequency: 433MHz
Mode: Toggle
Feature: Small size,can hide into box
Code: 1527 learning

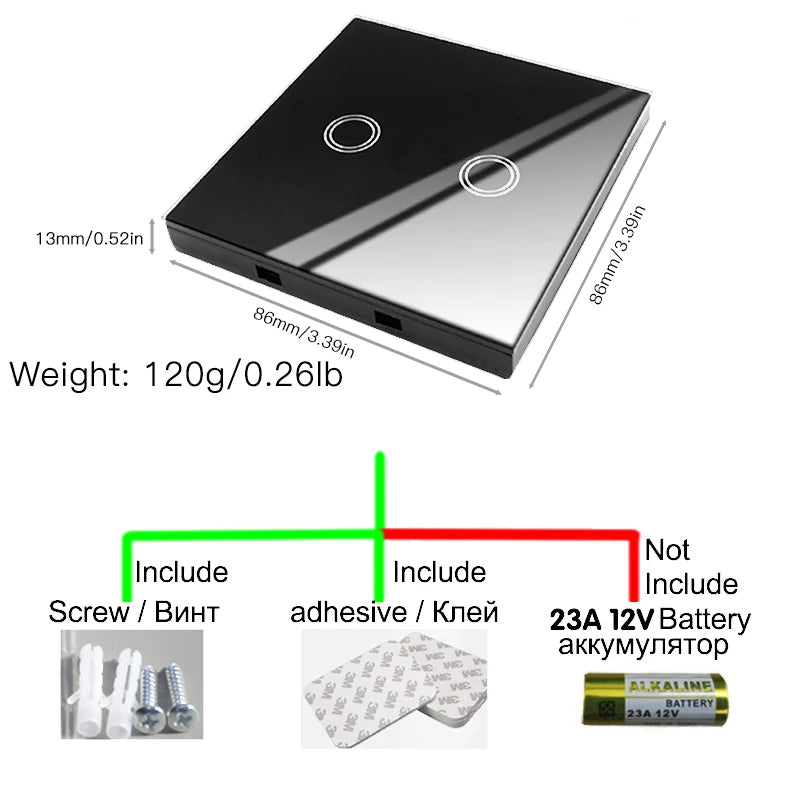

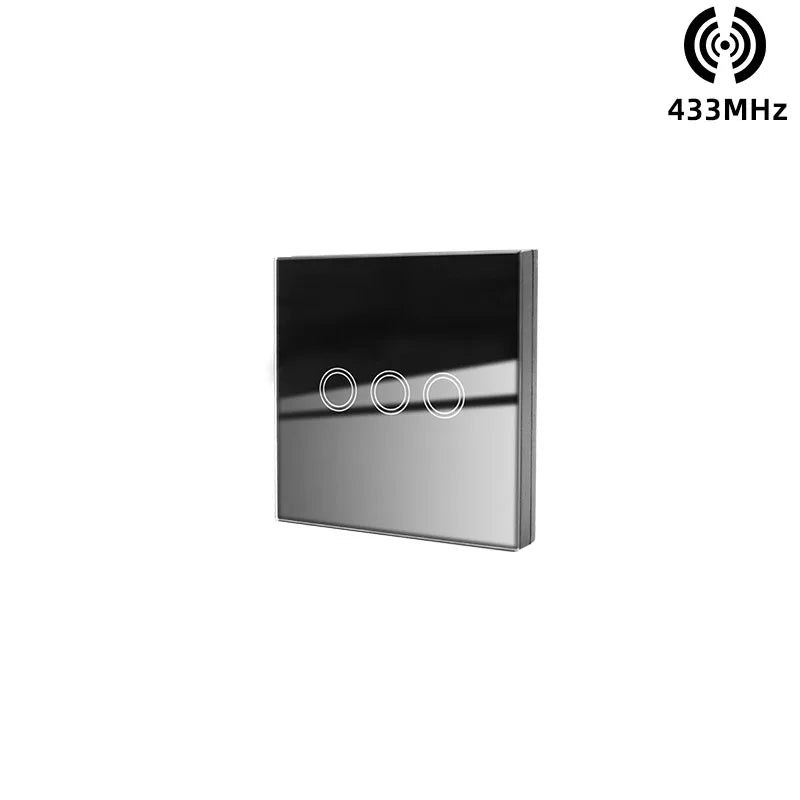

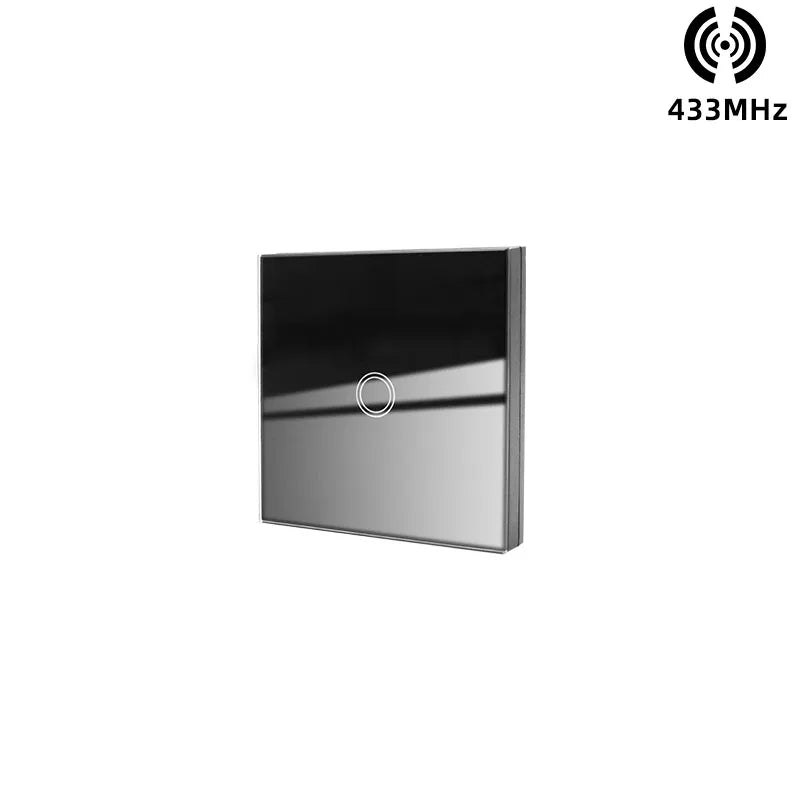

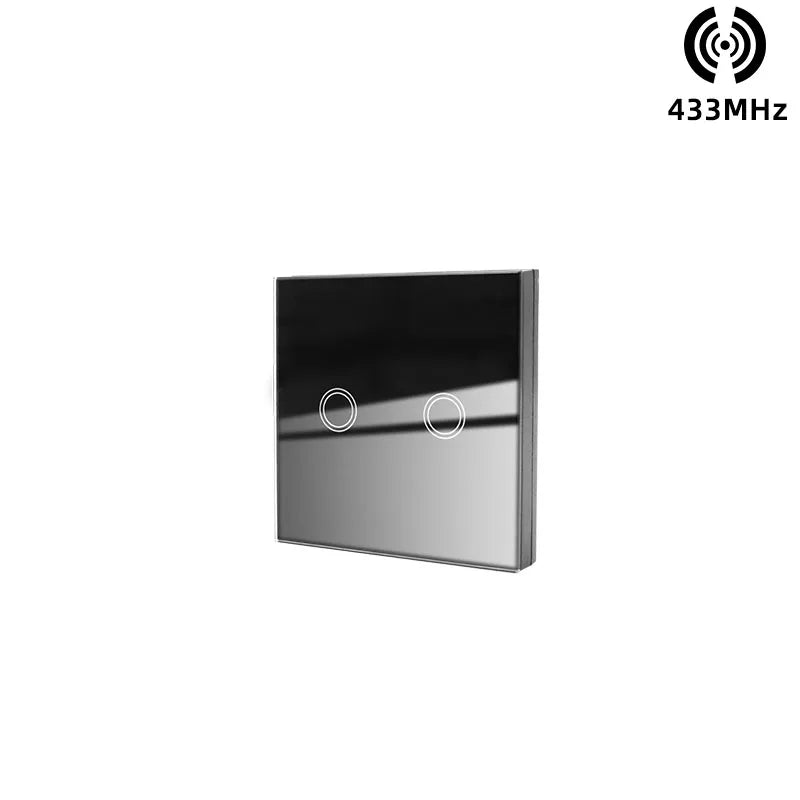

Wall Switch Parameter:
Size: 86*86*13 mm(3.39*3.39*0.51 in)
Battery:1pcs 27a12v battery(not include)
Working Voltage: 3V
Working Method: wireless remote control
Button: 1/2/3
Feature: HD tempered glass panel
Feature2: has double side tapes and screws
Code: 1527 learning

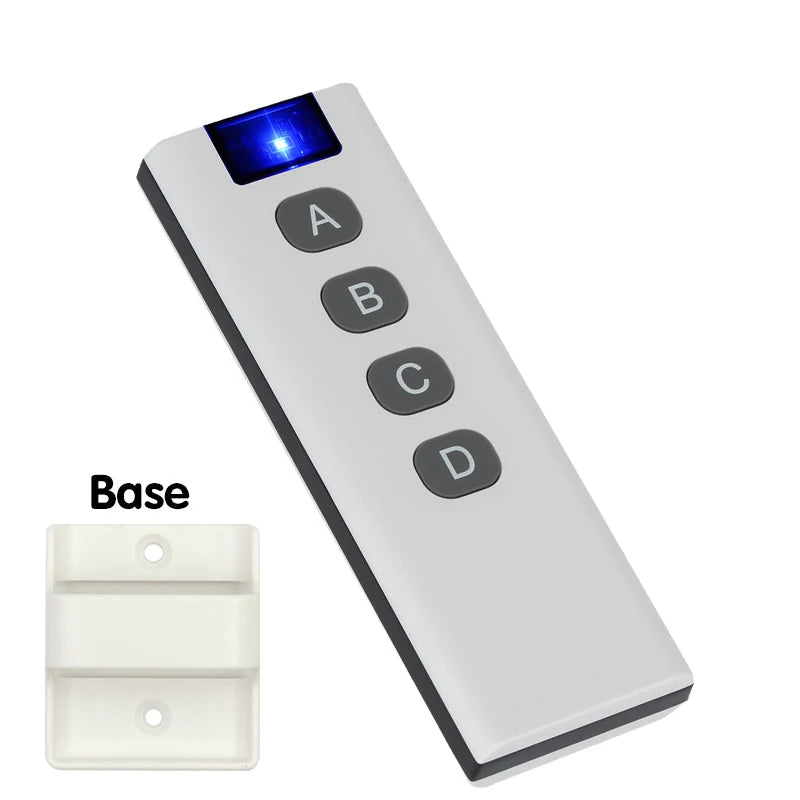

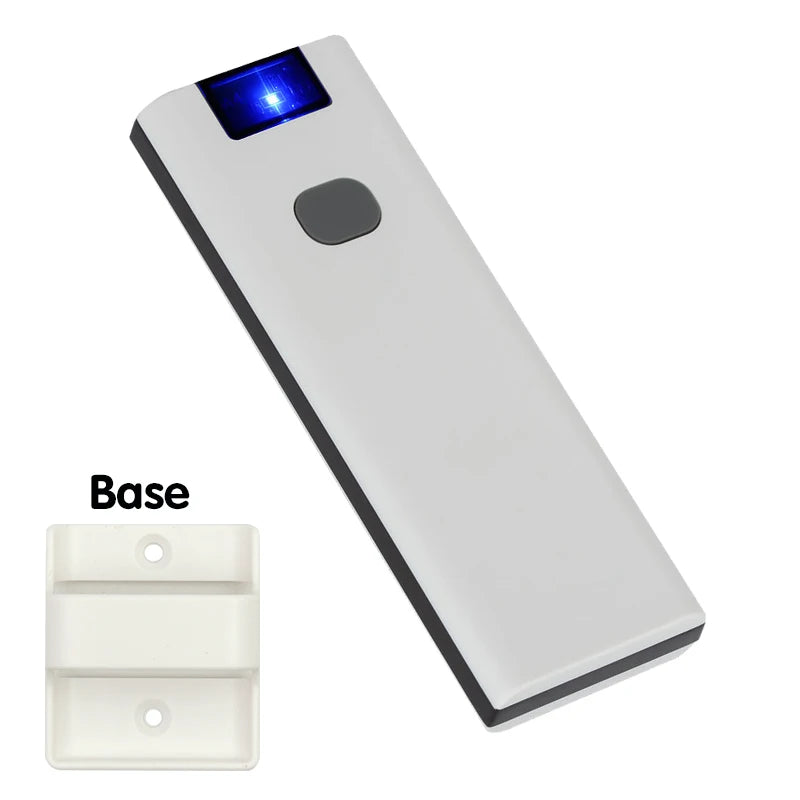

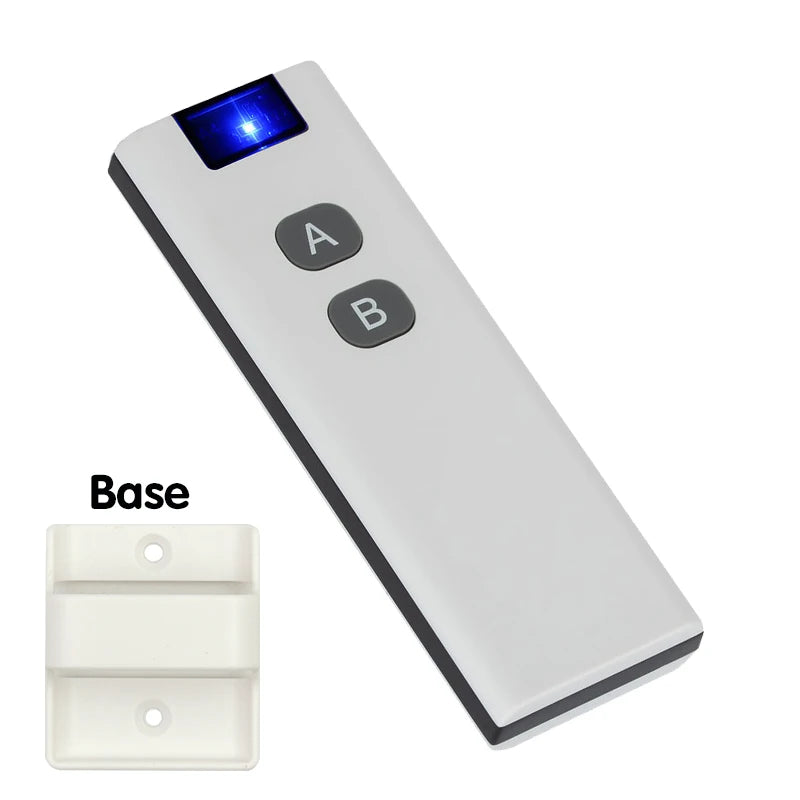

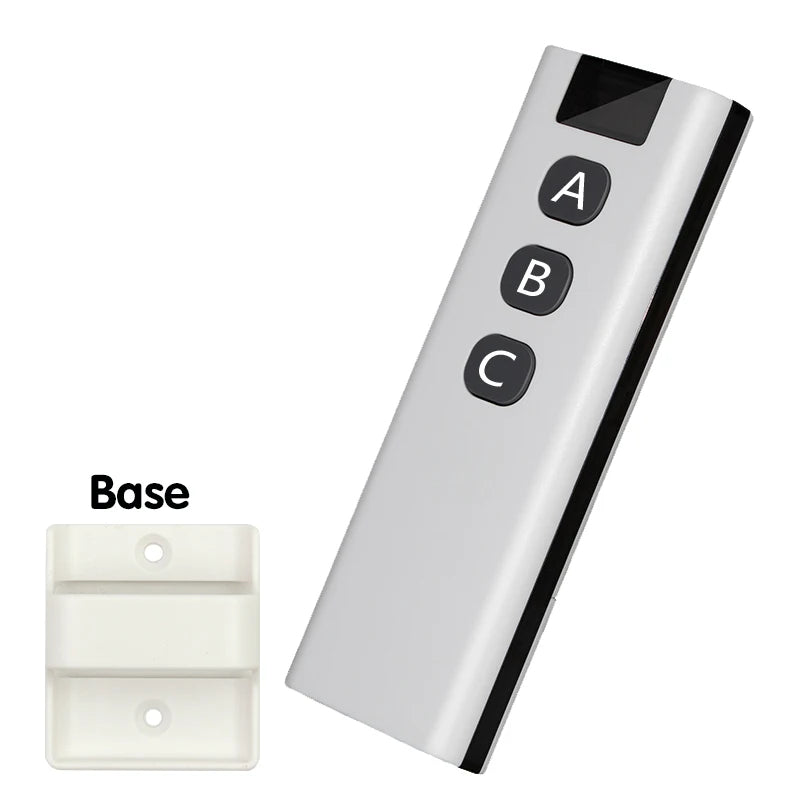

Remote Parameter:
Size: 110*40 mm
Battery:1pcs 27a12v battery(not include)
Working Voltage: 3V
Working Method: wireless remote control
Button: 1/2/3/4/10
Feature: Has base
Code: 1527 learning

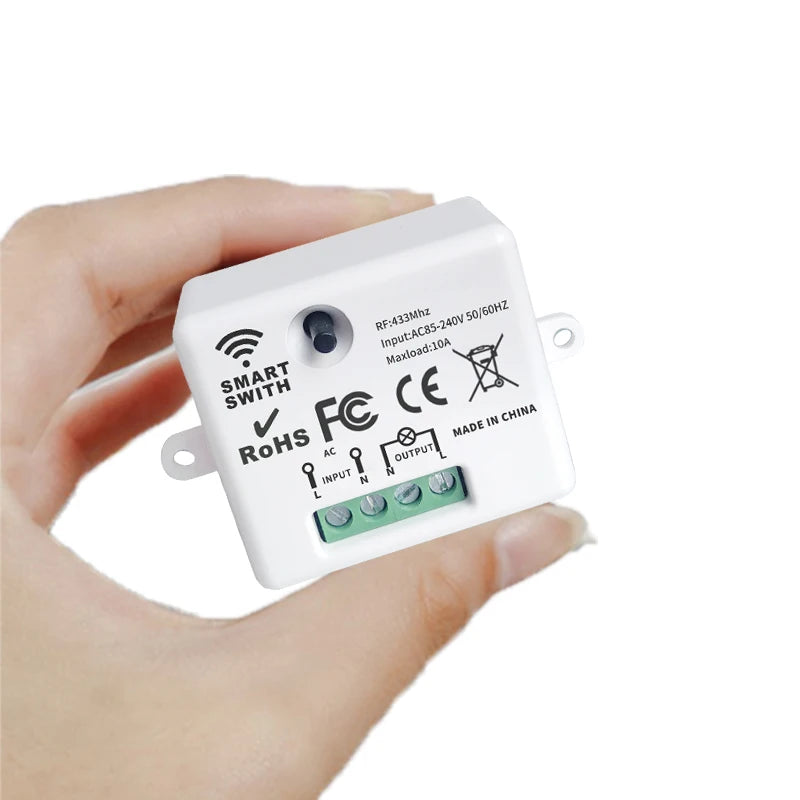

Mini size light switch
Can hide into box

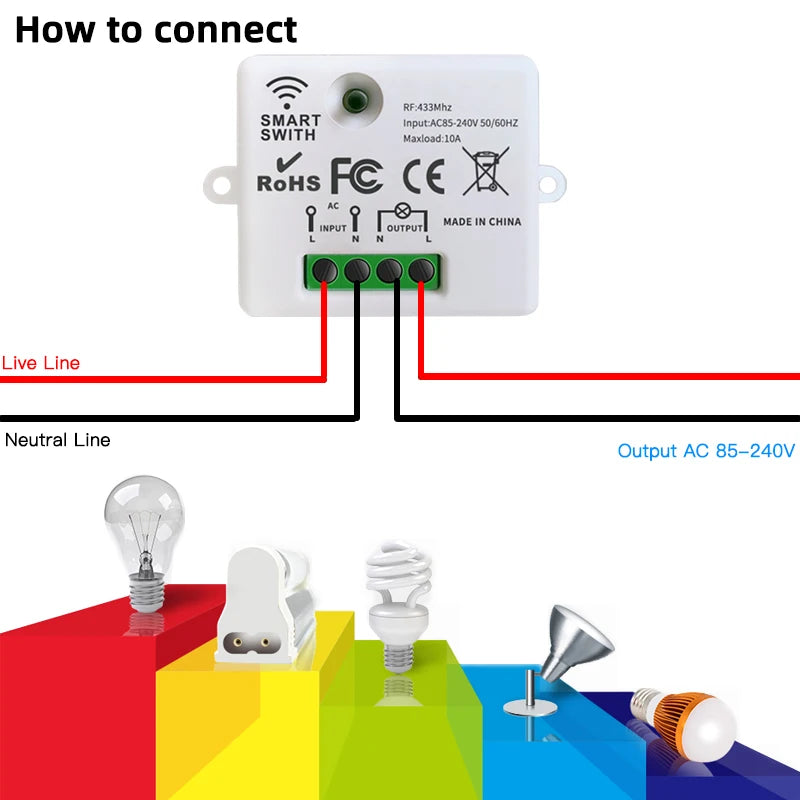

How to Connect
You need L and N line for power supply.L and N line cannot be reversed



Work in rf mode:
Toggle mode:
--Press wall switch button,relay work;press same wall switch button again,relay stop
How to pair:
Press learning button 2times,press wall switch once,Toggle mode OK
How to Clean data:
Press learning button 8times,all wall switch/remote cannot control this receiver
Why do i need to clean data?
Some times the receiver on/off automatically,there maybe an interference around,so please clean data and pair with wall switch/remote again

Use in many places
AC 85-240V 10A receiver has small size,you can use it to control many different lights.But it doesnot have dimmer function

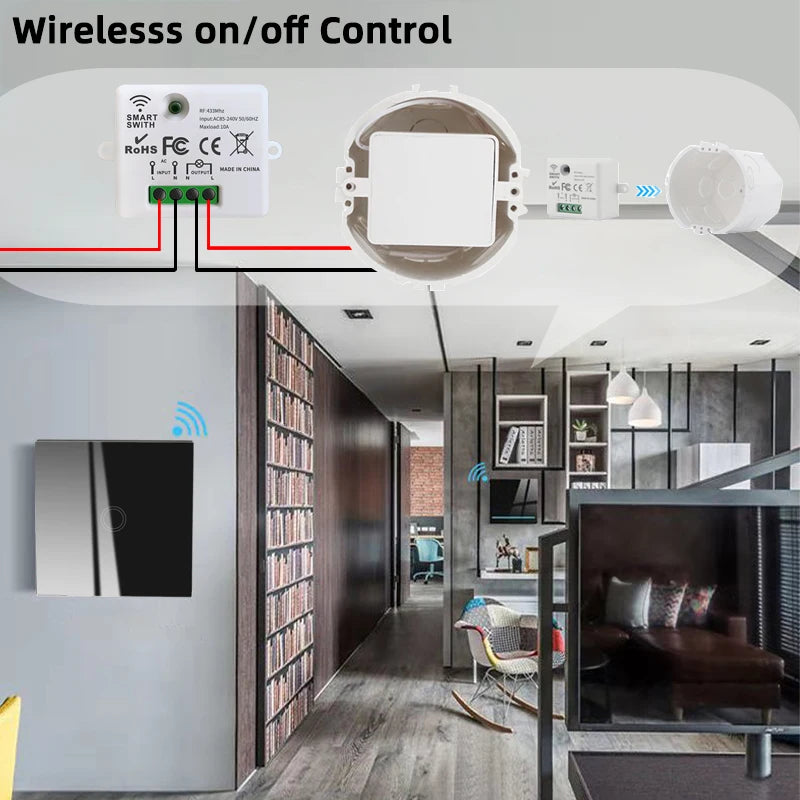

Wireless ON/OFF control
After you pair with wall switch/remote,you can control this receiver wirelessly

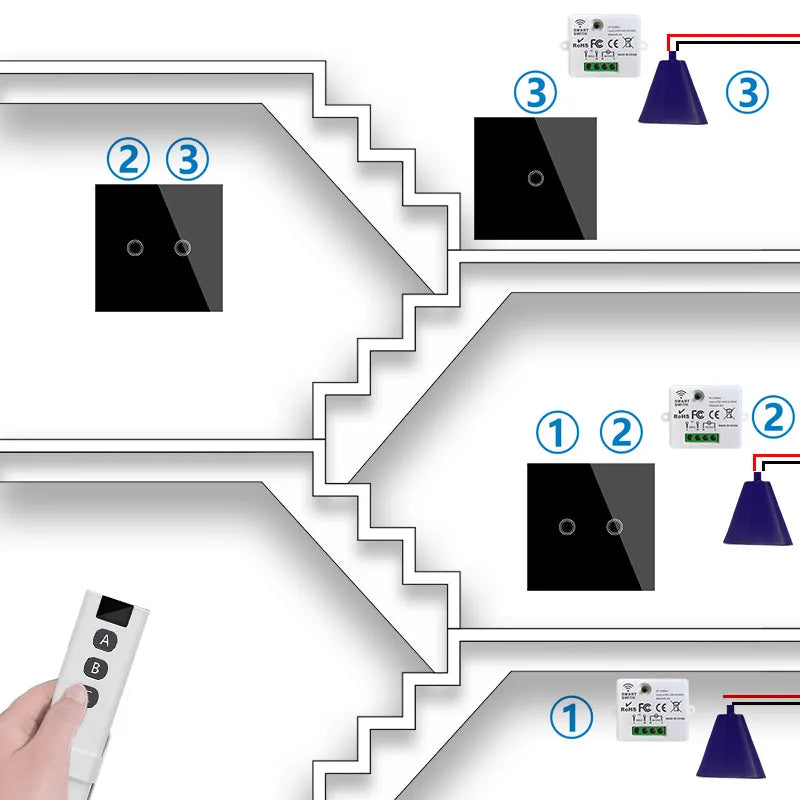

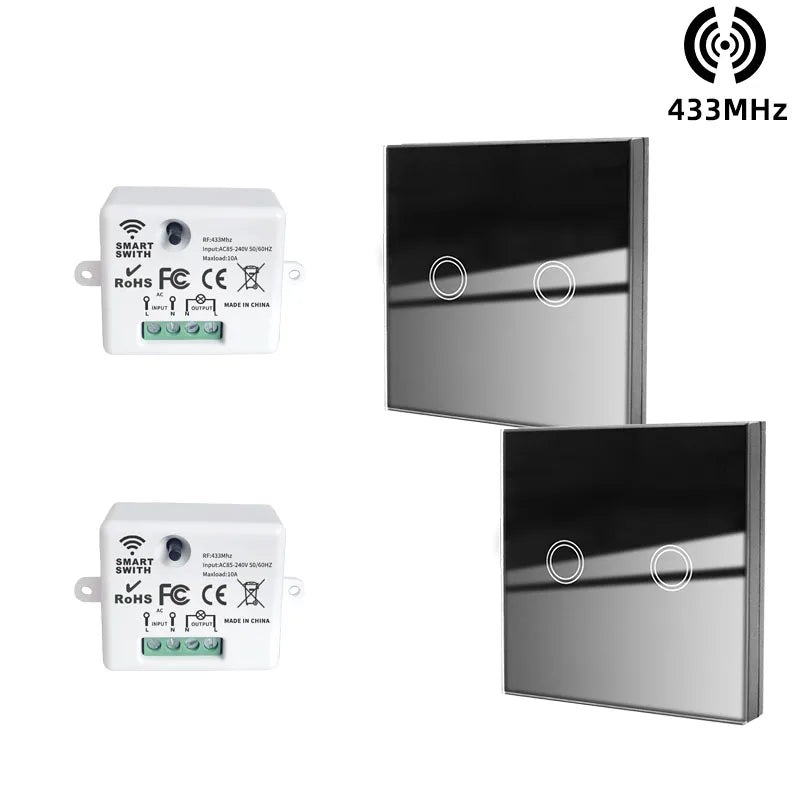

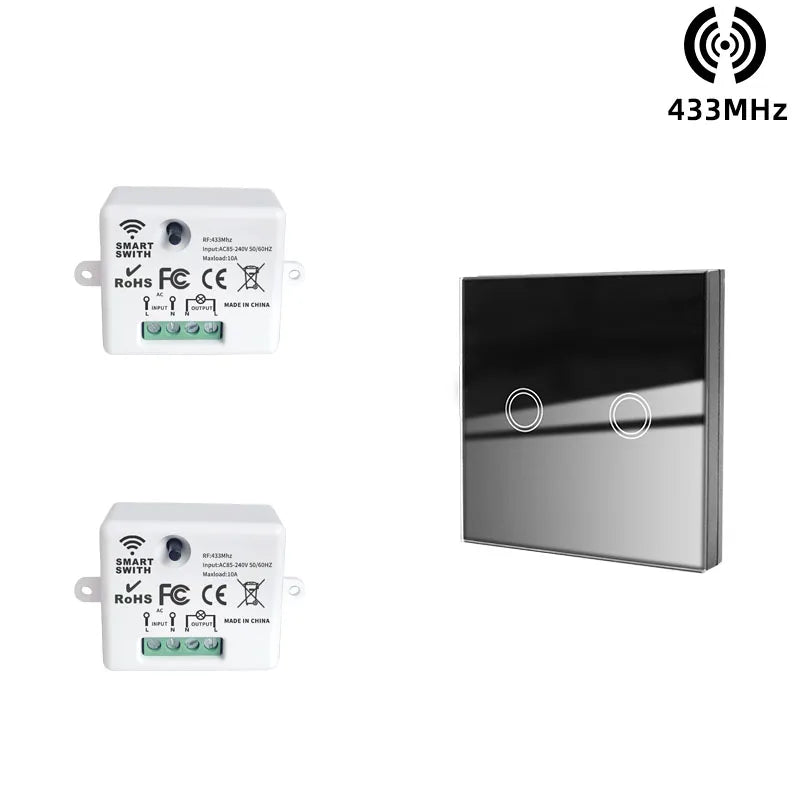

Multi control
You can use remote and wall switch to control one receiver together.Also,you can use a multi buttons wall switch/remote to control many receivers at the same time

About Shipping
We will pack them well and ship it out within 48 hours after you paid the order.It is fast and safe.If you need fast shipping method like DHL,UPS,FEDEX,please contact with us.

Q&A
1.What kind of battery does this wall switch use?
It uses 1pcs 27a12v battery.It is smaller than 23a12v battery.

2.Can i use my own transmitter to control this receiver?
Our receiver is 433mhz and 1527 learning code product.If the frequency and code are same,they can work well with each other.

3.The receiver cannot work,what's going on?
First,please make sure your connection is right.It needs both L and N line.
Then,you need to pair with wall switch/remote
If there is any problems about the product,we will help you to solve it.

4.I'm a buyer,can i get a wholesale price?
Of course sir.Please contact with us,we will give you the best price.

5.Can i use remote and wall switch to control same receiver?
Of course sir.One receiver can be controlled by 20pcs remotes or 10pcs wall switches

Note
1.professional electrician should operate this product. When powering on, do not touch the antenna. Install this product without opening the protective cover
2.this receiver can work well with other 433mhz 1527 code remote.U can also use remote in our store to control this receiver.
3.When the voltage of the wall switch is insufficient, please change the battery in time (the remote distance becomes closer when the wall switch battery voltage is insufficient).
4.When using wireless electronic products, care should be taken to avoid metal masks, large electronic devices, electromagnetic fields, etc., which have strong interference sources, to avoid remote control and short receiving distance or to work normally.

Please contact with us if you have any questions.We will do our best to help you.Leave a 1star feedback cannot help anything.We always checked the product before shipping,so plase donot worry about the quality.Thank you.
