3-6GHz RF Phase Shifter 5.8G Digital Phase Shifter C-Band Microwave For HAM Radio Control Signal Phase Wireless Communication
SCORE BIG SALE
£172.00
↓ Save £97.00
£269.00
✓
SPECIFICATIONS
Brand Name: DykbRadio
Certification: NONE
DIY Supplies: Electrical
Data Record: No
Electronic: No
High-concerned chemical: None
Model Number: 5.8G Digital Phase Shifter
Origin: Mainland China
Output Voltage: 5V
RF Phase Shifter: 5.8G Digital Phase Shifter
Semi-finishedproduct: Yes
Size: Microwave Phase Shifter
Type: 3Ghz-6GHz RF Phase Shifter
3-6GHz RF Phase Shifter 5.8G Digital Phase Shifter C-Band Microwave Phase Shift Module

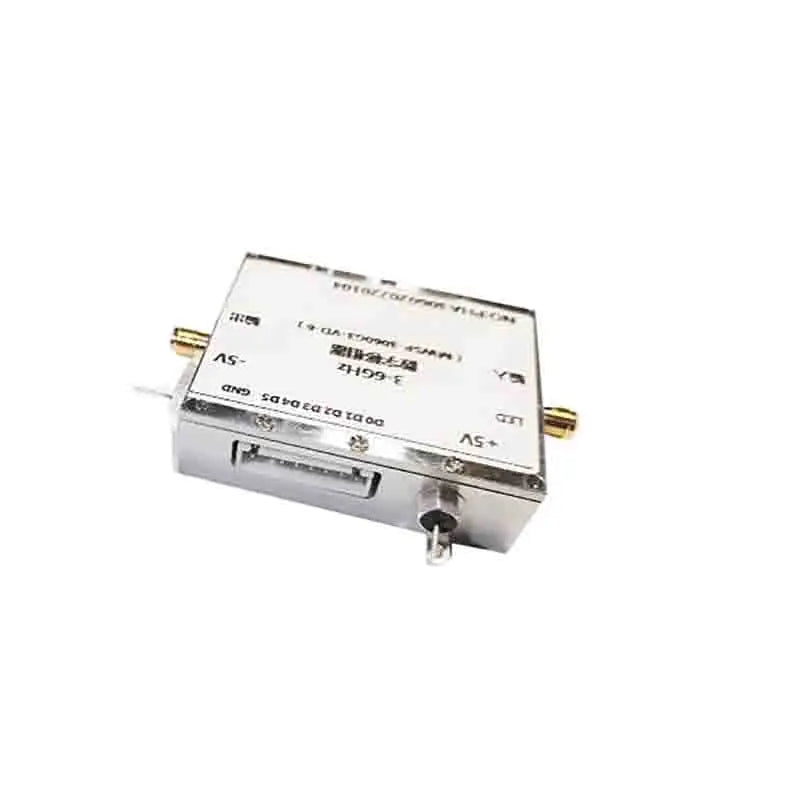

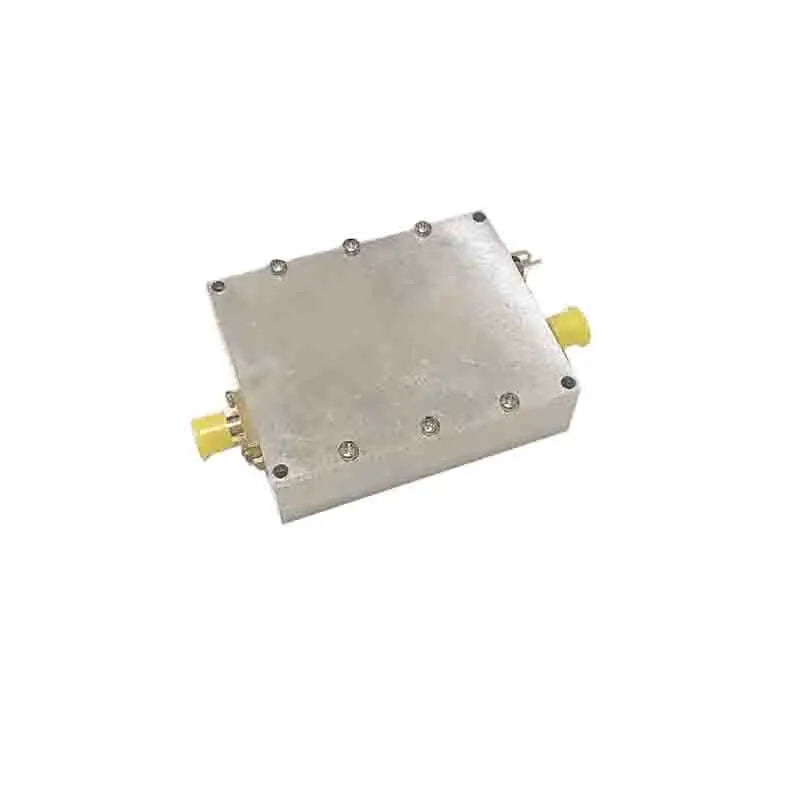

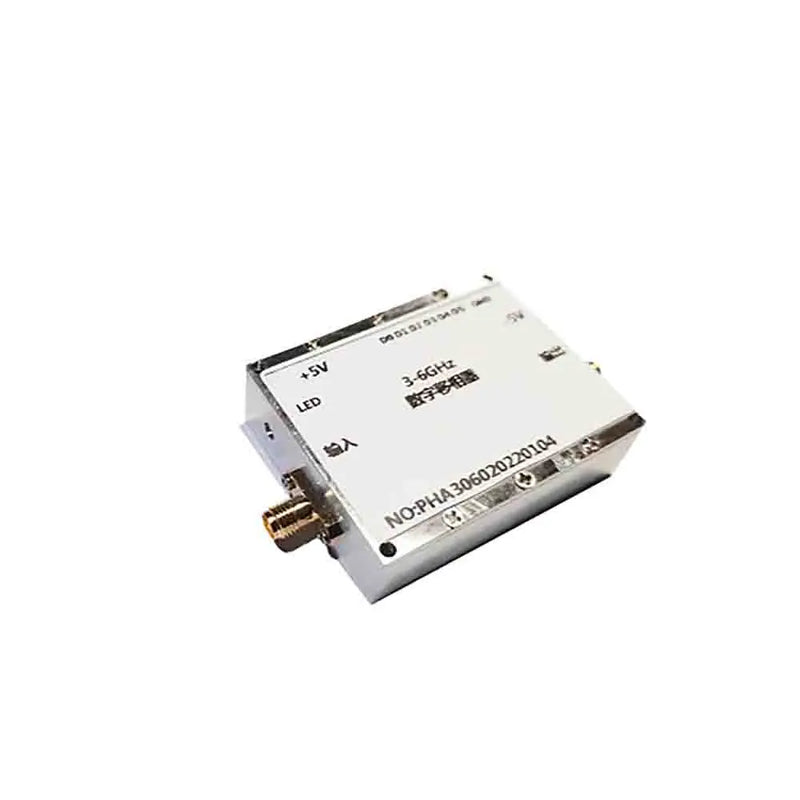

The phase shifter is a device that controls the phase change of the signal, and is widely used in radar systems, microwave communication systems, and measurement systems. This module adopts digital program control technology to realize the phase change of input signal, and adopts 6bit parallel control mode to meet high precision requirements. At the same time, the built-in adjustable gain module can make up for the signal attenuation caused by the insertion loss of the module. With CNC shell, this module has excellent electromagnetic shielding performance. With mounting holes, it can be used with equipment.
Module parameters:
1. Working frequency: 3-6GHz (built-in front-end amplifier);
2: Power supply: ± 5V power supply;
3: Phase control: 5.625 ° -354.375 °;
4. Phase accuracy: 5.625 ° high accuracy;
5. Control method: parallel control;
6. Control interface: 2.54 spacing connector;
7. Control digit: 6bit;
8. Transmission gain: 0 to+5dB (settable);
9. Interface: SMA-K (customizable);
10. Module size: 58 * 46 * 17mm (without connector)

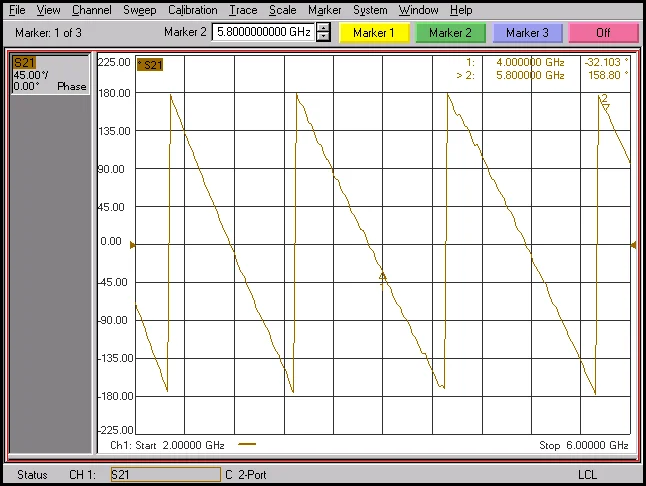

Insertion loss test (preamplifier with gain output):
During the test, the input end was connected in series with 20dB attenuator:
Phase testing:
Set to 000000:
Setting 100000:
Setting 010000:
Setting 001000:
Setting 000100:
Position 000010:
Setting 00000 1:
Setting 111111
