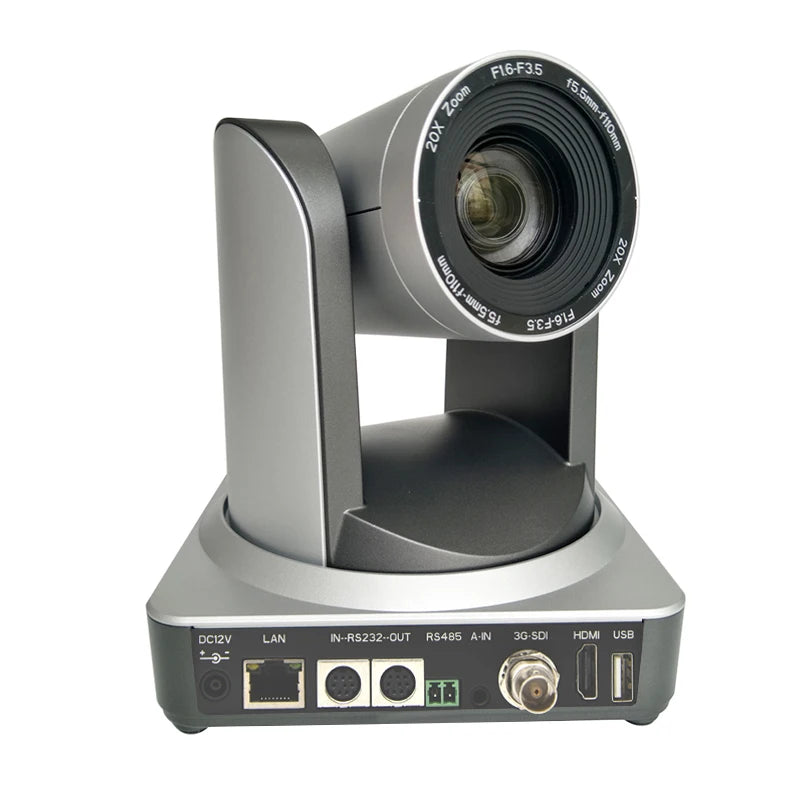

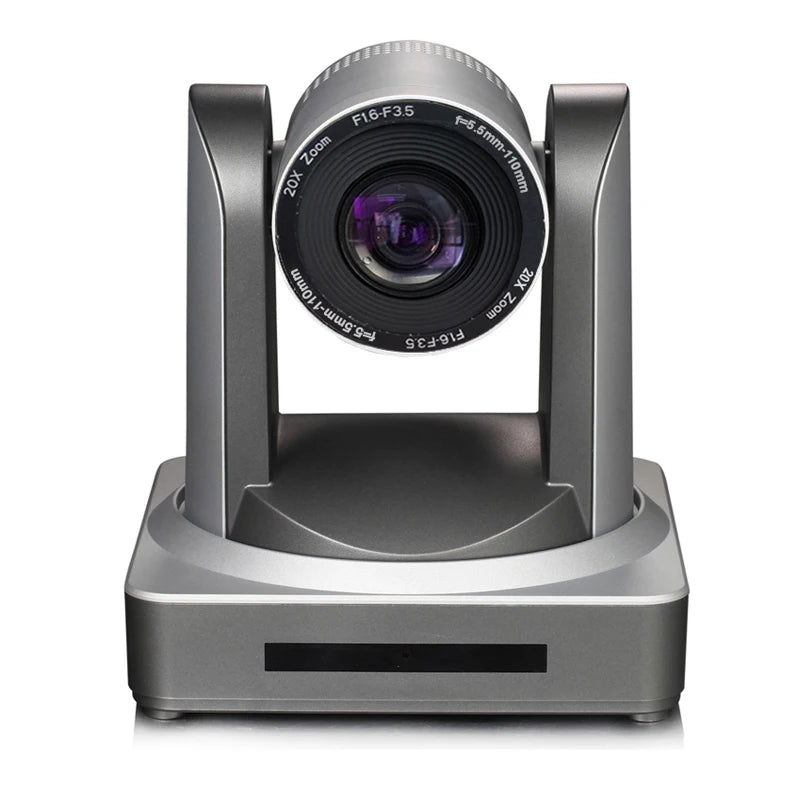

2MP 1080P 60/50fps Network Live Streaming PTZ Camera POE HDMI SDI 20x Optical Zoom RTMP RTSP
SUPER DEAL
£568.00
↓ Save £100.00
£668.00
Default Title
✓
SPECIFICATIONS
Brand Name: FLA
Certification: NONE
High-concerned chemical: None
Interface: HDMI+3G-SDI+IP+USB2.0+RS232/RS485+Audio in
Model Number: HD520ST-P
Network Protocols: RTSP, RTMP, ONVIF, GB/T28181
Origin: Mainland China
POE: 48V POE Supported
Product Name: HDMI SDI 20x Zoom IP PTZ Camera
Smart home platform: Other
Video Output: HDMI, SDI, LAN, USB2.0
2MP 1080P 60/50fps 2mp 1080p network live streaming ptz camera poe HDMI SDI 20x Optical zoom RTMP RTSP
Specification:
Full HD, Wide View Angle, Multi-protocols,Multiple Video Interfaces
This series camera offers perfect functions, superior performance and rich
interfaces.The features include advanced ISP processing algorithms to provide
vivid images with a strong sense of depth, high resolution,and fantastic color
rendition. It supports H.264/H.265 encoding which makes motion video fluent
and clear even under less than ideal bandwidth conditions.
Main Features:
It employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 ,
Multiple lens 20×Zoom
support HDMI, 3G-SDI, IP, USB2.0 interface. (DC12V/POE Supported)
Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
Low noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D
noise reduction technology is also used to further reduce the noise, while ensuring
image sharpness.
Support 16000, 32000, 44100, 48000 sampling frequency and support AAC, MP3,
PCM audio coding.
By adopting step driving motor mechanism, camera works extremely quiet and
moves smoothly.
Support H.264/H.265 video compression
Support AAC, MP3 and PCM audio compression; Support compression of resolution
up to 1920x1080 with frame up to 60 fps and 2 channels 1920x1080 with 30 fps
compression.
Support ONVIF, RTSP, RTMP protocols and RTMP push mode, easy to link streaming
media server (Wowza, FMS)
Tele-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training,
Tele-medicine, Interrogation and Emergency Command Systems.
Support low-power sleep/wake up, the consumption is lower than 400mW
under sleep mode.
Technical Parameter:
Model number |
FLA-HD520ST-P |
Camera Parameter | |
Optical Zoom |
20X f＝5.5～110mm |
Sensor |
1/2.8 inch high quality HD CMOS sensor |
Effective Pixels |
16: 9, 2.07 Megapixel |
HDMI Video Output |
1080P60/50/30/25/59.94 1080I60/50/59.94 720P60/50/30/25/59.94 |
SDI Video Output |
1080P60/50/30/25/59.94 1080I60/50/59.94 720P60/50/30/25/59.94 |
U2 Video Output |
320x240/352x288/640x360/640x480/704x576/ 704x480/720x576/800x448/800x600/960x540/1024x576/ 1024x768/1280x720/1920x1080P30/25/20/15/10/5 |
View Angle |
3.3°(tele)--54.7°(wide) |
Aperture |
F1.6--F3.5 |
Digital Zoom |
10X Digital Zoom |
Minimum Illumination |
0.5Lux (F1.8, AGC ON) |
DNR |
2D & 3D DNR |
White Balance |
Auto / Manual / One Push / 3000K / 4000K / 5000K / 6500K |
Focus |
Auto / Manual |
Aperture |
Auto / Manual |
Electronic Shutter |
Auto / Manual |
BLC |
ON / OFF |
WDR |
OFF/ Dynamic level adjustment |
Video Adjustment |
brightness, color, saturation, contrast, sharpness, B/W mode |
SNR |
>55dB |

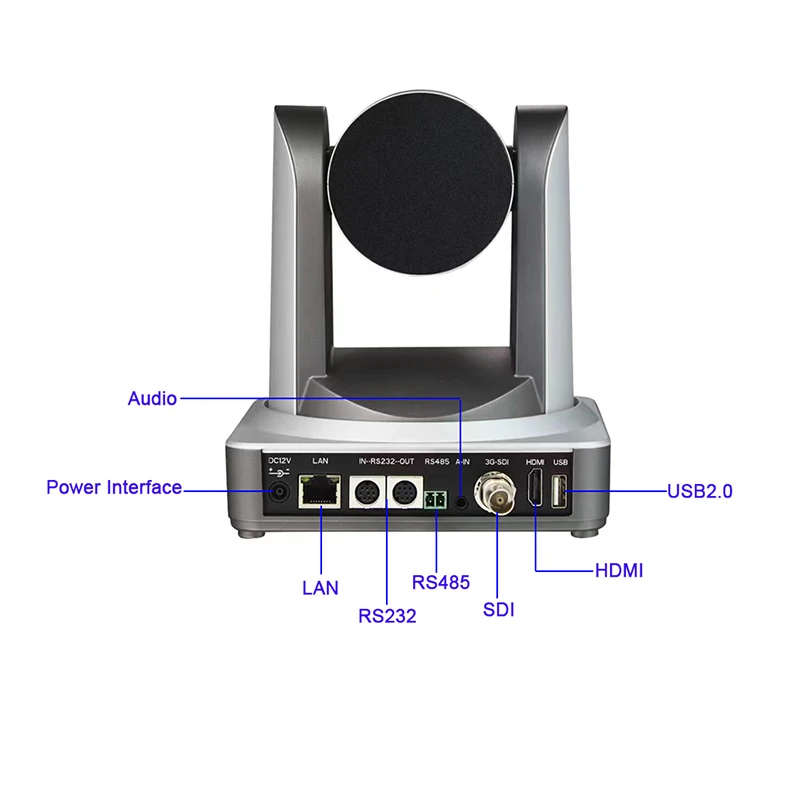

Input / Output interface | |
Video Interface |
HDMI / 3G–SDI / LAN / USB2.0 |
Image Code Stream |
Dual streams output |
Video Compression |
H.265 / H.264 |
Control Signal Interface |
RS-232 (Ring through RS232 output), RS485 |
Control Protocol |
VISCA / PELCO-D / PELCO-P |
Baud Rate |
115200 / 9600 / 4800 / 2400bps |
Audio Input Interface |
Dual track 3.5mm linear input |
Audio Compression |
AAC / MP3 / PCM Audio Compression |
IP Interface |
100M IP port (10/100BASE-TX); 5G WiFi ( Optional ) |
Visca Protocol |
Support VISCA protocol control through IP port. |
Network Protocol |
RTSP, RTMP, ONVIF |
Power Interface |
HEC3800 outlet (DC12V) |
PTZ Parameter | |
Pan Rotation |
±170° |
Tilt Rotation |
-30° ~ +90° |
Pan Control Speed |
0.1 ~ 60 degree /sec |
Tilt Control Speed |
0.1~ 30°/sec |
Preset Speed |
Pan: 60°/sec, Tilt: 30°/sec |
Preset Number |
255 presets （10 presets by remote controller） |
Other Parameter | |
Supply Adapter |
AC110V-AC220V to DC12V/1.5A |
Input Voltage |
DC12V±10% / POE |
Input Current |
1A（max） |
Consumption |
12W (max) |
Store Temperature |
-10℃ to +60℃ |
Store Humidity |
20% --95% |
Working Temperature |
-10℃ to +50℃ |
Working Humidity |
20%--80% |
Remote Operation |
remote upgrade, remote reboot and remote reset |

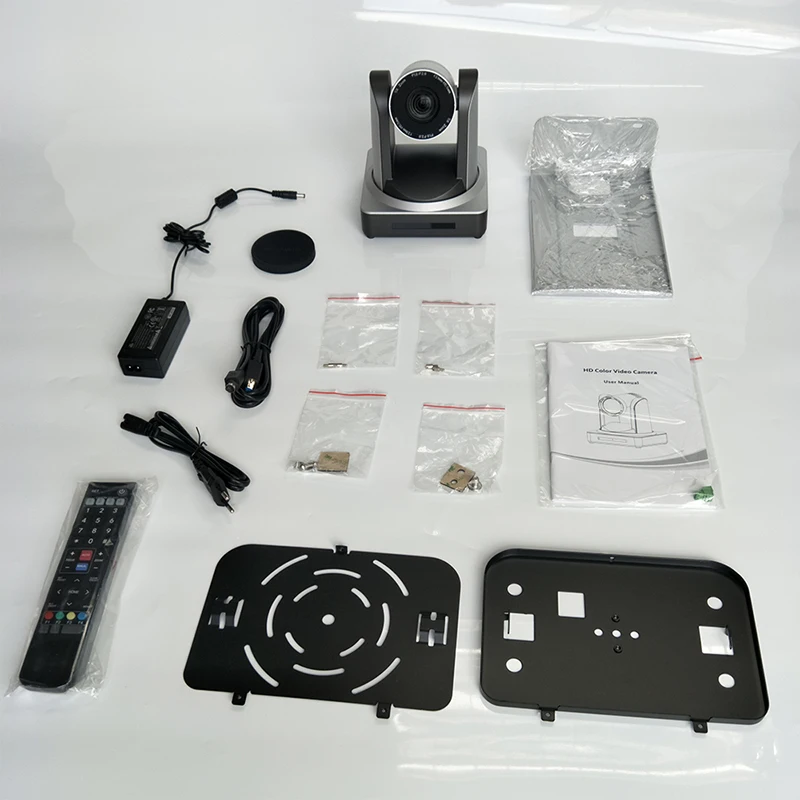

Accessory |
power supply,RS232 control cable,remoter, user manual, warranty card |
Optional Accessory |
Installation Bracket |

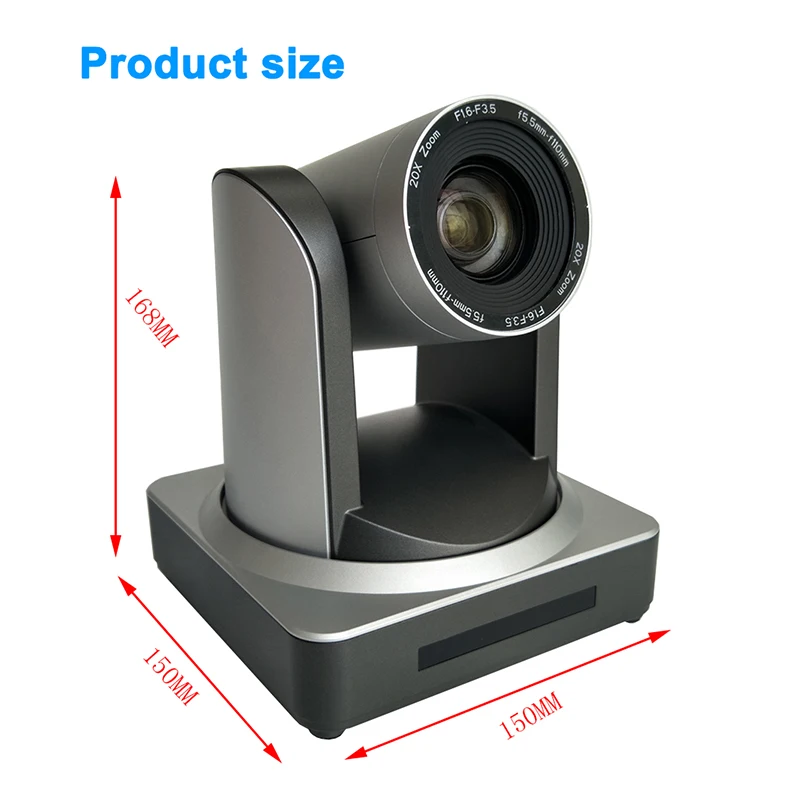

Product Dimension |
150mmX150mmX167.5mm |
Net weight |
1.4kg |
Packed Dimension |
270x250x240MM |
Gross Weight |
4.5KG |

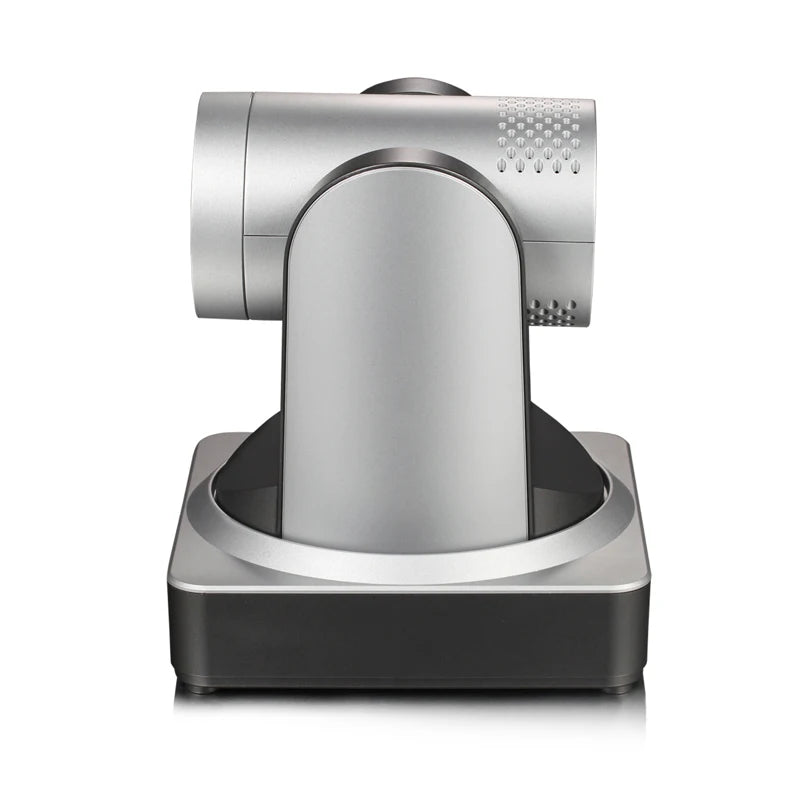

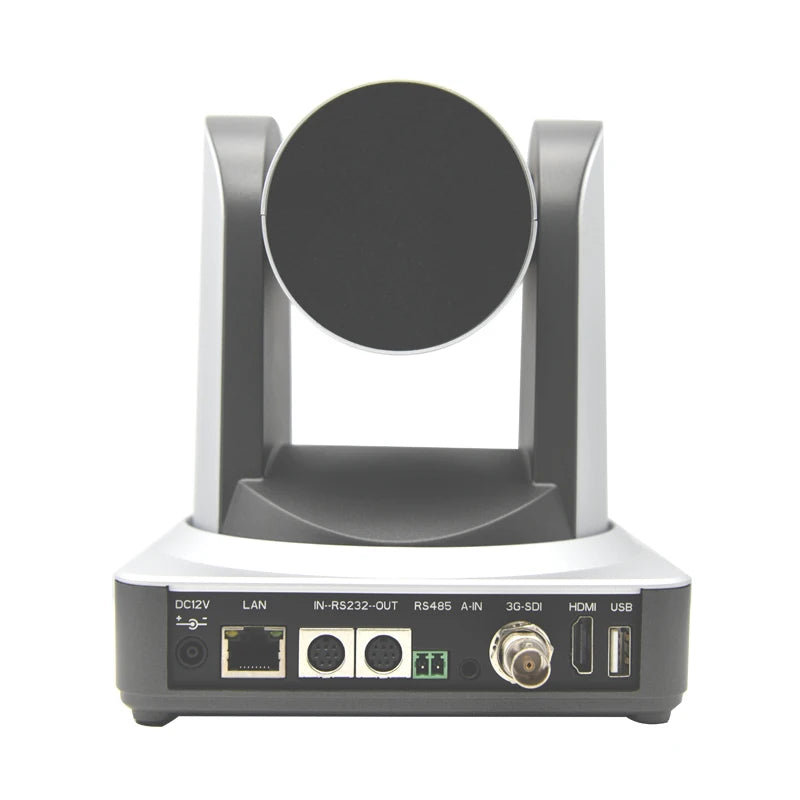

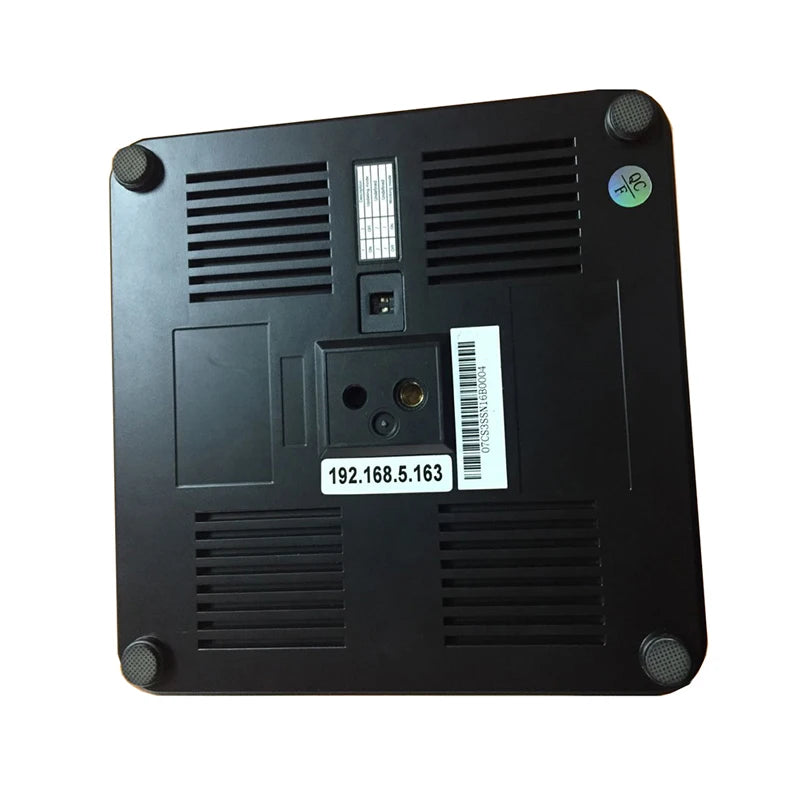

Product Photos:
