24G Smart House Human Micro-motion HLK-LD2450 Radar Sensor Distance and Speed Tracking Module KIT
SUPER DEAL
£39.00
↓ Save £100.00
£139.00
✓
✓
✓
✓

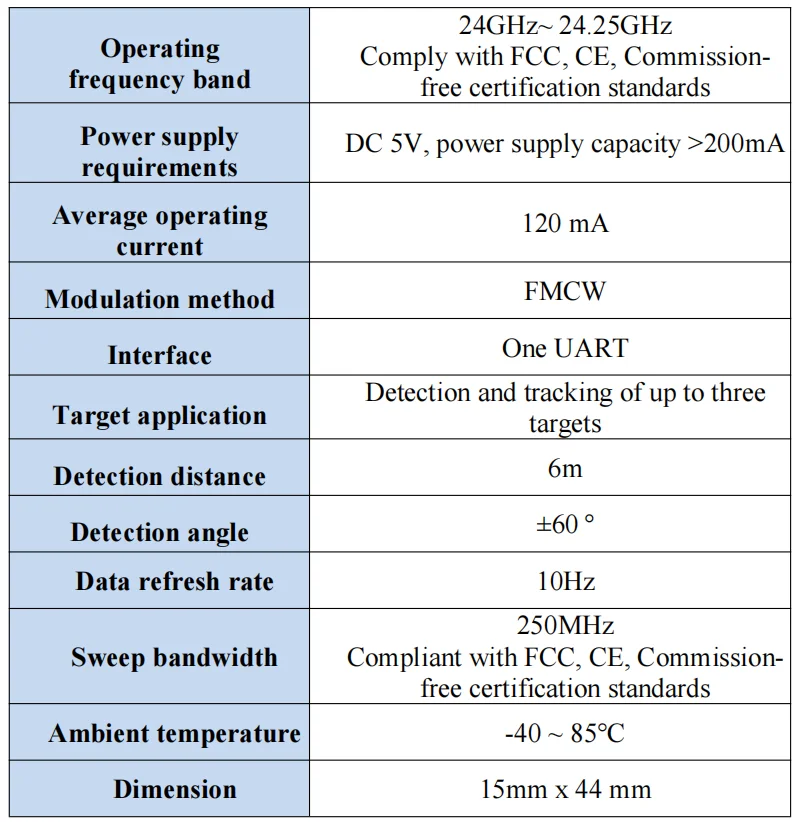

SPECIFICATIONS
Brand Name: NONE
Default pins: GND, 5V, TX, RX
Detection: distance, angle, speed
Horizontal angle: +-60°
Input voltage: 5V
Micro-motion distance: 6m
Model Number: HLK-LD2450
Origin: Mainland China
Size: 15*44mm
Standard: Based on CE FCC
Transmit frequency: 24G
Vertical angle: +-35°
Work temperature: -40~85C
Working current: 120mA

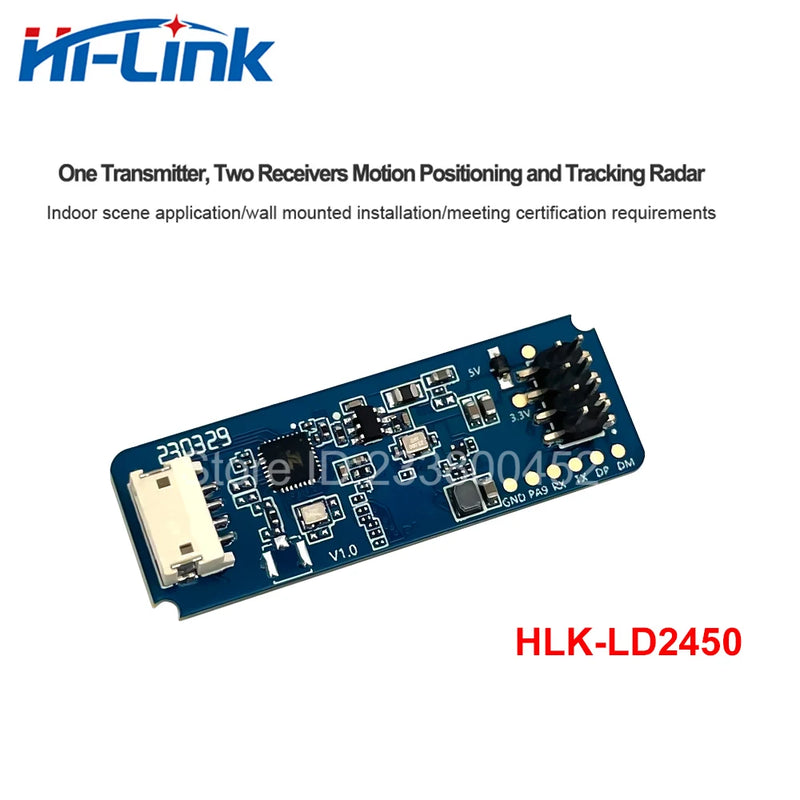

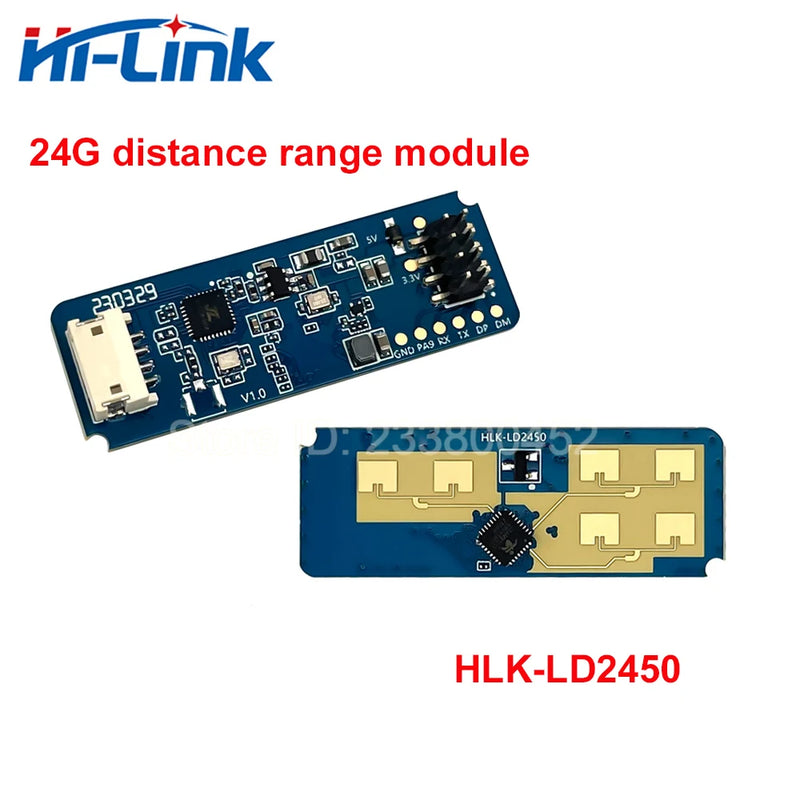

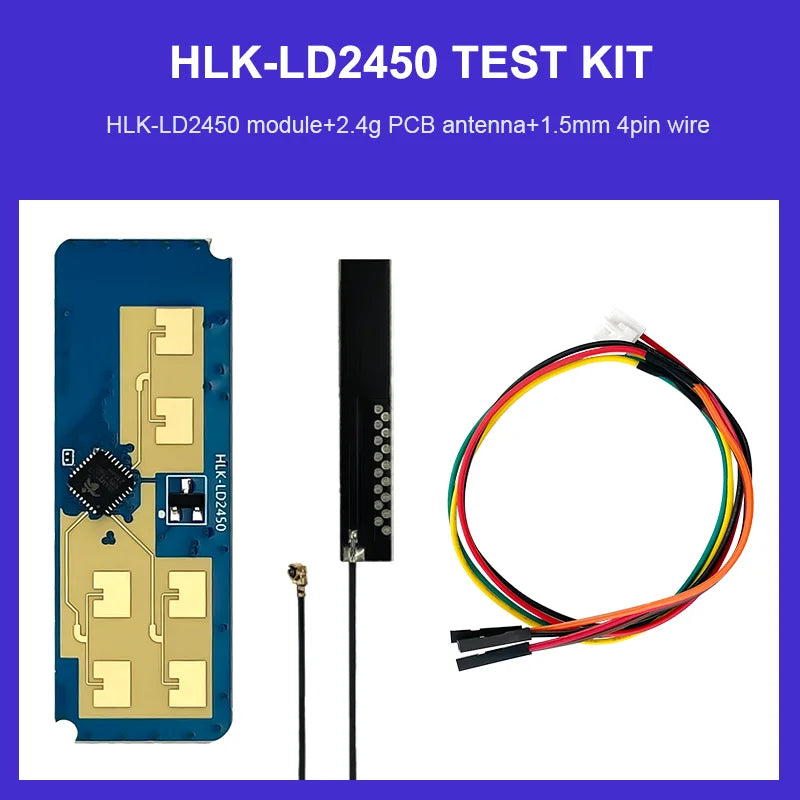

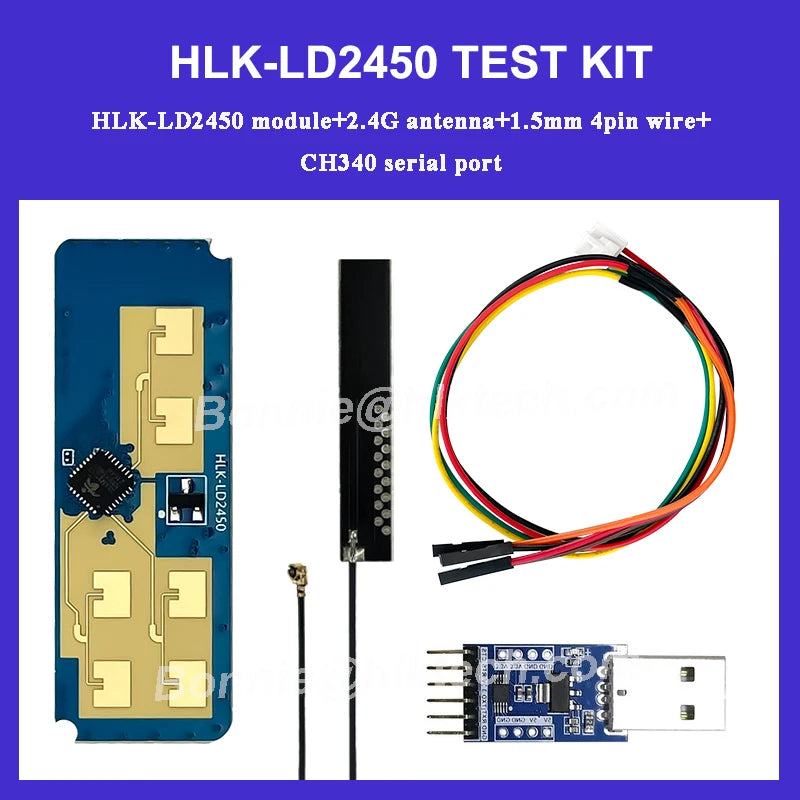

Hi-Link 24G Human Tracking HLK-LD2450 Sensor Module KIT for Distance and Speed

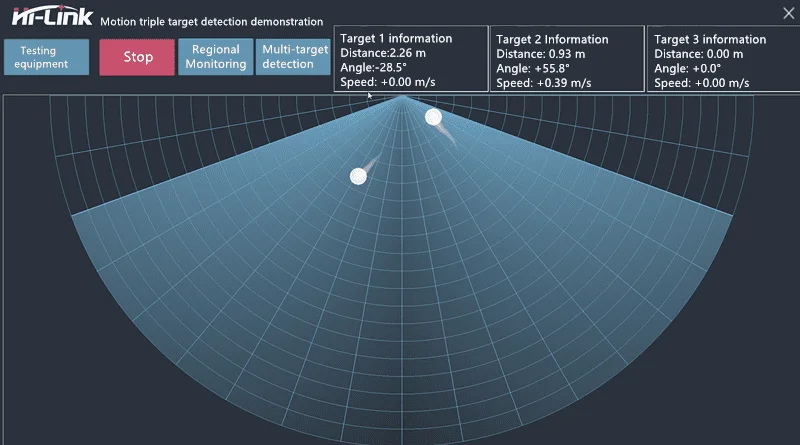

Motion target tracking is to track the position of the moving target in the region in real time, and realize the distance, angle and speed measurement of the moving target in the region.The LD2450 is a motion target tracking sensor module from the Hi-Link 24G millimetre wave radar series, which includes extremely simplified 24 GHz radar sensor hardware and intelligent algorithm firmware. The solution is mainly used in general indoor scenarios such as homes, offices and hotels to enable the location tracking of moving human bodies.

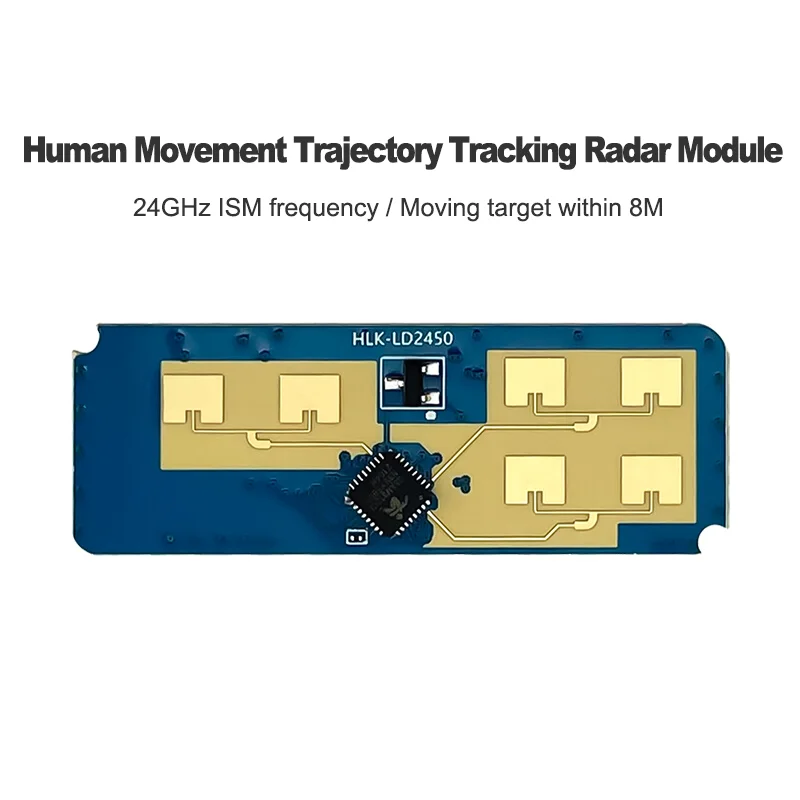

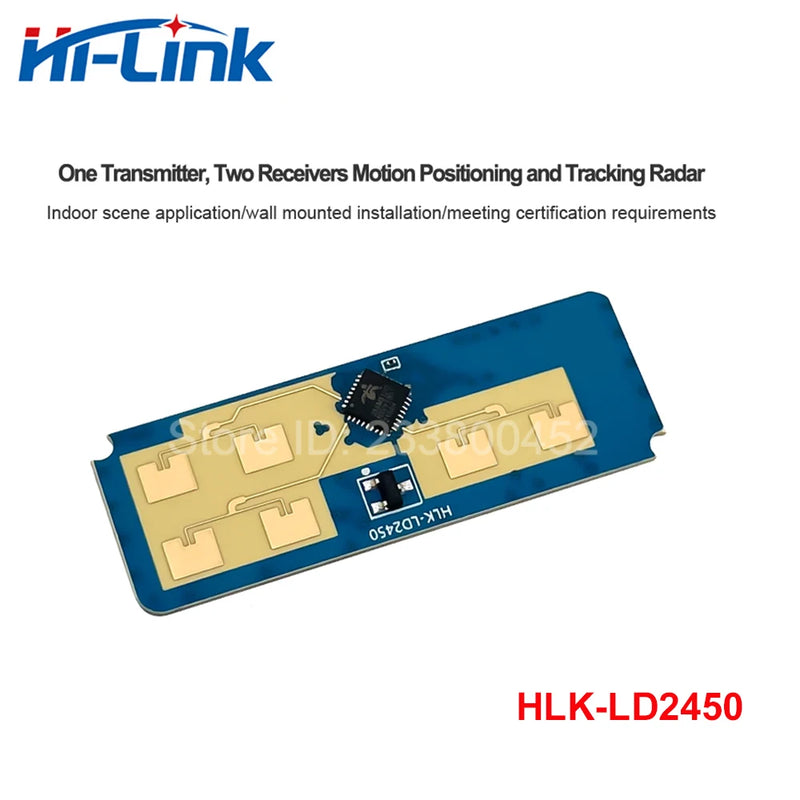

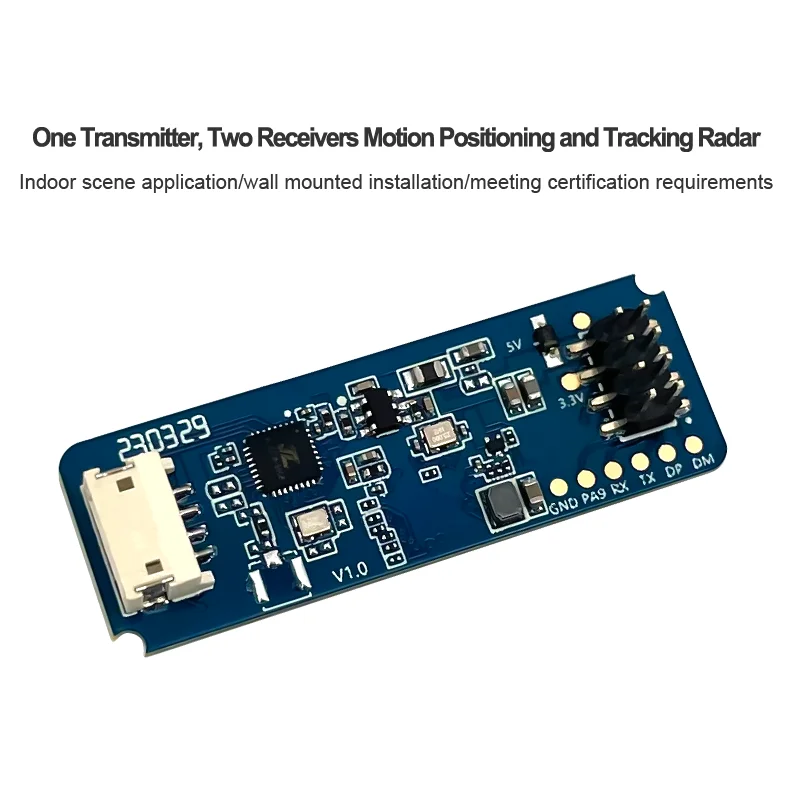

The sensor hardware consists of an AloT millimetre wave radar chip, a high performance one-transmitter-two-receiver microstrip antenna and a low cost MCU and peripheral auxiliary circuitry. The intelligent algorithm firmware uses FMCW waveforms and the radar chip's proprietary advanced signal processing technology.
It supports serial output of detection data, which is plug-and-play and can be flexibly applied to different smart scenarios and end products.
Module Features
* 24 GHz ISM band
* Integrated intelligent millimeter wave radar chip and intelligent algorithm firmware
* Precise motion target localization and tracking
* Longest detection range 6m
* Ultra-small module size: 15mm x 44mm
* Wall mounting
* Azimuth angle ±60°, pitch angle ±35°
* The ultimate cost-effective choice

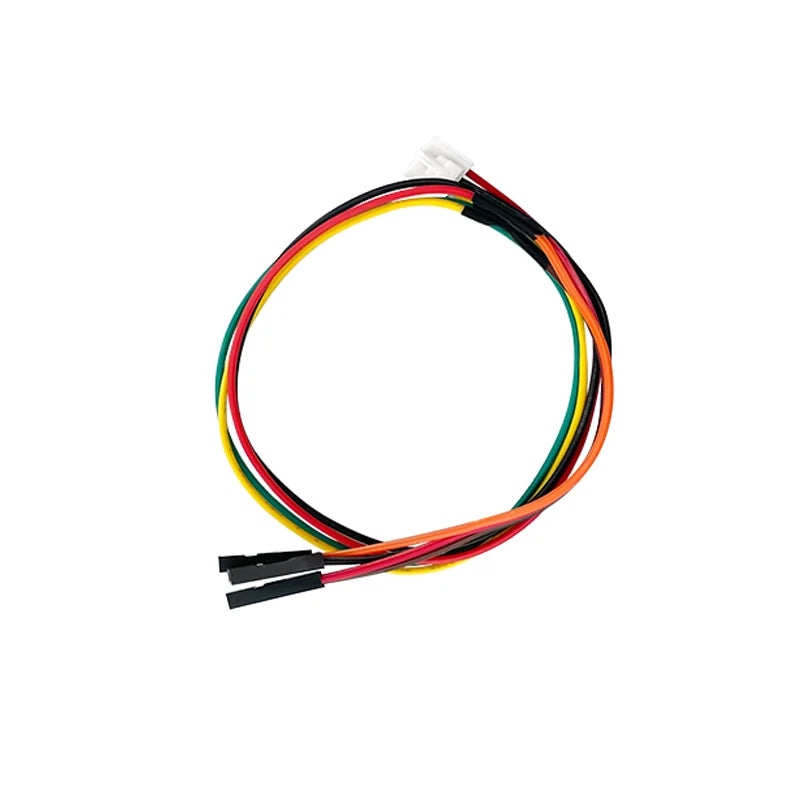

* Multiple connection options with pin and socket interface

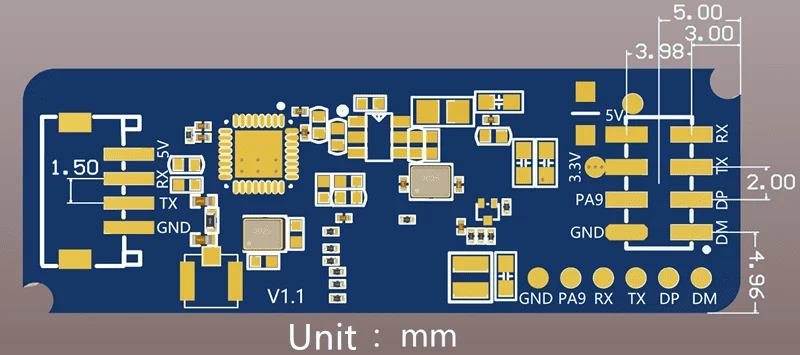

Pin definition
Application scenarios
The LD2450 motion target tracking sensor can accurately locate and track targets and is widely used in various AloT scenarios, covering the following types:
* Smart Home
Sensing the distance and angle of the human body, reporting the detection results for the main control module to intelligently control the operation of air conditioners, fans and other home appliances.
* Smart Business
Position sensing, within the set position interval to identify the human body approaching or moving away, timely lighting or closing the screen.
* Bathroom
Smart toilet accurately controls the automatic opening and closing of the toilet lid.
* Smart Lighting
Identify and sense the human body, precise position detection, can be used in home lighting devices (sensor lamps, desk lamps, etc.).

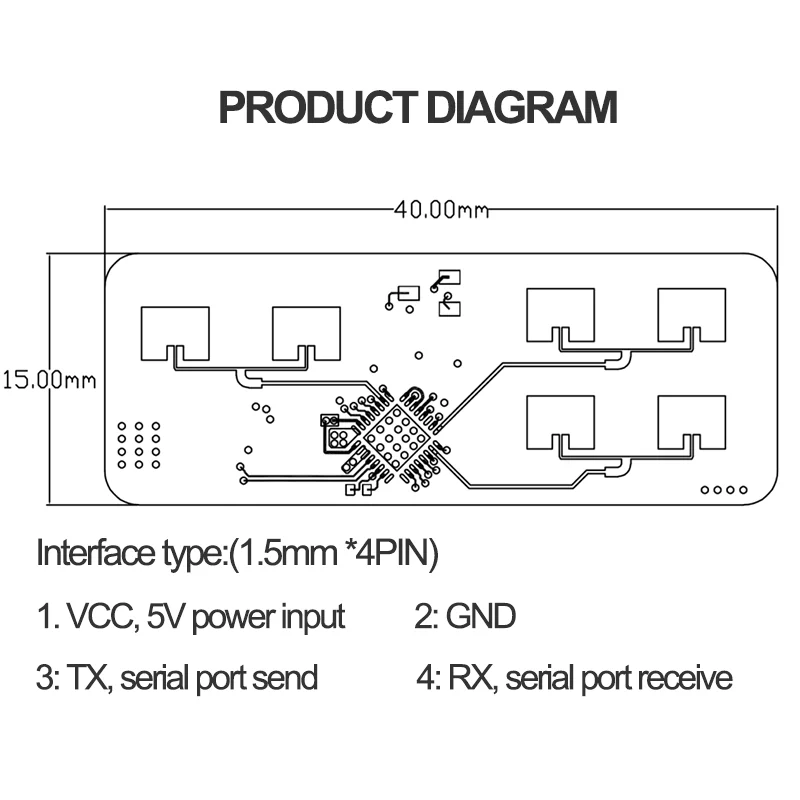

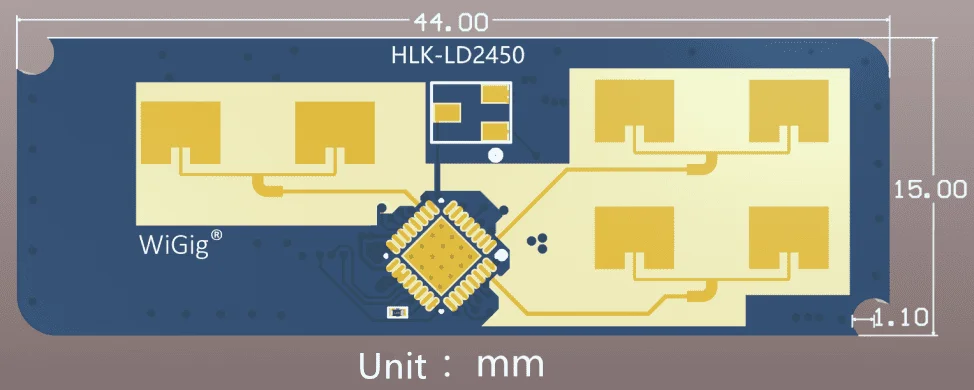

Dimension
