SPECIFICATIONS

Bluetooth: Bidirectional Bluetooth connection

Brand Name: NONE

CPU: RK3566

Certification: CE

Choice: yes

Gateway function: Zigbee gateway capability, can connect 50+ sub-devices, multi-category TUYA ecological equipment control.

High-concerned chemical: None

Local switch: Support local 2-way switch, can be used for room lighting line use, such as living room lights, bookcase lights, etc

Model Number: 12

Music's play: Support voice on-demand online music, Bluetooth, TF card, U disk, AUX play music.

Origin: Mainland China

Power input: AC90-250V ,50/60Hz

Product size: 450*260*100MM

RAM: 2GB

ROM: 8GB

RS485: Half-duplex 3.5MM interface terminal

Smart home platform: Tuya

System: Android11

The box size: Standard single 86/ pair 86

WIFI: 802.11b/g/n wireless protocol 150Mbps 2.4GHz

Zigbee: 802.15.4 PHY/MAC Zigbee network protocol stack

semi_Choice: yes

Product features and application scenarios

● 86 Into the wall type hidden installation structure, easy installation mode, no need to transform the wall, any collocation.

● 12.3-inch HD LCD, G+FF process multi-touch, and switch ratio at the same height

● With its own knob design, by pressing the switch equipment, through the knob rotation to adjust the lights, curtains, volume and other equipment.

● Smart home interconnection, situational mode, Zigbee gateway function, device automation, remote APP control.

● It can easily realize the precise control of intelligent devices such as lights, curtains, air conditioners, etc., without hands, compatible with some TUYA ecological devices.

● You can customize a linkage scenario to quickly change the scenario mode.

Function introduction

1、Multi-function central control host: with knob screen control, the bottom shell support single 86/ double 86 bottom shell, accordingto user needs to combine, the default is double 86 bottom shell; Intelligent central control pan + intelligent background music pan.

2、This product supports smart home control (Tmall IOT/ TUYA IOT, the specific version shall prevail).

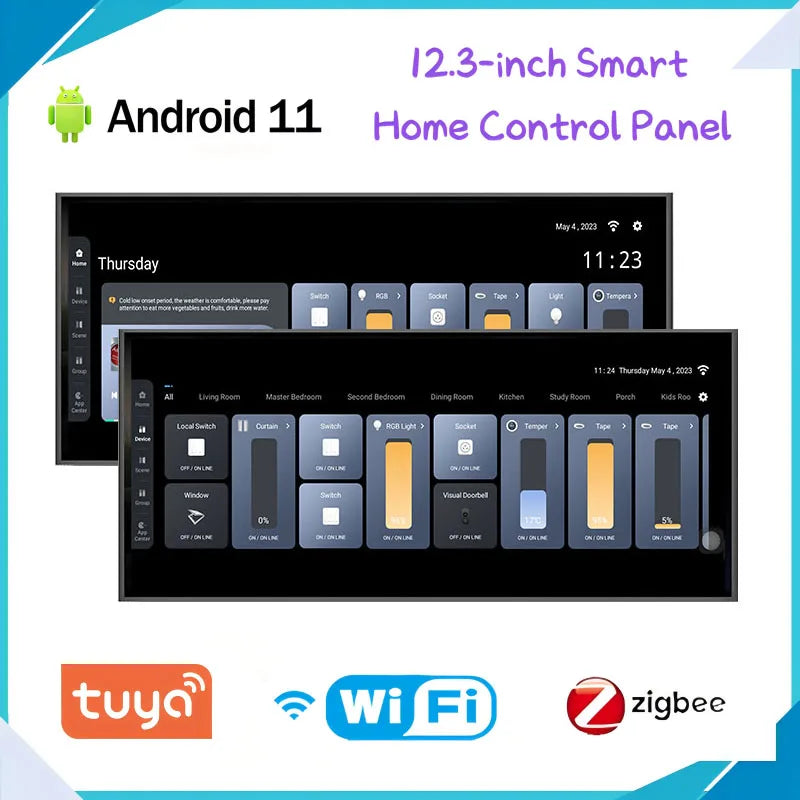

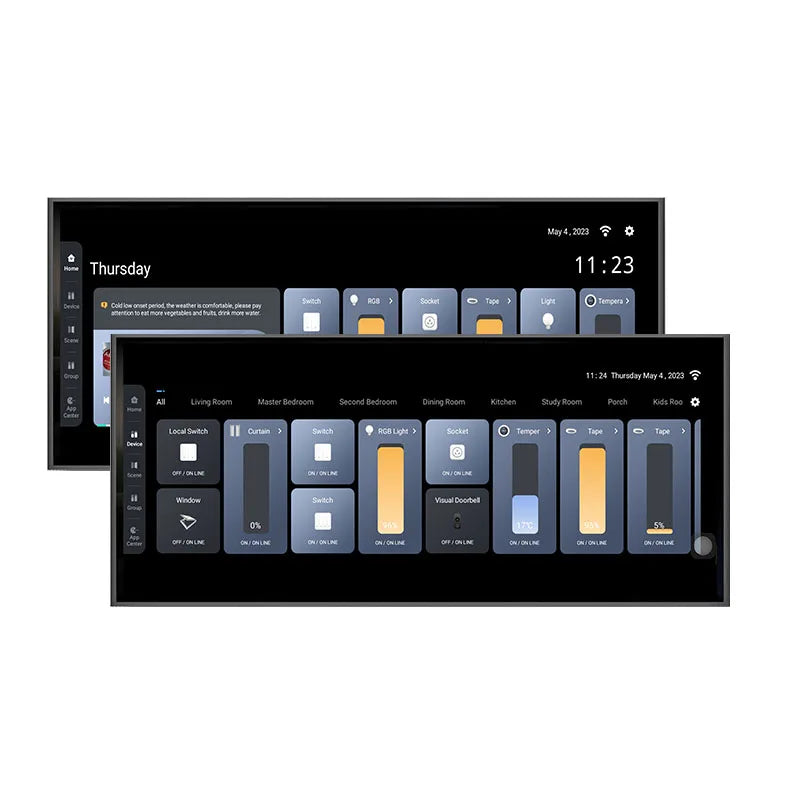

3、Capacitive full screen touch, 12.3 inch IPS display,1920*720 resolution.

4、Music playback: support MP3, WAV, WMA, FLAC, DTS, APE, AC3, OGG and other audio formats.

5、Bluetooth: Support mobile phone search connection host can also support the search connection Bluetooth speaker.

6、External sound input: support external sound source input to the machine, amplification output.

7、Time calendar: Supports clock and calendar display.

8、Set function: Set host functions.

9、Memory card function: external TF card, supporting 32GB TF card.

10、USB function: External USB card, supporting 32GB USB.

11、Multiple loop playback mode: support single play, random play, sequential play, single loop, all loop playback mode .

12、Screen saver display time function: After setting the screen saver, the screen saver can display public, lunar calendar, week, time.

13、Supports power-on and power-on.

14、Supports online firmware upgrade.

15、Supports wired Internet connection and WIFI connection.

16、485: can support external input control, can also output control of external intelligent devices.

17、Horn switch: the host supports the size of the horn switch, can use its own large horn and small horn.
