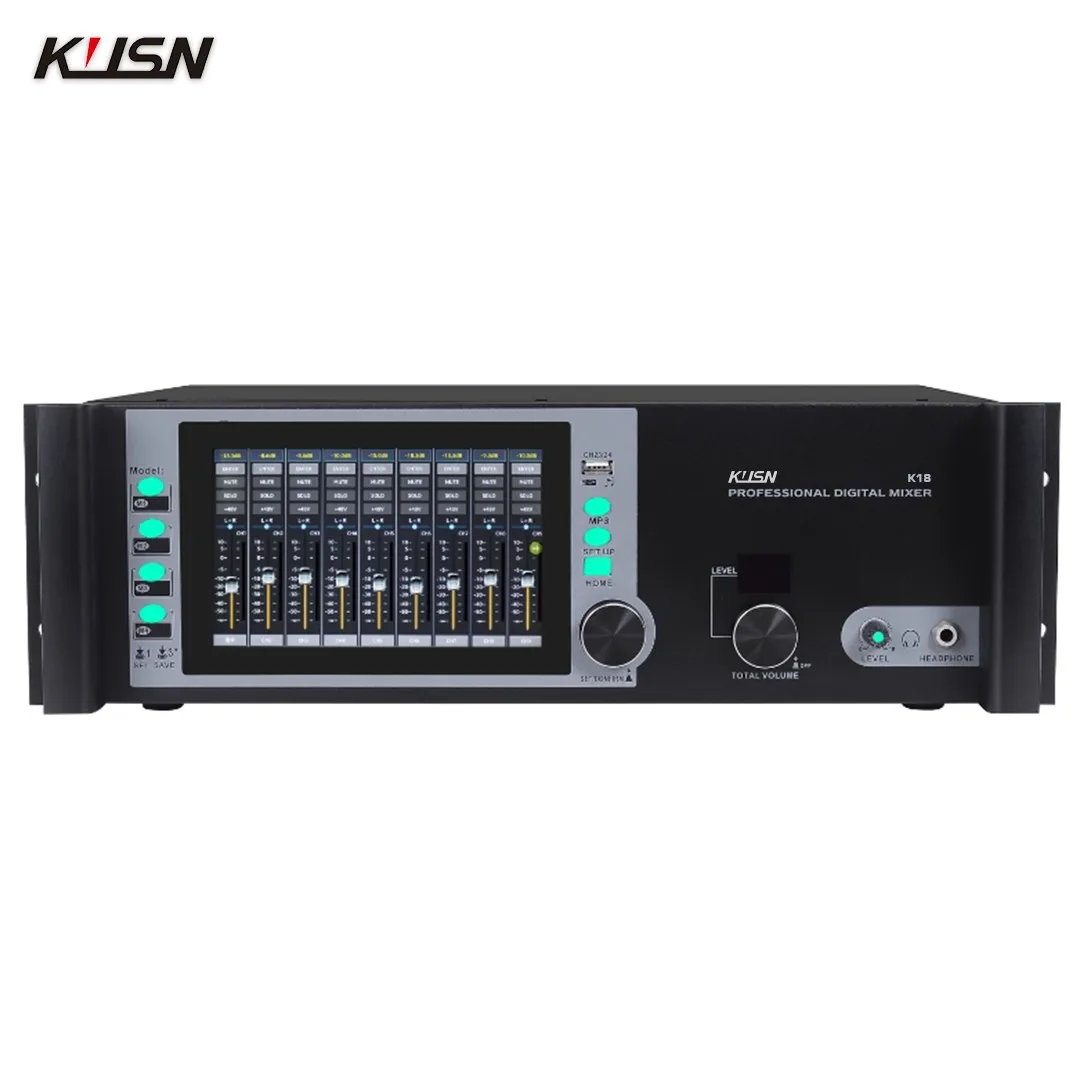

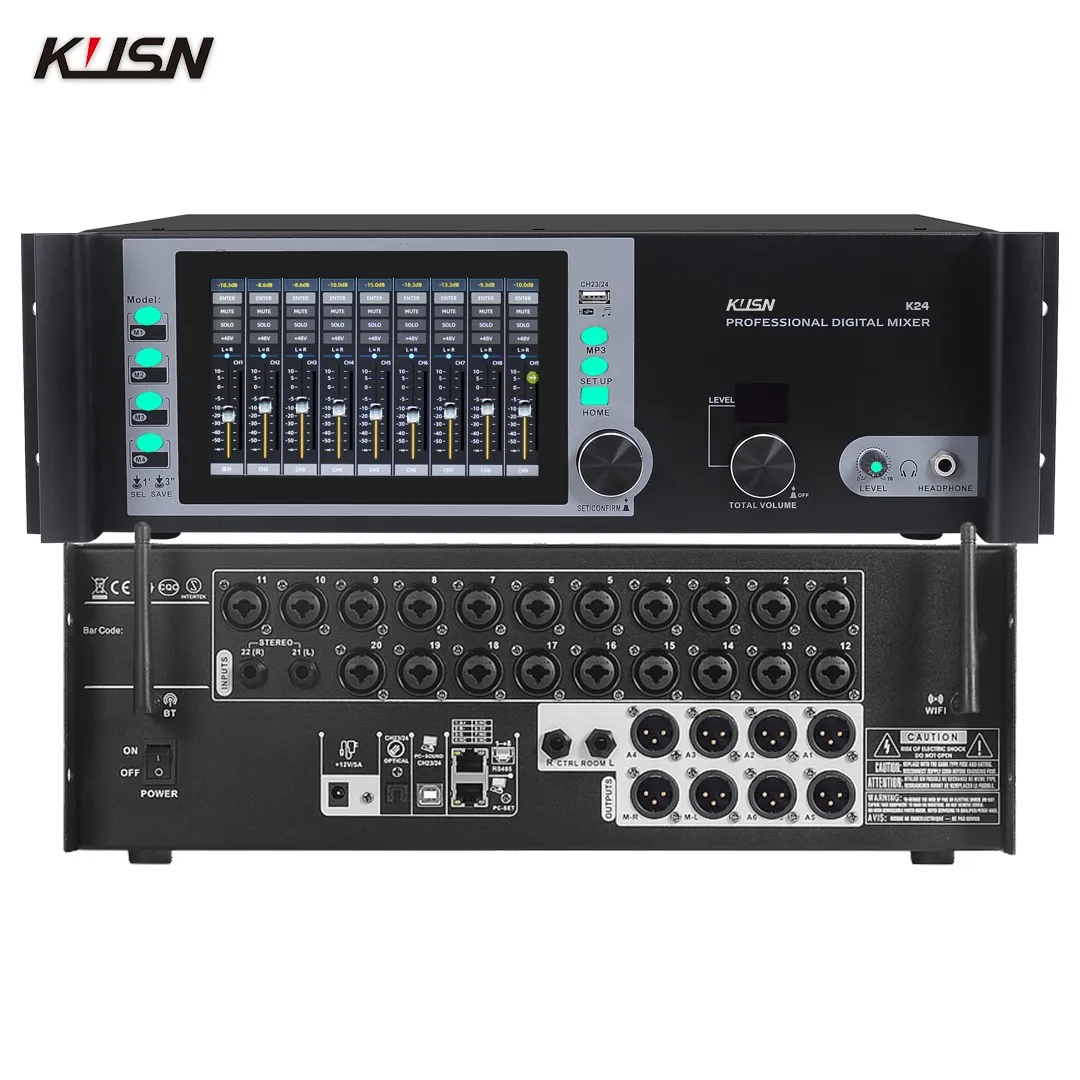

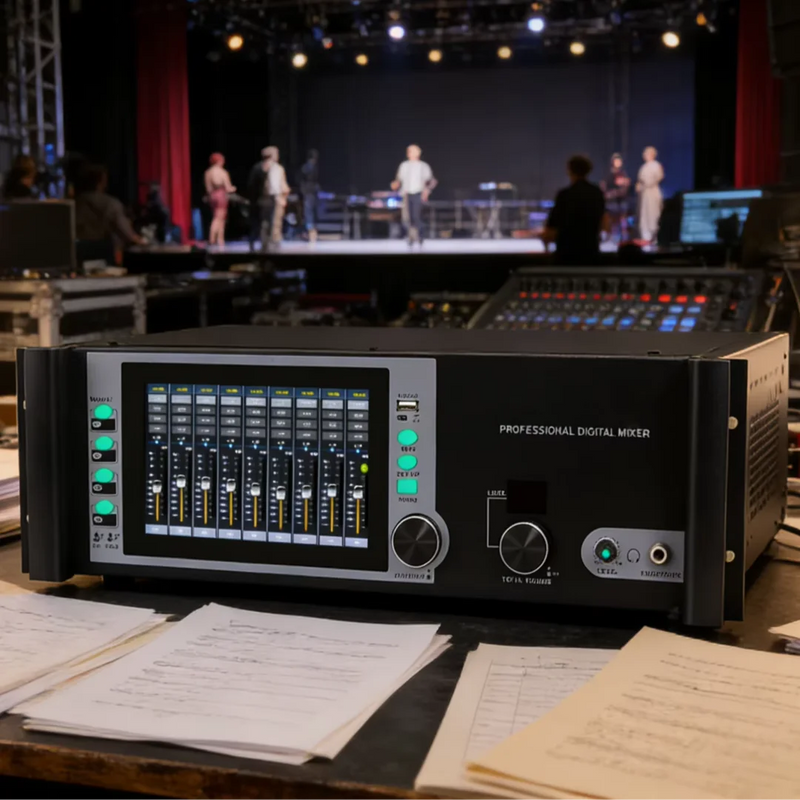

18/24 Channel 7 Inch Touchscreen Professional Digital Mixing Studio Recording Console Dj Studio Digital Mixer Audio Multi-track Sound Table

● 18/24 channel inputs include: 14/20 microphone inputs, 2 stereo inputs, and 2 digital stereo inputs (USB playback, USB sound card/optical input).

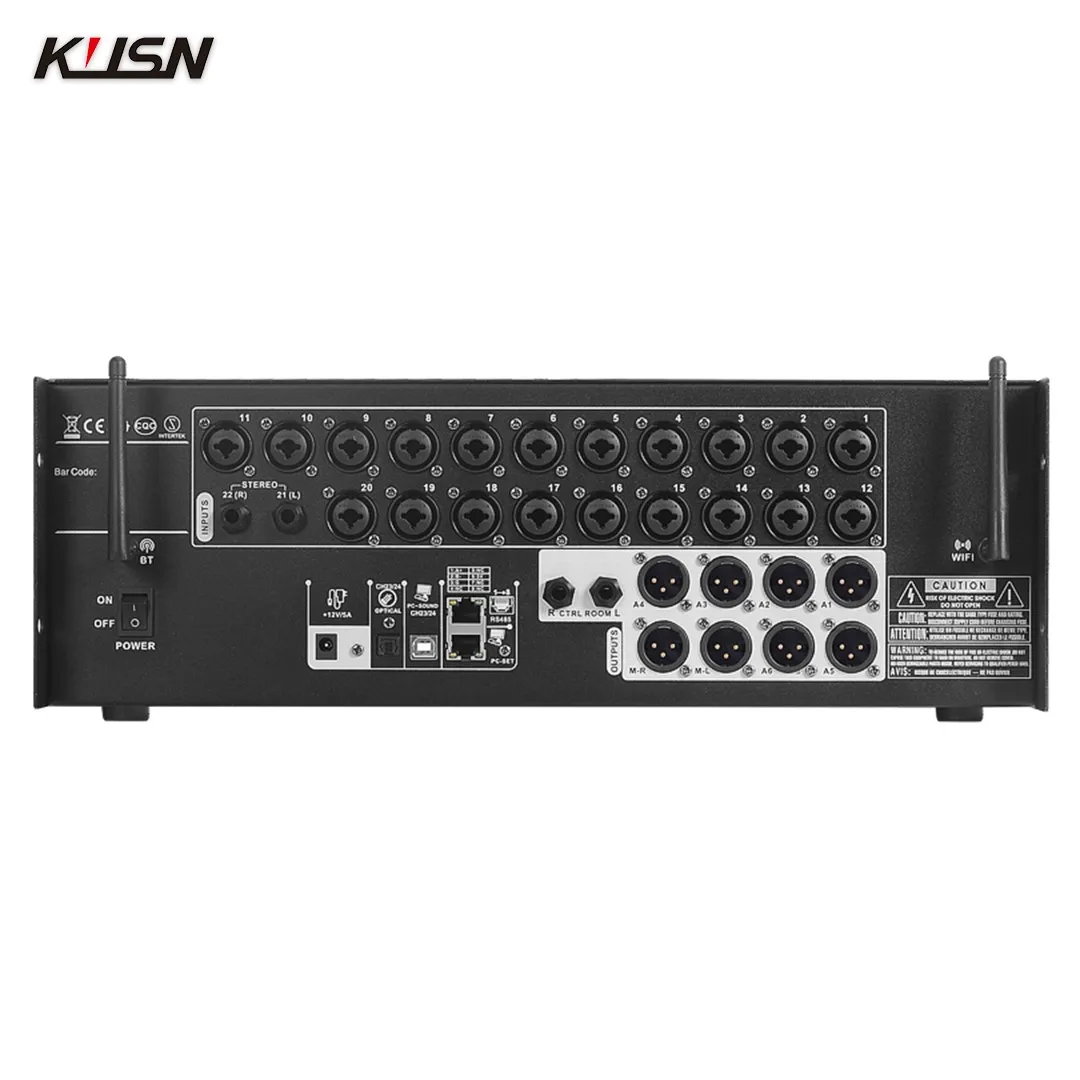

● 6 AUX output channels, 1 stereo main output, 1 stereo monitor output, and 2 stereo digital outputs (USB sound card, USB recording).
● All input channels have independent high-pass, low-pass, PEQ, compressor, noise gate, and phase processing.
● All microphone input channels feature high-quality programmable digital gain control and independent phantom power control.
● All AUX output channels include independent crossover, PEQ, compressor, delay processing, three-level feedback suppression (frequency shifting), and pre/post fader selection.
● The stereo main output channels have independent crossover, PEQ, compressor, delay processing, and three-level feedback suppression.
● All AUX output channels and main output channels have independent routing pages, allowing users to intuitively understand the input status of each channel and quickly access parameter editing.
● All channel preset names can be freely customized and rewritten.
● All input and output channels support arbitrary custom copying.
● All system setting parameters can be stored and recalled. The unit includes two independent professional stereo effects processors with independent send buses and multiple effect types to choose from. It also supports up to 16 user-defined effect modes.
● Built-in USB flash drive player supports real-time stereo recording and playback. The built-in USB sound card supports real-time recording and playback when connected to a PC.
● Supports user scene storage and recall functions.
● Features independent administrator password and customizable user password protection. The administrator password applies to both local operation and mobile access.
● 7-inch high-definition 1280×800 capacitive touchscreen supports multi-touch operation. Built-in web server based on HTML5 technology, with Wi-Fi hotspot, cross-platform support for Apple, Android, and Windows mobile devices, supports multi-screen interaction, full-function operation, central control protocol, and system integration.
● The unit has an independent main page displaying the real-time audio status and volume level of each channel.
● The unit provides 3 groups of DCA functions.
● The unit includes a master output volume controller and an emergency mute function.
