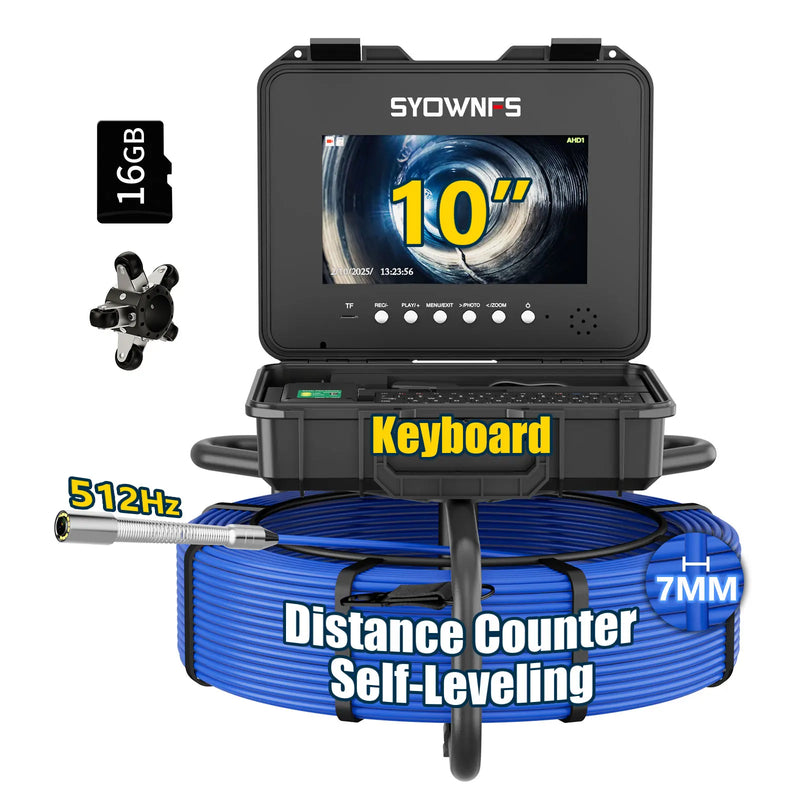

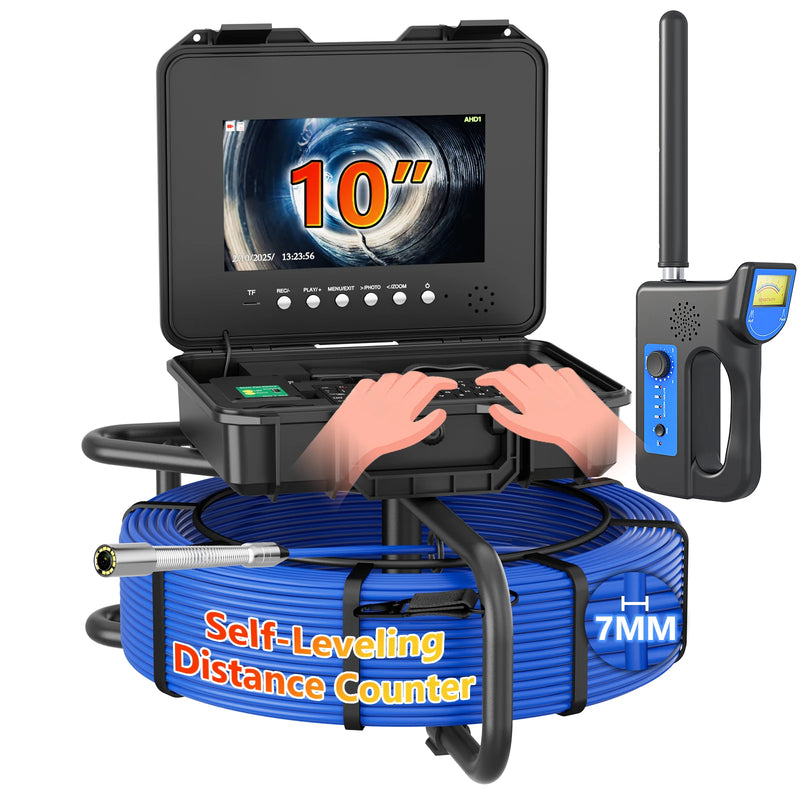

10.1" IPS Sewer Pipe Inspection Camera With Keyboard Meter Counter DVR

7mm Self-Leveling 512hz Locator AHD 1080P Sewer Endoscope

Video + Audio + 5X Image Enlarge:

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB TF card included,it is available to view live video and save video recording and photos and audio record. You can record the inspections and playback via the pipe system. （DVR Edition Video Format :AVI Photo format :JPG)+ZOOM to zoom in or zoom out 0-5 times

MONITOR&CABLE：

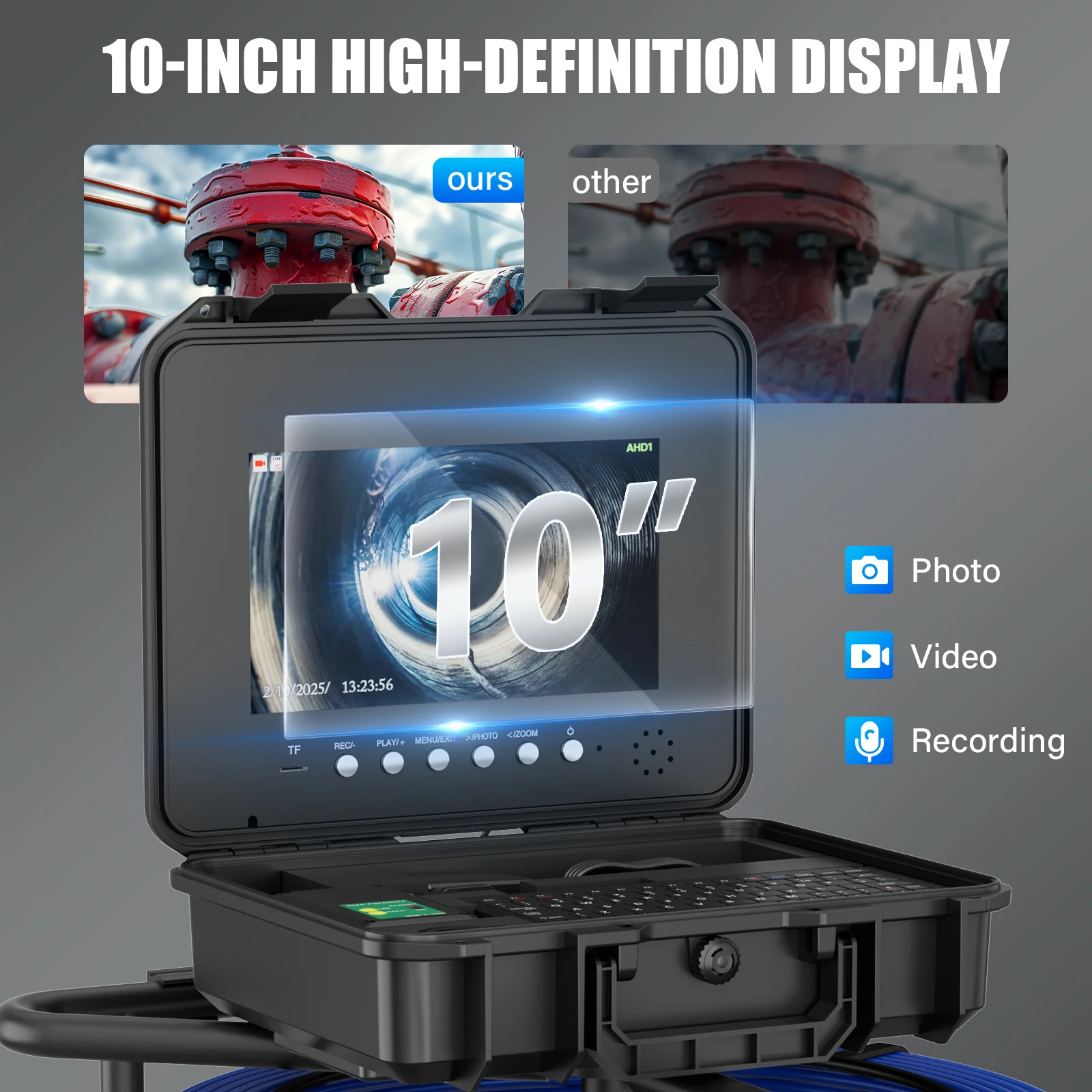

Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 10.1 inches color IPS LCD monitor for outdoor inspections. The material of wire is fiberglass rod(diameter: 7MM),anti-corrosion/cold/tensile.

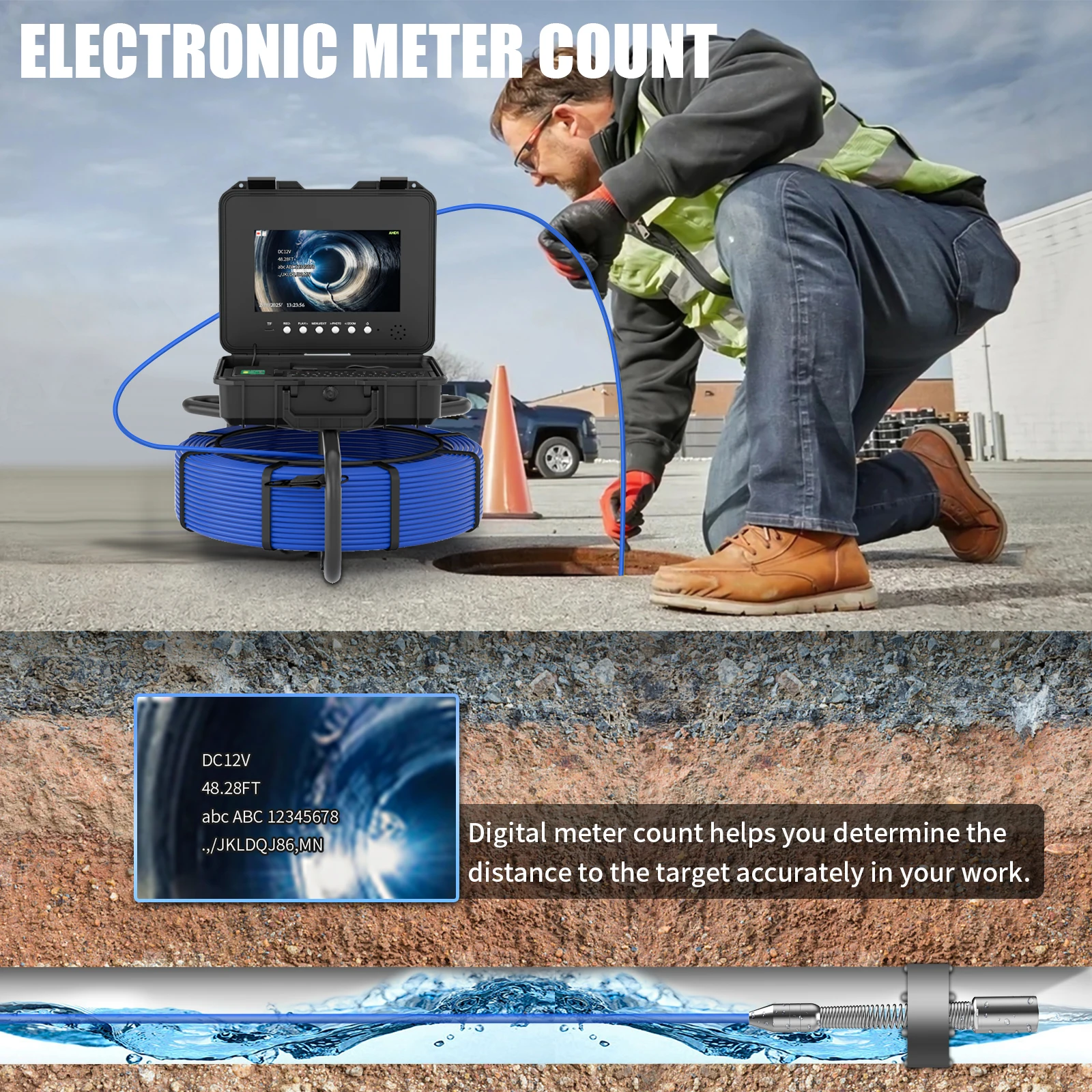

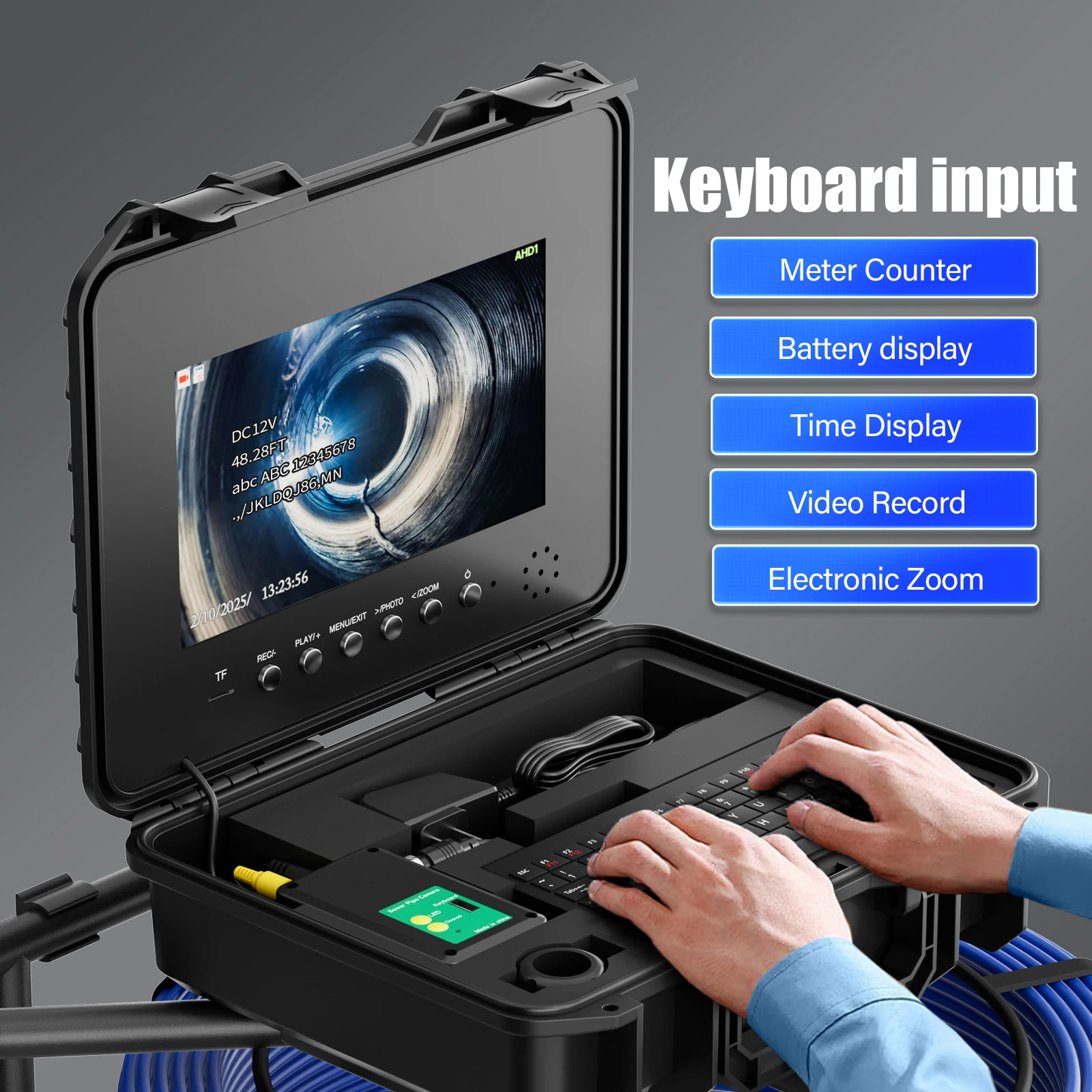

Meter Counter & Keyboard function:

Can change the metric and imperial,support input the text information /symbols to mark events during the work

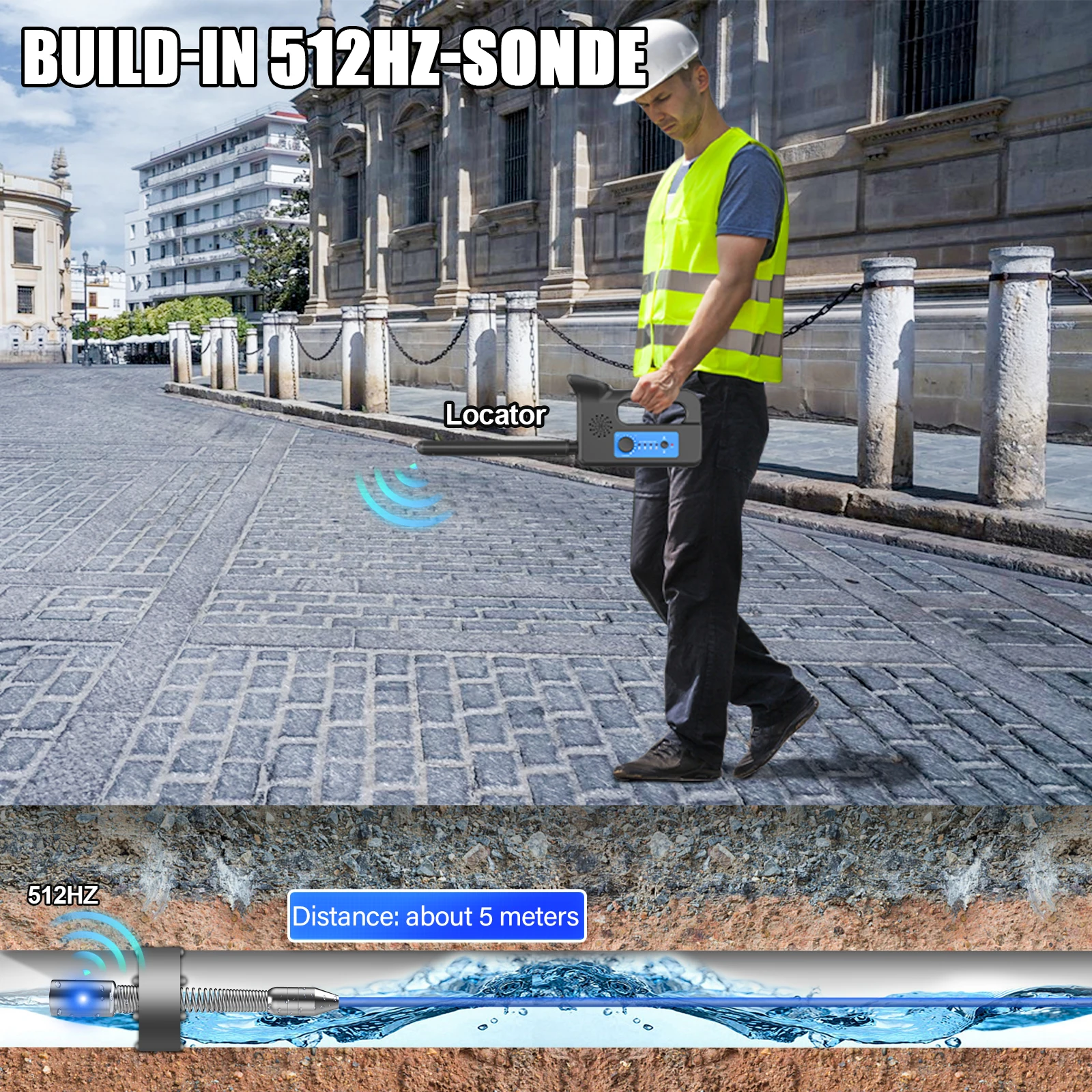

512HZ TRANSMITTER:

This endoscope camera has a built-in 512 hertz transmitter that helps to easily detect any blockage or area of interest. This greatly helps save time from having to dig and locate the problem. The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmitter’s position underground.

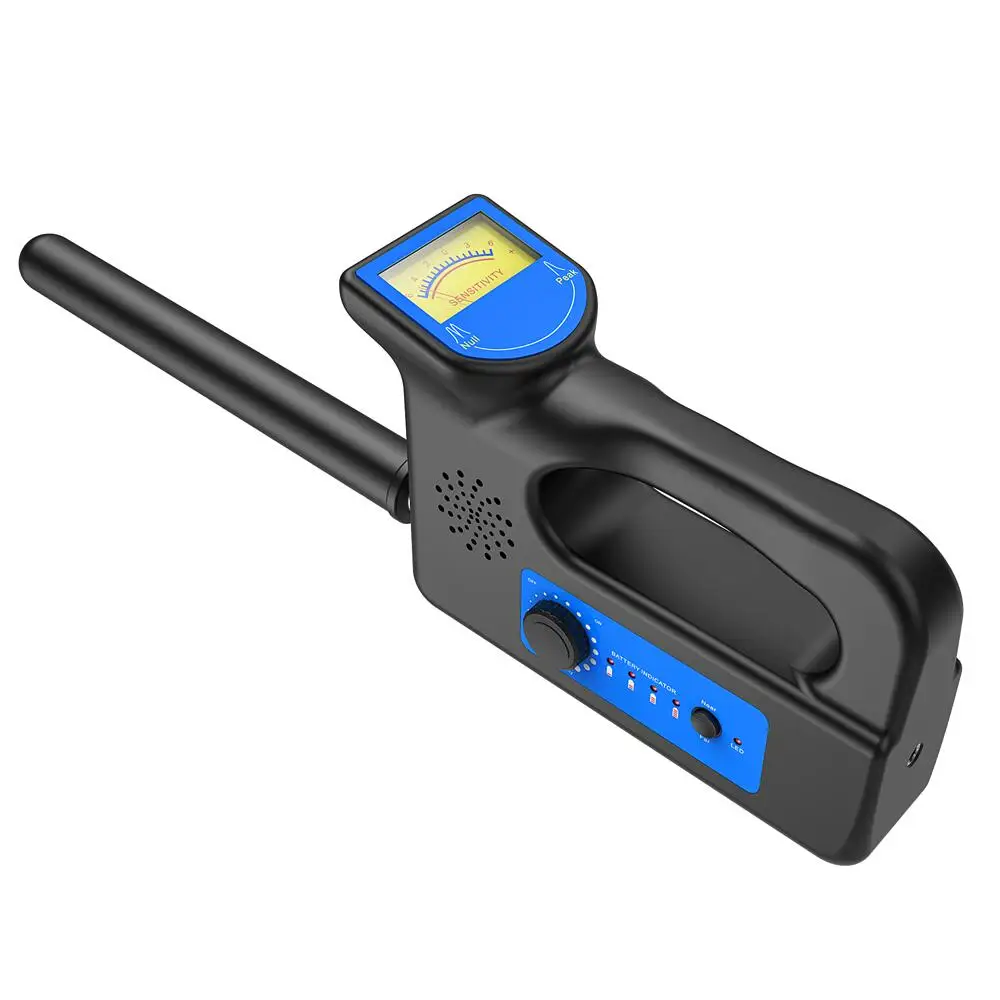

512HZ Receiver Technical Parameters：(Only for With Locator Type)

Receiver Frequency: 512HZ
Distance: about 5m
Battery: 3.7V 3000MAH built-in lithium battery
Charger: 5V1A
Battery Indicator：4 gear,it is flashing when battery is low
Battery working time：about 10 hours
Signal strength：6 gear
Speaker：Support
Detect Mode : Far/ Near

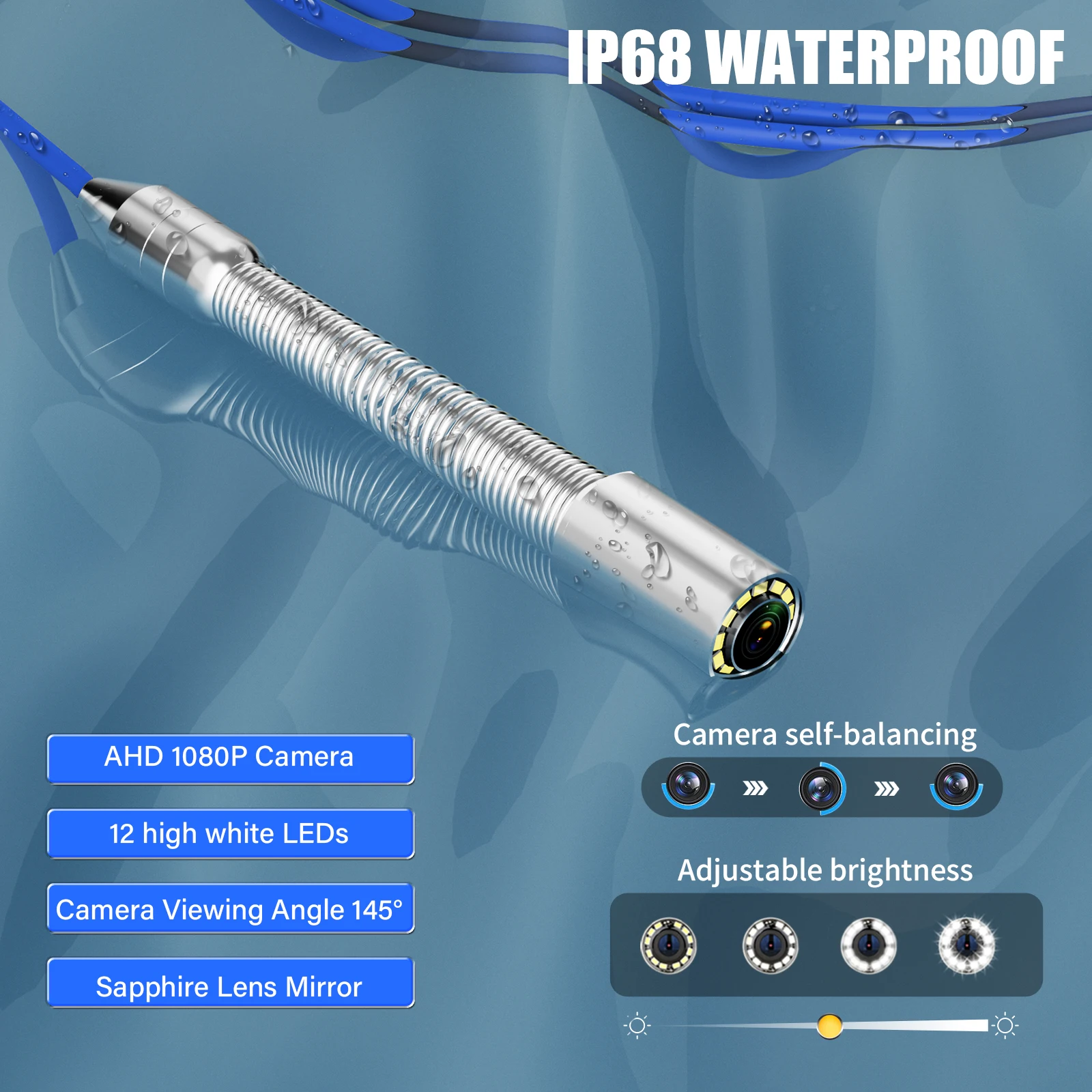

SELF-LEVELING IP68 STAINLESS STEEL CAMERA ：

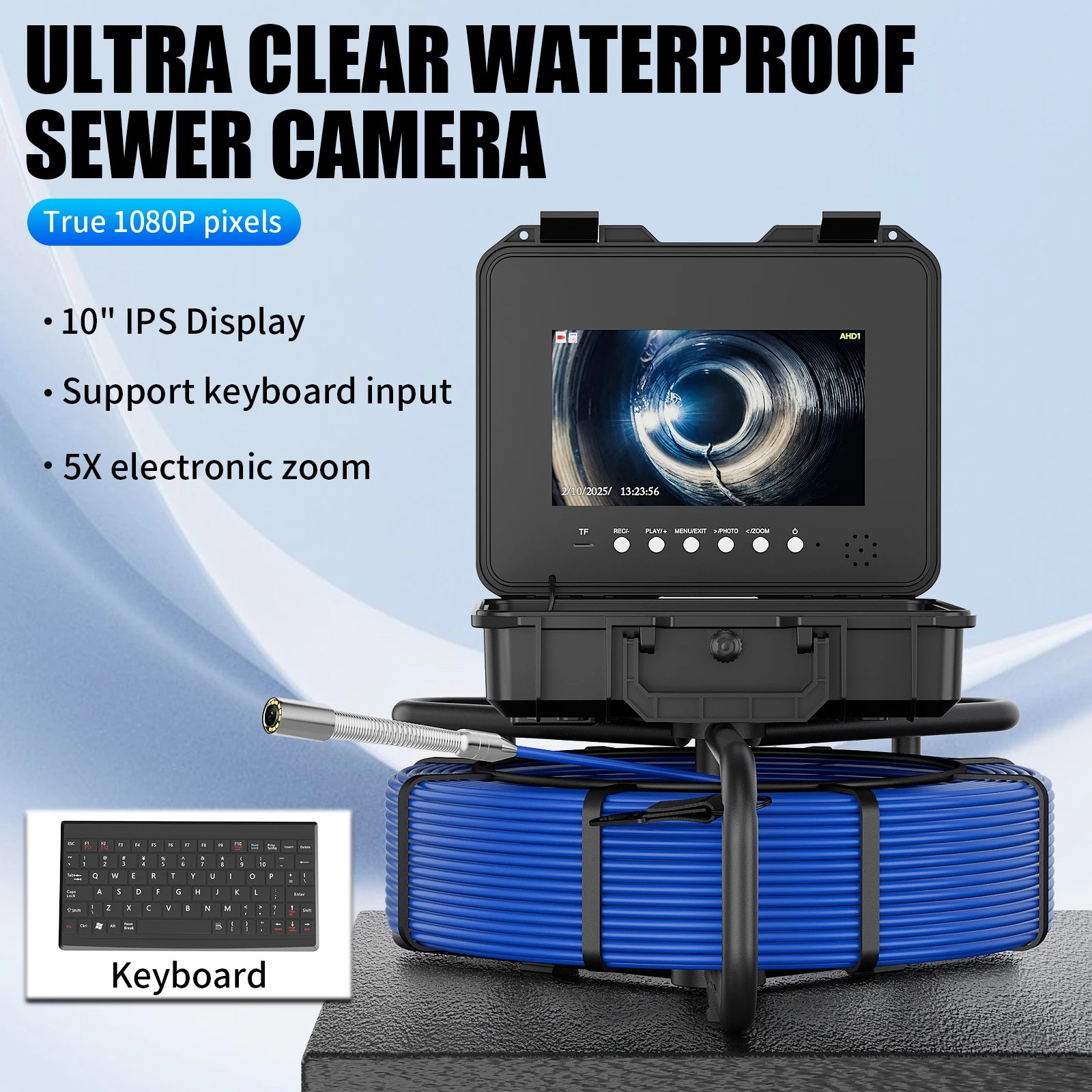

Self-leveling sewer camera always remains upright, providing clear and consistent imagery for accurate assessments. Also featuring HD IP68 waterproof camera with 12pcs adjustable LEDs, the ability to digitally zoom up to 5X and optimize light output inside of pipes, you can see more sharp, detailed visuals of the pipe interiors than ever before on the 10.1'' IPS monitor(brightness & color of the screen won't change when view from any angle)

BUILT-IN MICROPHONE & DVR RECORDER & LONG LAST BATTERY

Pipe camera with locator equips with integrated DVR function & built-in microphone. Whenever you are working on a project, you can record video with your voice onto the 16GB TF card(Included, support up to 128GB) and transfer the files onto a computer to share with your clients or for future further analysis. Its rechargeable Li-ion battery with up to 8 hours running time, ensuring comprehensive inspections without frequent recharging

Item: parameter

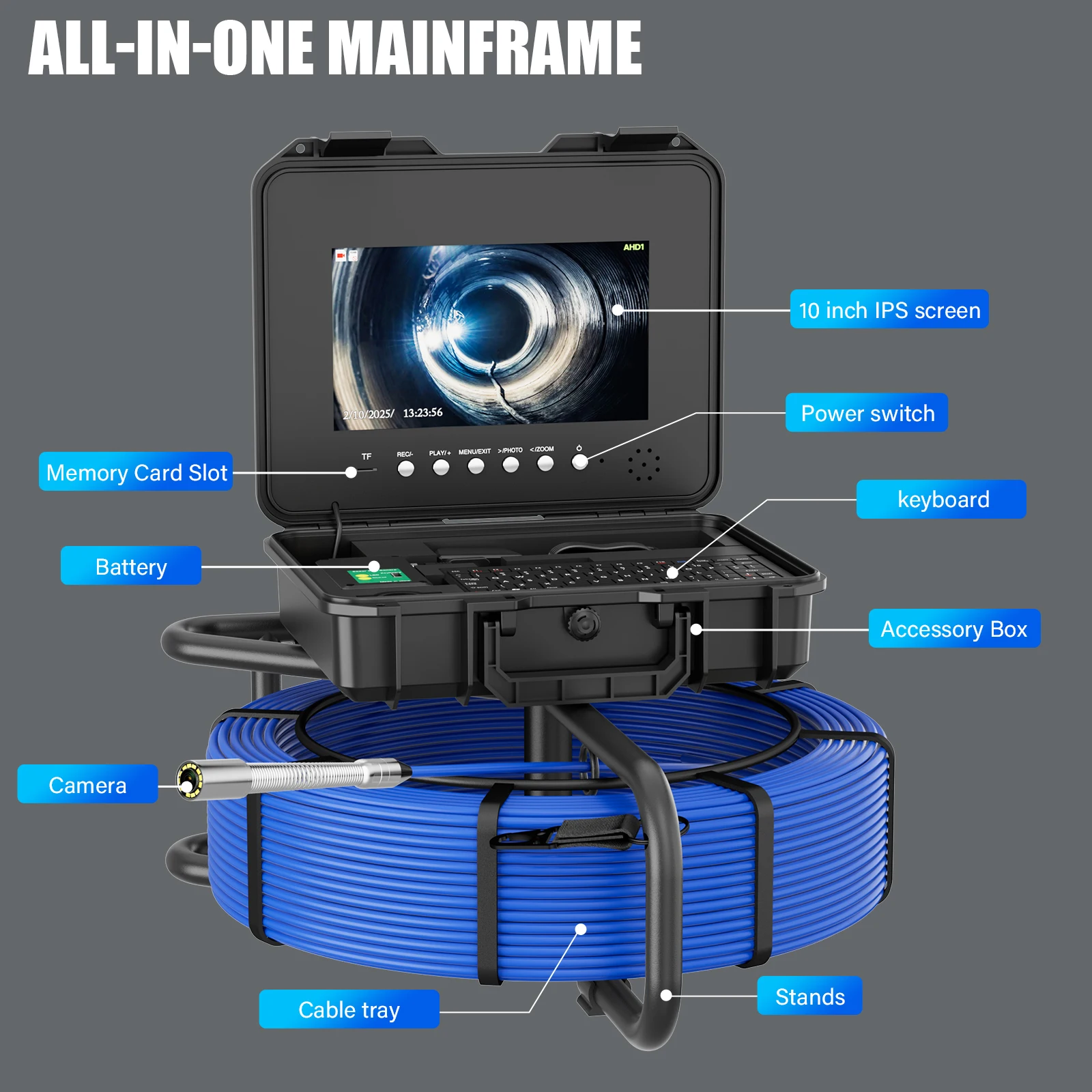

1. Monitor:10.1 inch IPS color record monitor
2. Function:Video record/audio/photo/electronic zoom/power display/ meter counter/keyboard input (support English)
3. TF Card: Memory Support maximum 128G TF card(16G TF card included)
4. 512hz:Built in 512hz transmitter
5. Camera :Auto Self Leveling AHD 1080P
6. Camera : AHD 1080P
7. Quick photo: press the  key to zoom the image from 0 to 5 times.
9. Charger: AC100-240V DC12.6V
10. Battery: Luminal-cell arrester 4.5AH
11. Continuous use time for battery: approximate 8h
12. Investigation depth: 30M( optional line length)
13. Material: fiber tube with /high intensity
14. Camera light source: 12 PCS LED with high while light(adjustable)
15. Camera viewing angle: 145°
16. Lens Mirror Material : Sapphire
17. Camera size/material: 23MM* 40MM /stainless steel
18. Camera protective cover parts size/material:38MM* 28MM /plastic-steel
19. Camera protective cover parts size/material:90MM* 28MM /plastic-steel with wheel
20. Camera picture: color

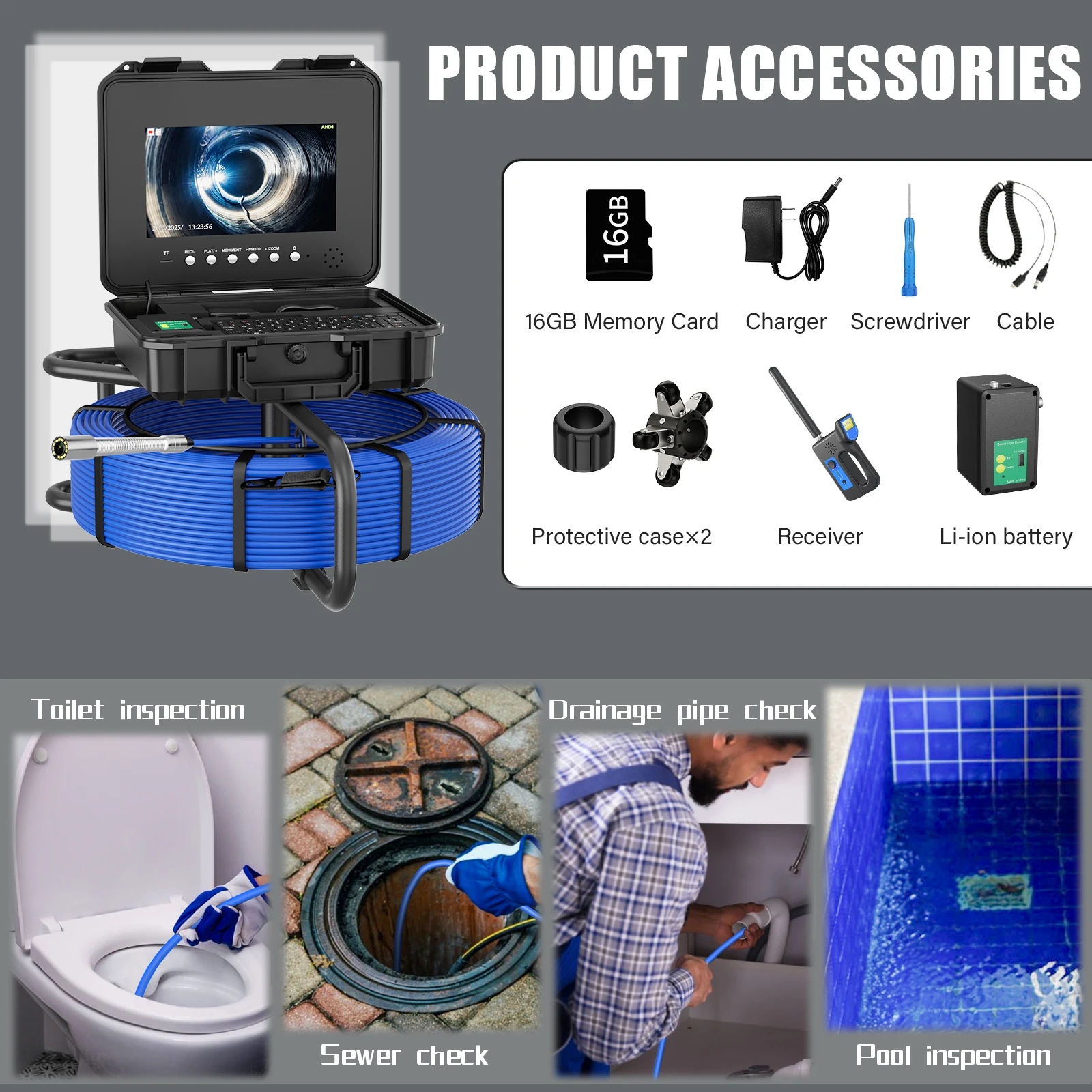

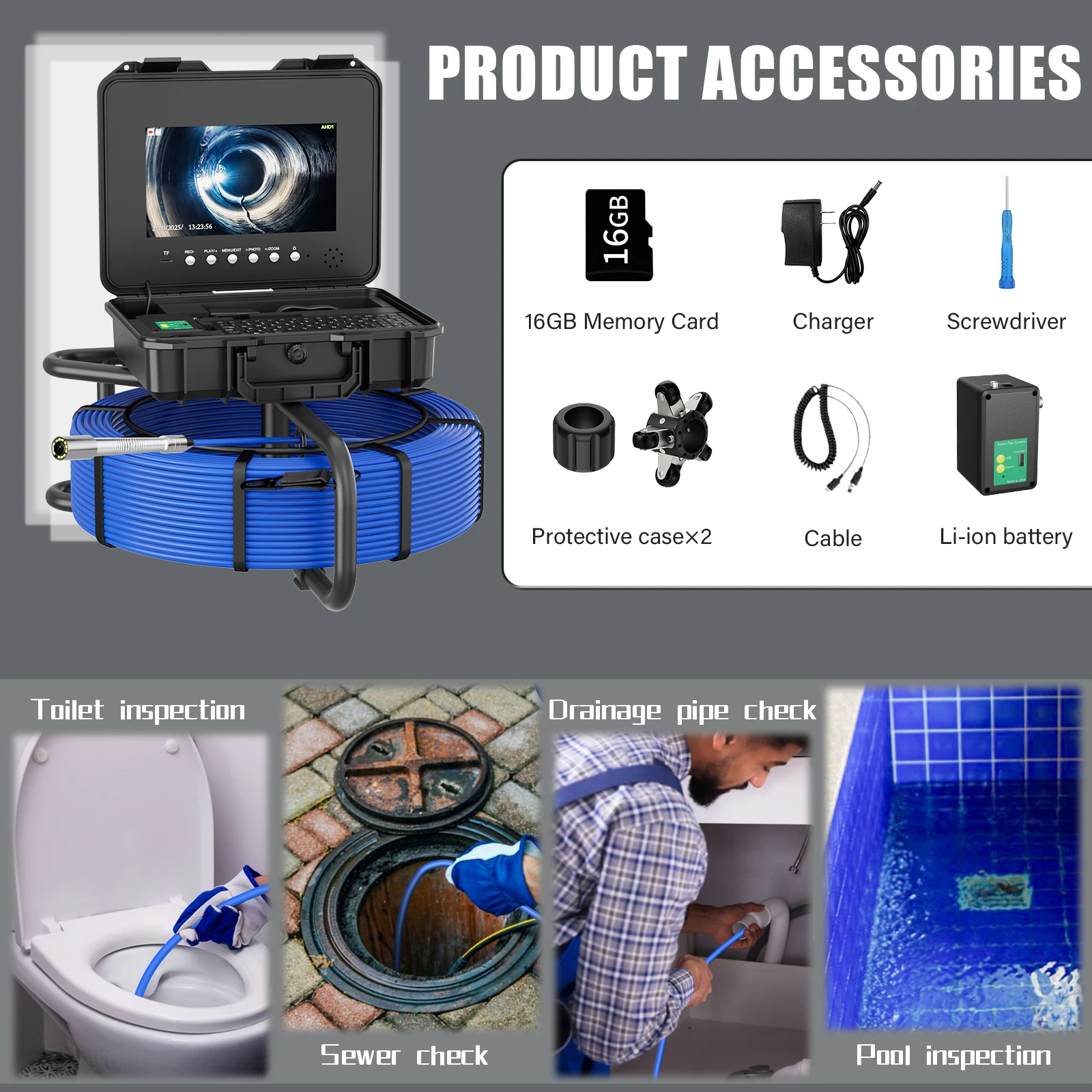

Package List:（NO Locator)

1 *10.1inch IPS Monitor（DVR)
1 * Keyboard
1 * Camera (Built in 512hz transmitter Auto Self Leveling )
1 * 16GB TF Card
1 * 20M-100M Optional (7MM Fiberglass Cable)
2 * Camera Proof Cover

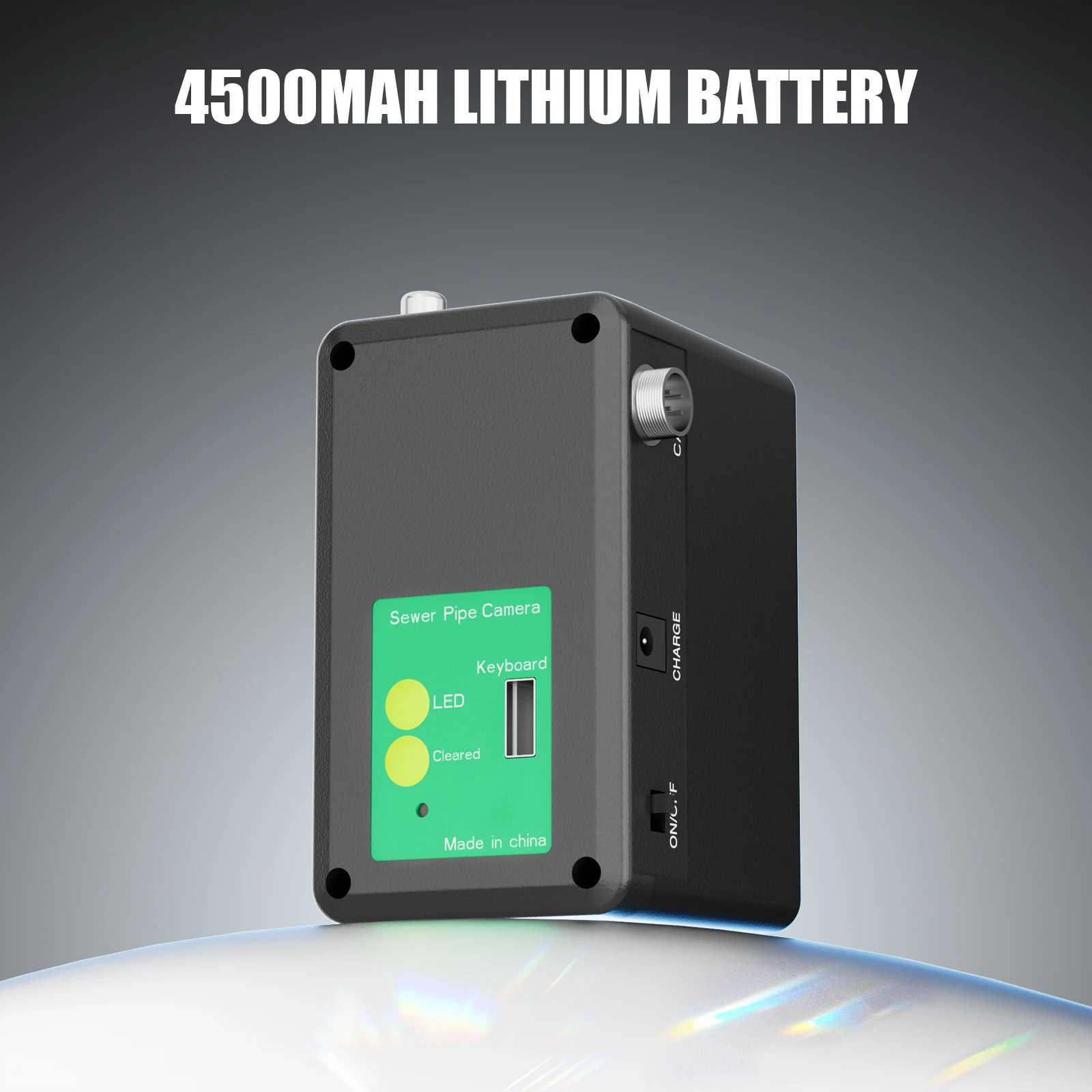

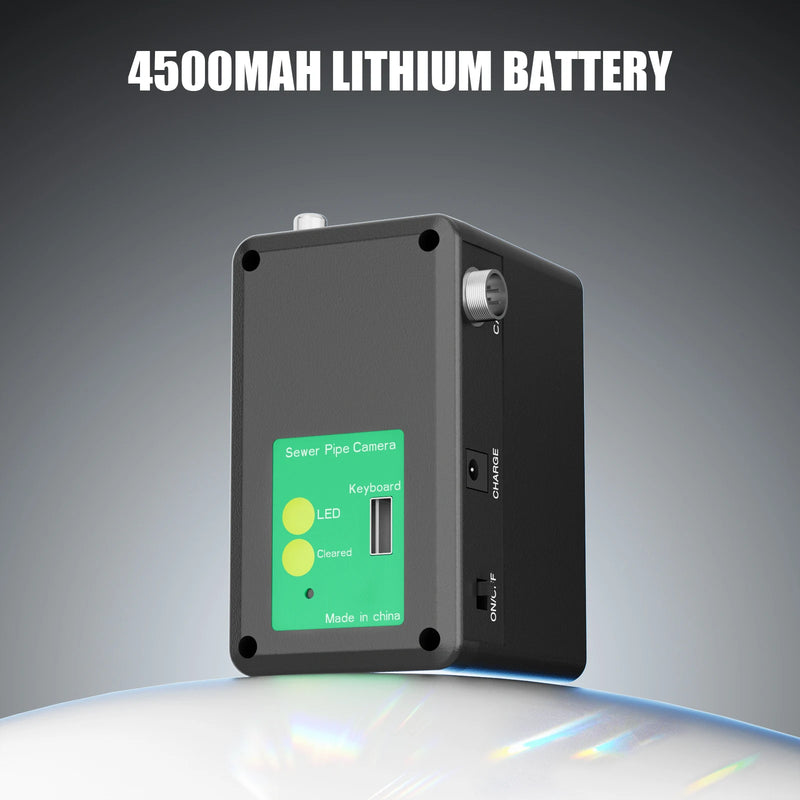

1 * 4500mah Battery Box
1 * Charger
1 * Connection Cable
1 * Screw Driver
1 * User Manual (English)

Package List:（With Locator)

1 *10.1inch IPS Monitor（DVR)
1 * Keyboard
1 * Camera (Built in 512hz transmitter Auto Self Leveling )
1 * 16GB TF Card
1 * 20M-100M Optional (7MM Fiberglass Cable)
2 * Camera Proof Cover
1 * 4500mah Battery Box
1 * Charger
1 * Connection Cable
1 * Screw Driver
1 * User Manual (English)
1 * 512Hz Locator
